2106-5201

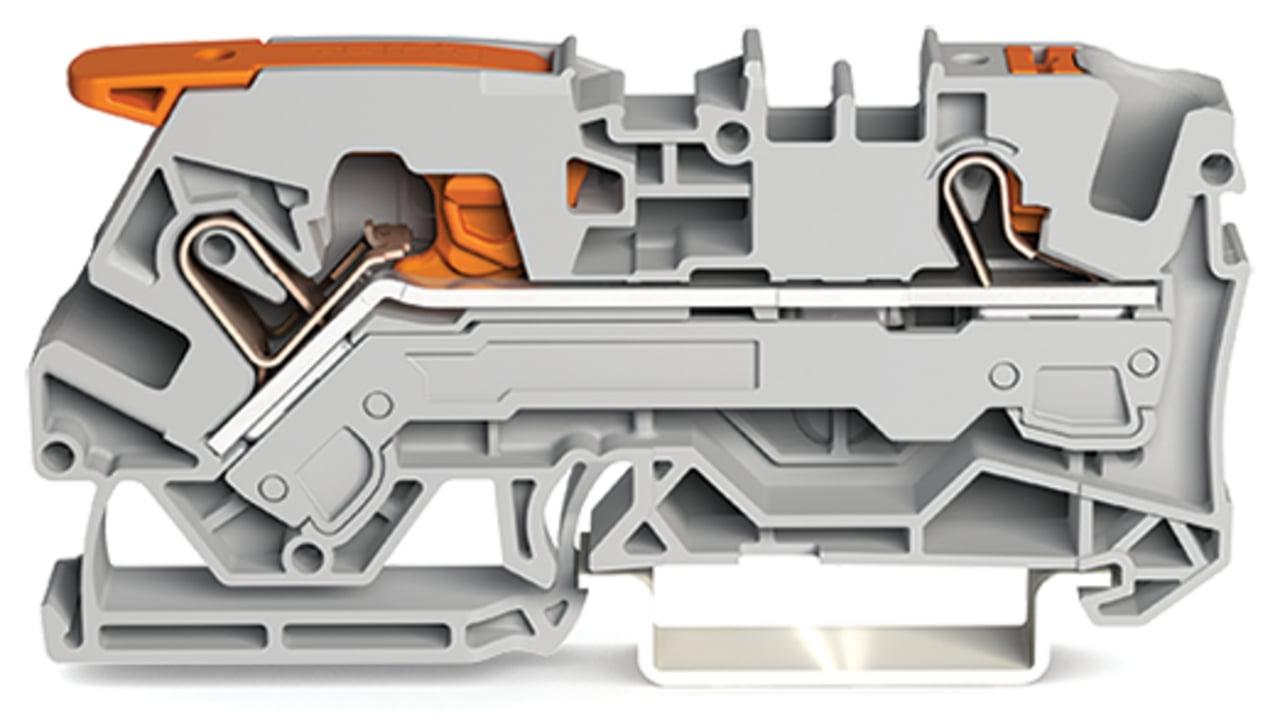

WAGO 2106-5201 TOPJOB S feedthrough terminal block with Lever and Push-button
Part Number # 2106-5201
SKU # 2380590
Wago 2106-5201 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2106-5201 |
| SKU #: | 2380590 |
| Amperage Rating: | 41 A |
| Dimensions: | 2.945 in H x 0.295 in W x 1.295 in D |
| Series: | 2106 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Terminal Type: | Through |
| Type: | 2-Conductor |
| Wire Size: | 20 to 8 AWG |
| Actuation type: | Push-in || Lever |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 74.8 mm / 2.945 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 6 mm² |
| Rated current: | 41 A |
| Solid conductor: | 0.5 … 10 mm² / 20 … 8 AWG |
| Total number of connection points: | 2 |
| Weight: | 14.200 g |
| Width: | 7.5 mm / 0.295 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143742450 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2106-5201 TOPJOB S feedthrough terminal block with Lever and Push-button
Brand: Wago
Part Number: 2106-5201
Additional Description: WAGO-2106-5201 2-CONDUCTOR THROUGH TERMINAL BLOCK; WITH LEVER AND PUSH-BUTTON; 6 MM; WITH TEST PORT; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 6,00 MM; GRAY 60367564 MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 6,00 MM ; GRAY
Catalog Description: 2-conductor through terminal block; with lever and push-button; 6 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm²; gray
2106-5201 Standards
RoHS Compliant|UL94SKU #2380590Part Number #2106-5201UNSPSC39121410UPC04055143742450
