Part Number # 2116-5207
SKU # 2374178
Image Disclaimers Message
Brand: Wago
2116-5207
WAGO 2116-5207 TOPJOB S ground terminal block with Lever and Push-button
Part Number # 2116-5207
SKU # 2374178
$13.14 / Each
Typical price:$14.24 / Each
Wago 2116-5207 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2116-5207 |
| SKU #: | 2374178 |

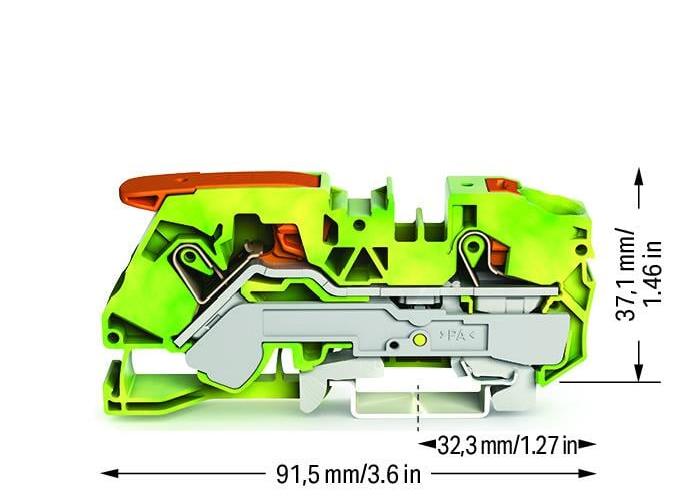

| Dimensions: | 3.602 in H x 0.472 in W x 1.461 in D |
| Number of Poles: | 1 |
| Type: | Lever |
| Wire Size: | 20 to 6 AWG |
| Actuation type: | Push-in || Lever |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 91.5 mm / 3.602 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 16 mm² |
| Solid conductor: | 0.5 … 16 mm² / 20 … 6 AWG |
| Total number of connection points: | 2 |
| Weight: | 40.159 g |
| Width: | 12 mm / 0.472 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143754453 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$13.14 / Each
Typical price:$14.24 / Each
Quantity:
WAGO 2116-5207 TOPJOB S ground terminal block with Lever and Push-button
Brand: Wago
Part Number: 2116-5207
Additional Description: WAGO-2116-5207 2-CONDUCTOR GROUND TERMINAL BLOCK; 16 MM ; WITH TEST PORT; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 16,00 MM ; GREEN-YELLOW 60370801
Catalog Description: 2-conductor ground terminal block; with lever and push-button; 16 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 16,00 mm²; green-yellow
2116-5207 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2374178Part Number #2116-5207UNSPSC39121410UPC04055143754453
