Part Number # 218-505
SKU # 2350227
Image Disclaimers Message
218-505

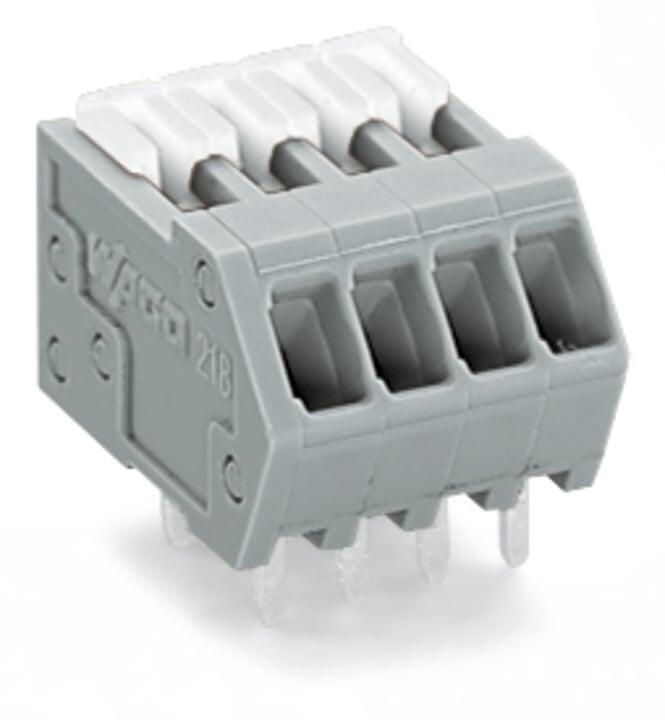

WAGO 218-505 PCB terminal block
Part Number # 218-505
SKU # 2350227
$3.72 / Each
Typical price:$4.03 / Each
Wago 218-505 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 218-505 |
| SKU #: | 2350227 |
| Amperage Rating: | 6 A |
| Dimensions: | 0.429 in H x 0.559 in W x 0.512 in D |
| Number of Poles: | 5 |
| Spacing: | 0.1 in |
| Type: | Push Button |
| Wire Size: | 28 to 20 AWG |
| Actuation type: | Slider |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | PL |
| Depth: | 13 mm / 0.512 inch |
| Height: | 10.9 mm / 0.429 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | Feed Through, Through-Hole |
| Number of connection types: | 1 |
| Rated current: | 0.25 |
| Solid conductor: | 0.08 … 0.5 mm² / 28 … 20 AWG |
| Total number of connection points: | 5 |
| Weight: | 1.695 g |
| Width: | 14.2 mm / 0.559 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04044918878340 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.72 / Each
Typical price:$4.03 / Each
Quantity:
- WAGO, 218-505, PCB Terminal Block, Push Button, 320 V, 6 A, 5 Pole, 28 to 20 AWG Wire, 0.31 to 0.24 in Wire Strip Length, 0.1 in Spacing, Through-Hole Mounting, Clamp Connection, Polyamide, Gray, 0.429 in H x 0.559 in W x 0.512 in D Dimensions
218-505 Item Features
- Terminal strips are just 8.1 mm tall and feature an innovative, locking slide-actuated CAGE CLAMP
- Several clamping units can be held open simultaneously
- Easily terminate stranded conductors in tight spaces
218-505 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2350227Part Number #218-505UNSPSC39121469UPC04044918878340
