Part Number # 2200-1301
SKU # 2355172
Image Disclaimers Message
Brand: Wago
2200-1301
WAGO 2200-1301 TOPJOB S feedthrough terminal block with Push-buttons
Part Number # 2200-1301
SKU # 2355172
$1.64 / Each
Typical price:$1.78 / Each
Wago 2200-1301 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2200-1301 |
| SKU #: | 2355172 |
| Amperage Rating: | 13.5 A |

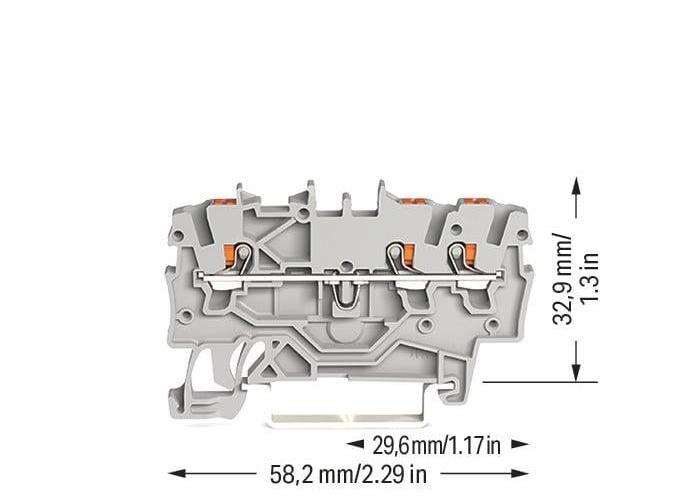

| Dimensions: | 2.291 in H x 0.138 in W x 1.555 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 24 to 16 AWG |
| Actuation type: | Push-in || Push-button || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 58.2 mm / 2.291 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 1 mm² |
| Rated current: | 13.5 A |
| Solid conductor: | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Total number of connection points: | 3 |
| Weight: | 4.166 g |
| Width: | 3.5 mm / 0.138 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143691611 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1.64 / Each
Typical price:$1.78 / Each
Quantity:
- WAGO, 2200-1301, Conductor Terminal Block, Operating Tool, 800 V, 13.5 A, 1 Pole, 24 to 16 AWG Wire, 0.35 to 0.43 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Gray, 2.291 in H x 0.138 in W x 1.555 in D Dimensions
2200-1301 Standards
CSA 22.2 No 158|ATEX: PTB 18 ATEX 1004 U / IECEx: PTB 18.0010U (Ex eb IIC Gb)|RoHS CompliantSKU #2355172Part Number #2200-1301UNSPSC39121410UPC04055143691611
