Part Number # 2200-1407
SKU # 2384361
Image Disclaimers Message
2200-1407

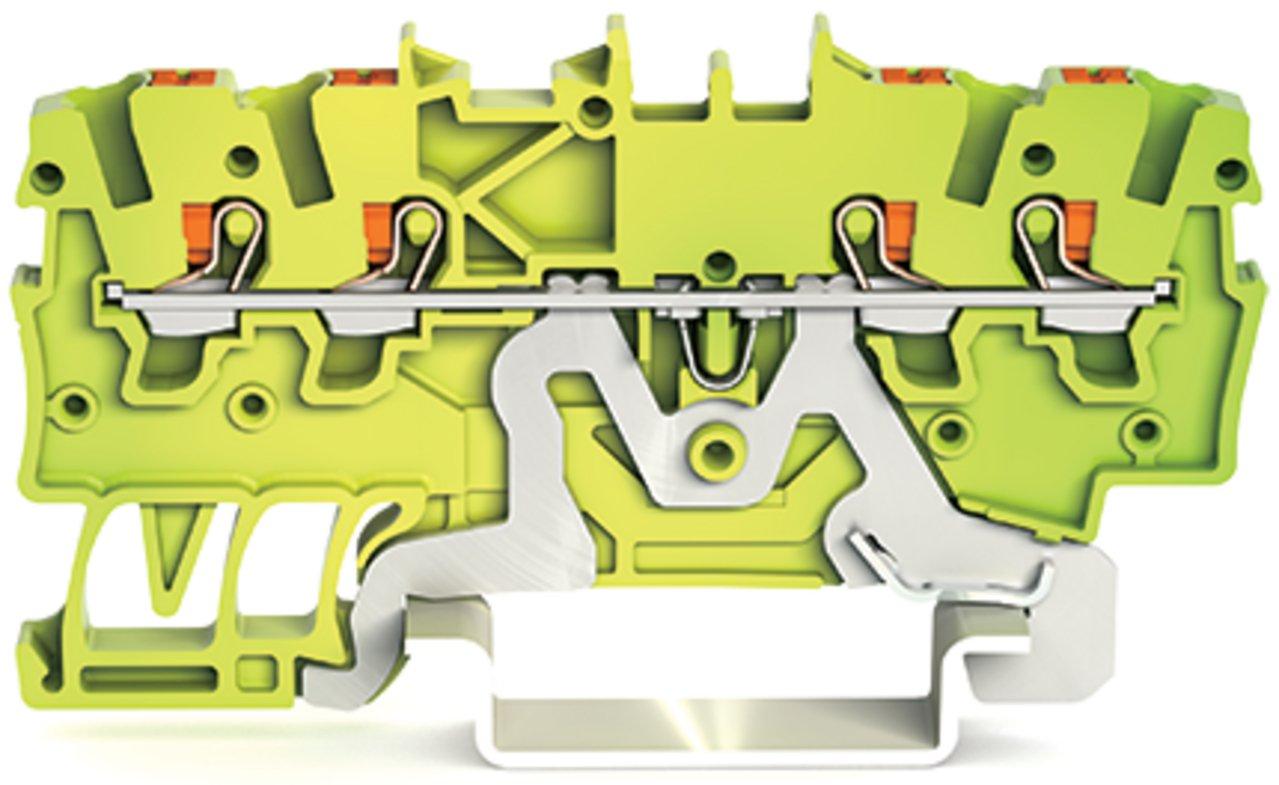

WAGO 2200-1407 TOPJOB S ground terminal block with Push-buttons
Part Number # 2200-1407
SKU # 2384361
$5.96 / Each
Typical price:$6.46 / Each
Wago 2200-1407 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2200-1407 |
| SKU #: | 2384361 |
| Series: | 2200 |
| Suitable For Use With: | Terminal Block |
| Type: | 4-Conductor |
| Actuation type: | Push-in || Push-button || Operating tool |
| Color: | Green-yellow |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 67.9 mm / 2.673 inch |
| Height: | 2.67 in |
| Insulation material: | Polyamide (PA66) |
| Length: | 1.29 in |
| Material: | Polyamide |
| Mounting type: | DIN-35 rail |
| Nominal cross-section: | 1 mm² |
| Solid conductor: | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Total number of connection points: | 4 |
| Weight: | 7.586 g |
| Width: | 0.13 in, 3.5 mm / 0.138 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143692014 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.96 / Each
Typical price:$6.46 / Each
Quantity:
WAGO 2200-1407 TOPJOB S ground terminal block with Push-buttons
Brand: Wago
Part Number: 2200-1407
Additional Description: WAGO-2200-1407 4-CONDUCTOR GROUND TERMINAL BLOCK; 1 MM; WITH TEST PORT; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 1,00 MM; GREEN-YELLOW 60357565 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 1,00 MM; GREEN-YELLOW
Catalog Description: 4-conductor ground terminal block; with push-button; 1 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,00 mm²; green-yellow
2200-1407 Standards
RoHS CompliantSKU #2384361Part Number #2200-1407UNSPSC39121410UPC04055143692014
