2201-1407

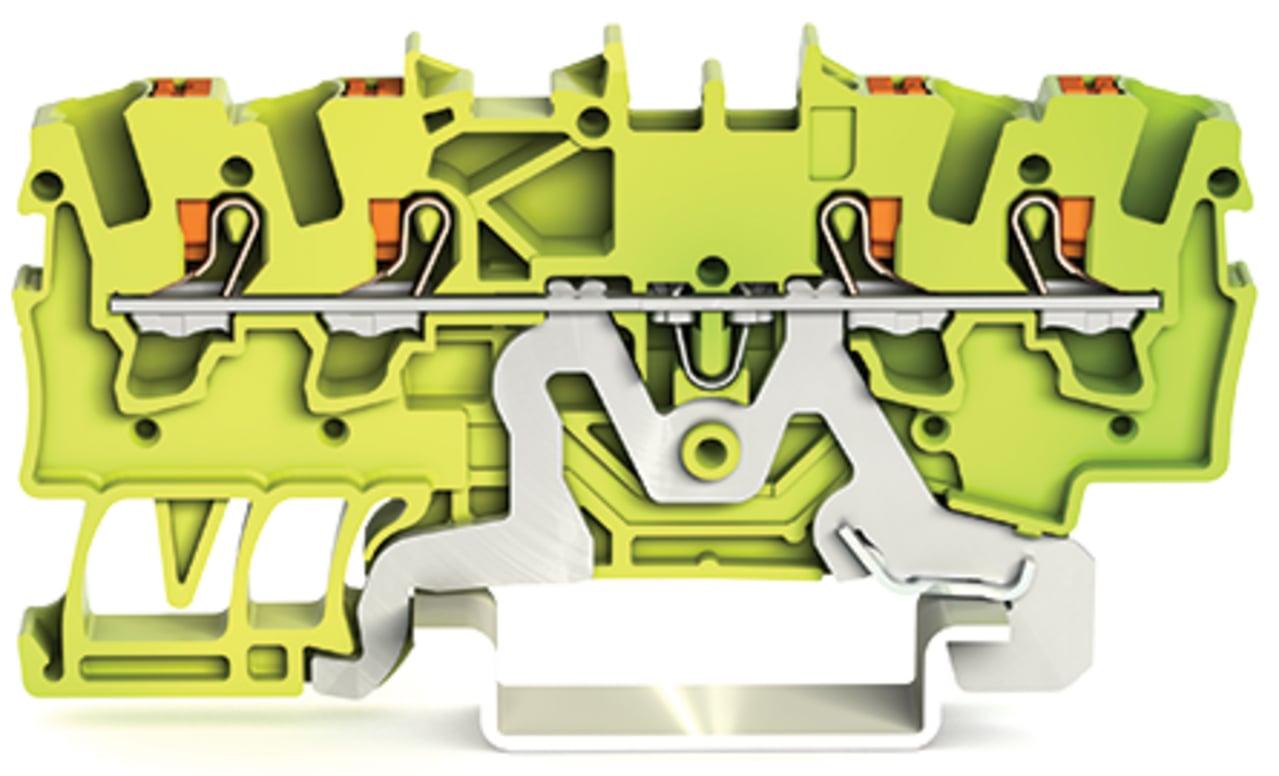

WAGO 2201-1407 TOPJOB S ground terminal block with Push-buttons
Part Number # 2201-1407
SKU # 2369653
Wago 2201-1407 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2201-1407 |
| SKU #: | 2369653 |
| Series: | 2201 |
| Suitable For Use With: | Terminal Block |
| Type: | 4-Conductor |
| Actuation type: | Push-in || Push-button || Operating tool |
| Color: | Green-yellow |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 69.9 mm / 2.752 inch |
| Height: | 2.75 in |
| Insulation material: | Polyamide (PA66) |
| Length: | 1.29 in |
| Material: | Polyamide |
| Mounting type: | DIN-35 rail |
| Nominal cross-section: | 1.5 mm² |
| Solid conductor: | 0.25 … 2.5 mm² / 22 … 14 AWG |
| Total number of connection points: | 4 |
| Weight: | 9.021 g |
| Width: | 0.16 in, 4.2 mm / 0.165 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143695183 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2201-1407 TOPJOB S ground terminal block with Push-buttons
Brand: Wago
Part Number: 2201-1407
Additional Description: WAGO-2201-1407 4-CONDUCTOR GROUND TERMINAL BLOCK; WITH PUSH-BUTTON; 1.5 MM; WITH TEST PORT; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 1,50 MM; GREEN-YELLOW 60358677 WITH PUSH-BUTTON; 1.5 MM ; WITH TEST PORT; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 1,50 MM ; GREEN-YELLOW 60358677
Catalog Description: 4-conductor ground terminal block; with push-button; 1.5 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; green-yellow
2201-1407 Standards
RoHS CompliantSKU #2369653Part Number #2201-1407UNSPSC39121410UPC04055143695183
