Part Number # 2202-1203
SKU # 2412917
Brand: Wago
2202-1203

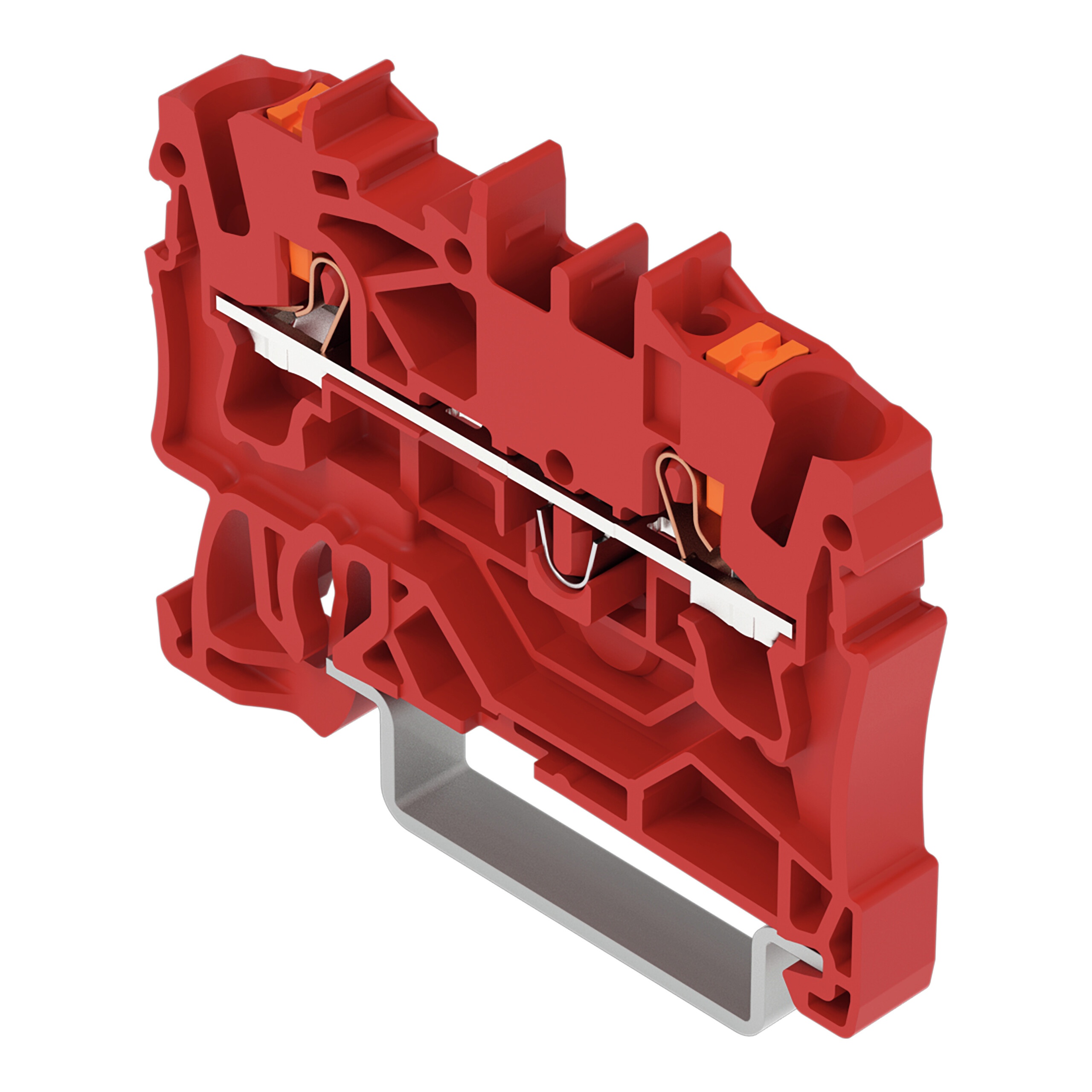

WAGO 2202-1203 2202 2-Conductor Terminal Block
Part Number # 2202-1203
SKU # 2412917
$1.84 / Each
Typical price:$1.99 / Each
Wago 2202-1203 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2202-1203 |
| SKU #: | 2412917 |
| Amperage Rating: | 24 A |
| Dimensions: | 1.909 in H x 0.205 in W x 1.295 in D |
| Series: | 2202 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Terminal Type: | Through |
| Type: | 2-Conductor |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Push-In |
| Country of origin: | DE |
| Material: | Polyamide 6.6 |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143822091 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1.84 / Each
Typical price:$1.99 / Each
Quantity:
WAGO 2202-1203 2202 2-Conductor Terminal Block
Brand: Wago
Part Number: 2202-1203
Additional Description: WAGO-2202-1203 2-CONDUCTOR THROUGH TERMINAL BLOCK; WITH PUSH-BUTTON; 2.5 MM; WITH TEST PORT; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 2,50 MM; RED 60388916
Catalog Description: 2-conductor through terminal block; with push-button; 2.5 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; red
2202-1203 Standards
RoHS CompliantSKU #2412917Part Number #2202-1203UNSPSC39121410UPC04055143822091
Image provided may only be a representation of final product and may include optional equipment
