Part Number # 2202-1204
SKU # 2361880
Image Disclaimers Message
2202-1204

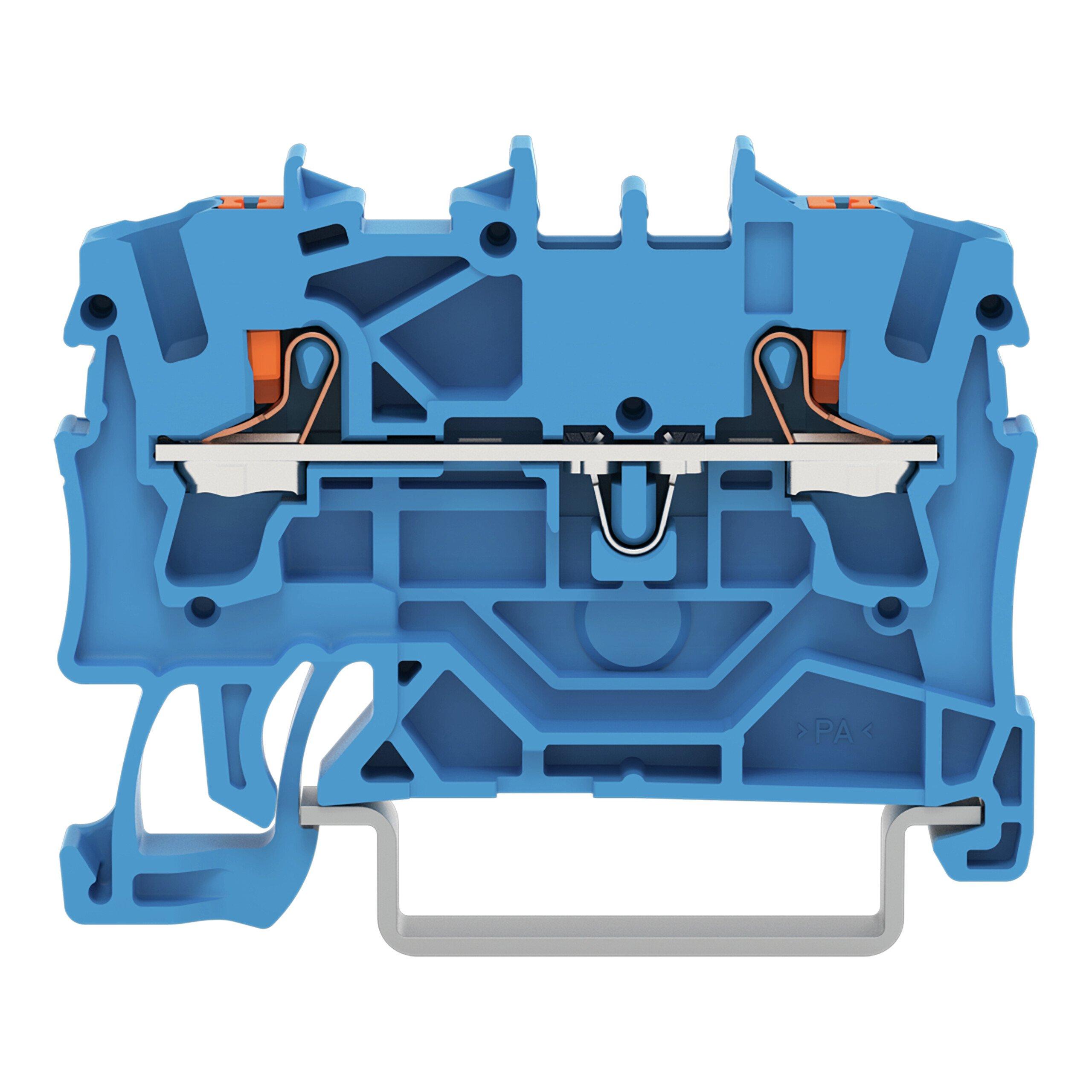

WAGO 2202-1204 TOPJOB S feedthrough terminal block with Push-buttons
Part Number # 2202-1204
SKU # 2361880
Wago 2202-1204 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2202-1204 |
| SKU #: | 2361880 |
| Series: | 2202 |
| Suitable For Use With: | Terminal Block |
| Type: | 2-Conductor |
| Actuation type: | Push-in || Push-button || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Blue |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 48.5 mm / 1.909 inch |
| Height: | 1.90 in |
| Insulation material: | Polyamide (PA66) |
| Length: | 1.29 in |
| Material: | Polyamide |
| Mounting type: | DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 5.350 g |
| Width: | 0.20 in, 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143713566 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2202-1204 TOPJOB S feedthrough terminal block with Push-buttons
Brand: Wago
Part Number: 2202-1204
Additional Description: WAGO-2202-1204 2-CONDUCTOR THROUGH TERMINAL BLOCK; WITH PUSH-BUTTON; 2.5 MM; WITH TEST PORT; SUITABLE FOR EX I APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 2,50 MM; BLUE 60361528 WITH PUSH-BUTTON; 2.5 MM ; WITH TEST PORT; SUITABLE FOR EX I APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 2,50 MM ; BLUE W/PUSHBUTTONS 22021201 BLUE
Catalog Description: 2-conductor through terminal block; with push-button; 2.5 mm²; with test port; suitable for Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; blue
2202-1204 Application
Suitable for Ex i applications2202-1204 Standards
IEC 60947|UL 60079|IEC 60079|CNCA-C23-01|TP TC 012/2011|RoHS CompliantSKU #2361880Part Number #2202-1204UNSPSC39121410UPC04055143713566
