Part Number # 2202-1209
SKU # 2400622
2202-1209
WAGO 2202-1209 Terminal Blocks
Part Number # 2202-1209
SKU # 2400622
Wago 2202-1209 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2202-1209 |
| SKU #: | 2400622 |
| Amperage Rating: | 24 A |
| Dimensions: | 1.909 in H x 0.205 in W x 1.555 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Clamp |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143999632 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2202-1209 Terminal Blocks
Brand: Wago
Part Number: 2202-1209
Additional Description: WAGO-2202-1209 2-CONDUCTOR THROUGH TERMINAL BLOCK; 60434115 TEST PORT; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 2,50 MM ; LIGHT GRAY
Catalog Description: 2-conductor through terminal block; with push-button; 2.5 mm²; with test port; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; light gray
2202-1209 Application
Suitable for Ex e II applications2202-1209 Standards
CSA 22.2 No 158|ATEX: PTB 18 ATEX 1005 U / IECEx: PTB 18.0012U (Ex eb IIC Gb)|RoHS CompliantSKU #2400622Part Number #2202-1209UNSPSC39121410UPC04055143999632

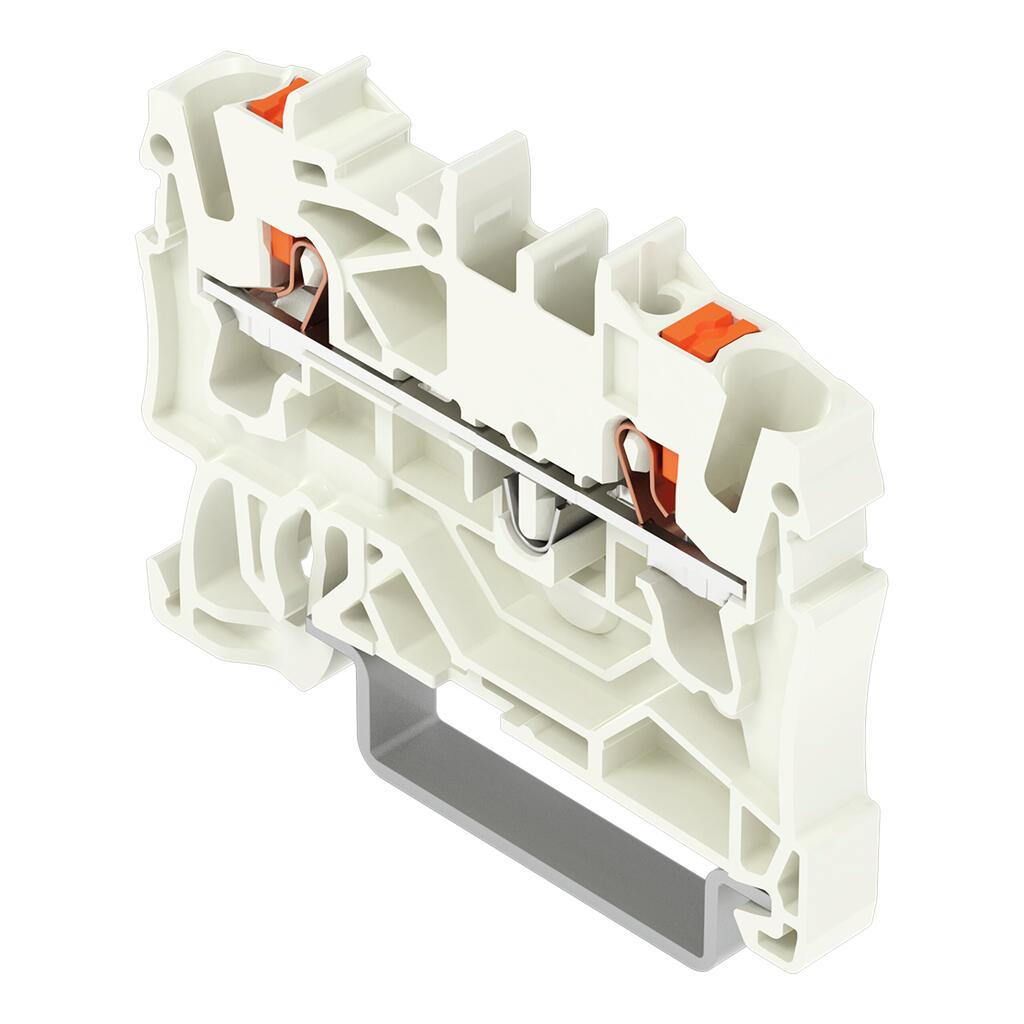

Image provided may only be a representation of final product and may include optional equipment
