Brand: Wago
2202-1302

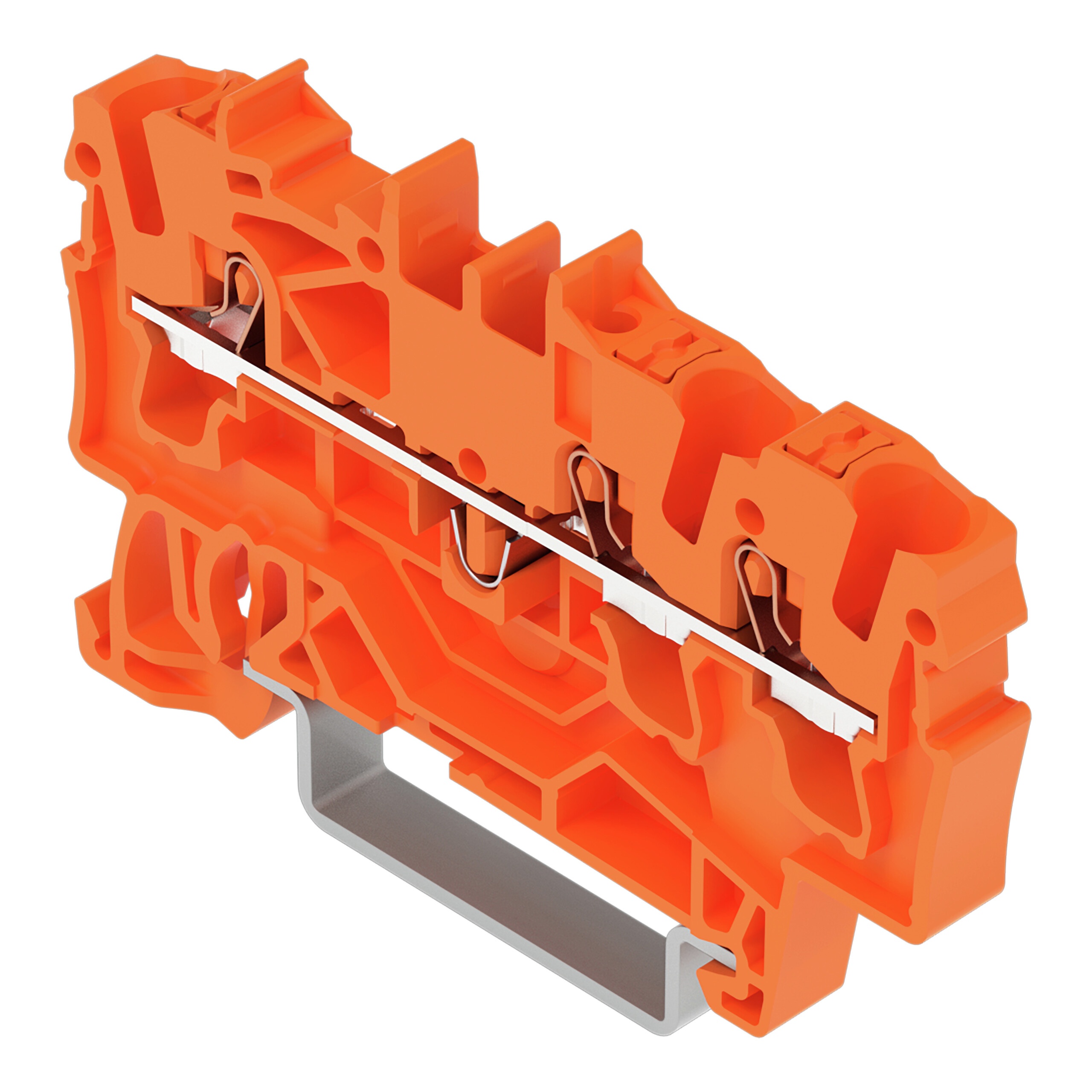

WAGO 2202-1302 3-conductor through terminal block
Part Number # 2202-1302
SKU # 2381649
$2.19 / Each
Typical price:$2.37 / Each
Wago 2202-1302 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2202-1302 |
| SKU #: | 2381649 |
| Series: | 2202 |
| Suitable For Use With: | Terminal Block |
| Type: | 3-Conductor |
| Actuation type: | Push-in || Push-button || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Orange |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Height: | 2.33 in |
| Insulation material: | Polyamide (PA66) |
| Length: | 1.29 in |
| Material: | Polyamide |
| Mounting type: | DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Weight: | 6.448 g |
| Width: | 0.20 in, 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143999625 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.19 / Each
Typical price:$2.37 / Each
Quantity:
WAGO 2202-1302 3-conductor through terminal block
Brand: Wago
Part Number: 2202-1302
Additional Description: WAGO-2202-1302 3-CONDUCTOR THROUGH TERMINAL BLOCK; WITH PUSH-BUTTON; 2.5 MM ; WITH TEST PORT; for Ex e II and Ex i applications; side and center marking FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 2,50 MM ;ORANGE
Catalog Description: 3-conductor through terminal block; with push-button; 2.5 mm²; with test port; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; orange
2202-1302 Application
For Ex e II and Ex i applications2202-1302 Standards
IEC 60947|UL 60079|IEC 60079|CNCA-C23-01|RoHS CompliantSKU #2381649Part Number #2202-1302UNSPSC39121410UPC04055143999625
