Part Number # 2202-1305
SKU # 2381648
Image Disclaimers Message
2202-1305

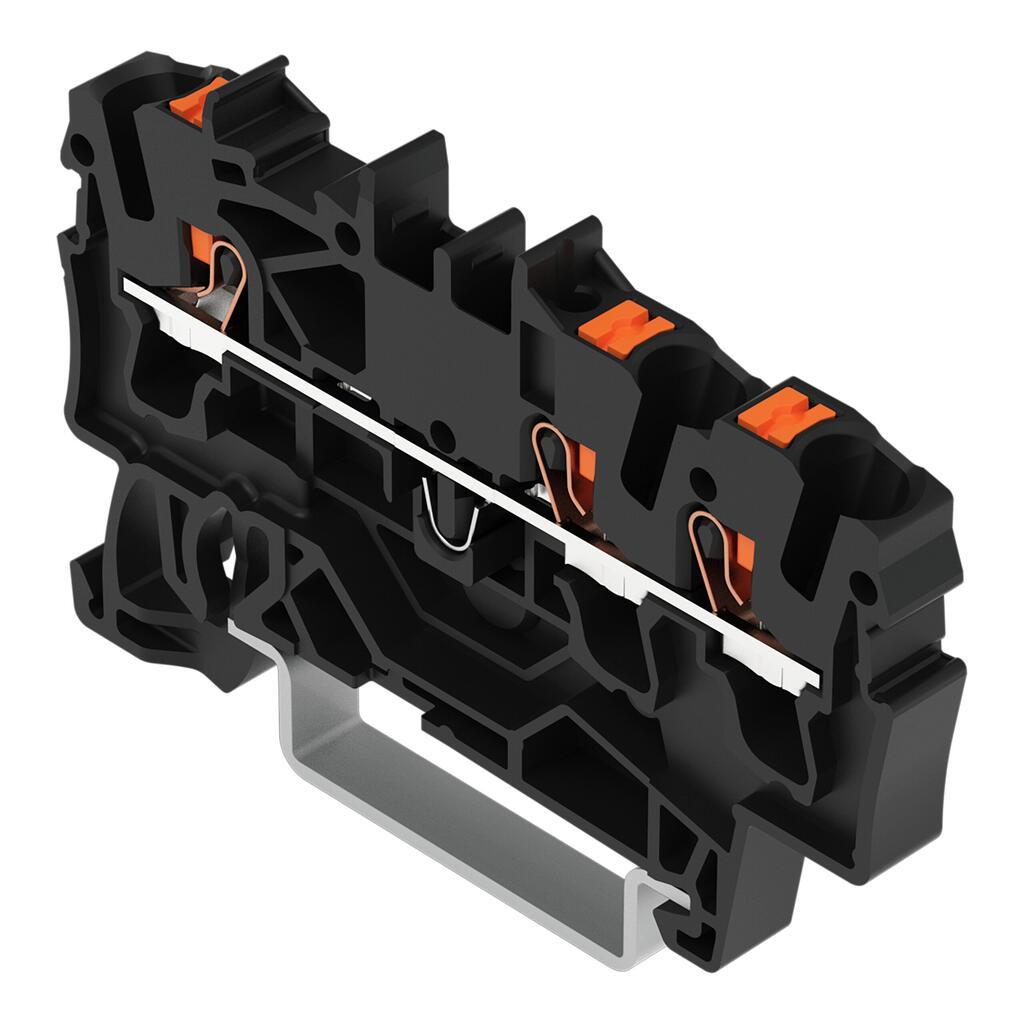

WAGO 2202-1305 3-conductor through terminal block
Part Number # 2202-1305
SKU # 2381648
$2.19 / Each
Typical price:$2.37 / Each
Wago 2202-1305 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2202-1305 |
| SKU #: | 2381648 |
| Amperage Rating: | 24 A |
| Dimensions: | 2.33 in H x 0.205 in W x 1.555 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Push-button || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Black |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Rated current: | 24 A |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Weight: | 6.448 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143999717 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.19 / Each
Typical price:$2.37 / Each
Quantity:
- WAGO, 2202-1305, Conductor Terminal Block, Operating Tool, 800 V, 24 A, 1 Pole, 22 to 12 AWG Wire, 0.39 to 0.47 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Black, 2.33 in H x 0.205 in W x 1.555 in D Dimensions
2202-1305 Standards
CSA 22.2 No 158|ATEX: PTB 18 ATEX 1005 U / IECEx: PTB 18.0012U (Ex eb IIC Gb)|RoHS CompliantSKU #2381648Part Number #2202-1305UNSPSC39121410UPC04055143999717
