2202-1307

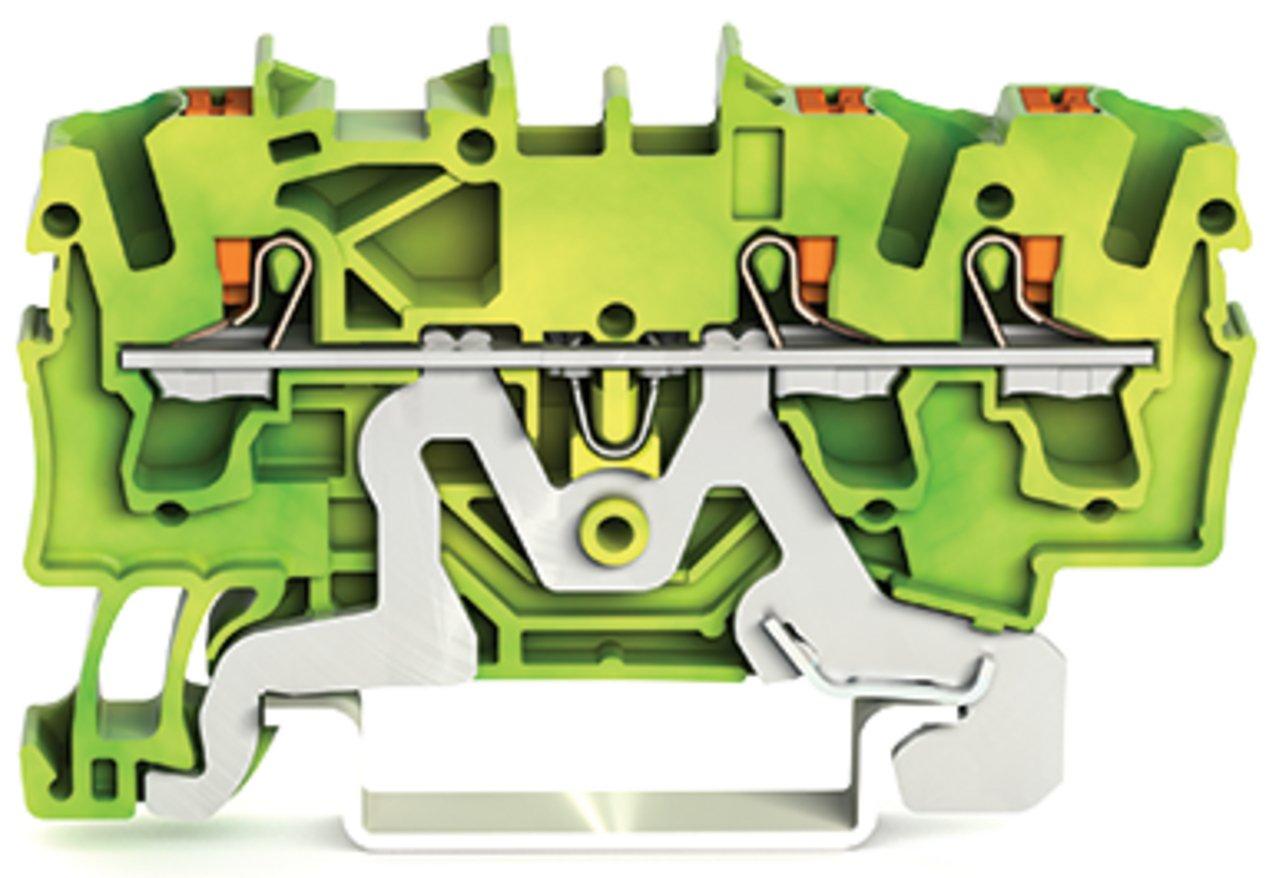

WAGO 2202-1307 TOPJOB S ground terminal block with Push-buttons
Part Number # 2202-1307
SKU # 2379249
Wago 2202-1307 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2202-1307 |
| SKU #: | 2379249 |
| Dimensions: | 2.33 in H x 0.205 in W x 1.295 in D |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Terminal Type: | Push-In Spring |
| Wire Size: | 22 to 12 AWG |
| Actuation type: | Push-in || Push-button || Operating tool |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 59.2 mm / 2.33 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 |
| Mounting type: | DIN Rail, DIN-35 rail |
| Nominal cross-section: | 2.5 mm² |
| Solid conductor: | 0.25 … 4 mm² / 22 … 12 AWG |
| Total number of connection points: | 3 |
| Weight: | 9.308 g |
| Width: | 5.2 mm / 0.205 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143713856 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2202-1307 TOPJOB S ground terminal block with Push-buttons
Brand: Wago
Part Number: 2202-1307
Additional Description: WAGO-2202-1307 3-CONDUCTOR GROUND TERMINAL BLOCK; WITH PUSH-BUTTON; 2.5 MM ; WITH TEST PORT; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 2,50 MM ; GREEN-YELLOW 60361532 FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 2,50 MM ; GREEN-YELLOW
Catalog Description: 3-conductor ground terminal block; with push-button; 2.5 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; green-yellow
2202-1307 Standards
RoHS CompliantSKU #2379249Part Number #2202-1307UNSPSC39121410UPC04055143713856
