Brand: Wago
WAGO 2202-1681 2-conductor fuse terminal block
Image Disclaimers Message
Brand: Wago

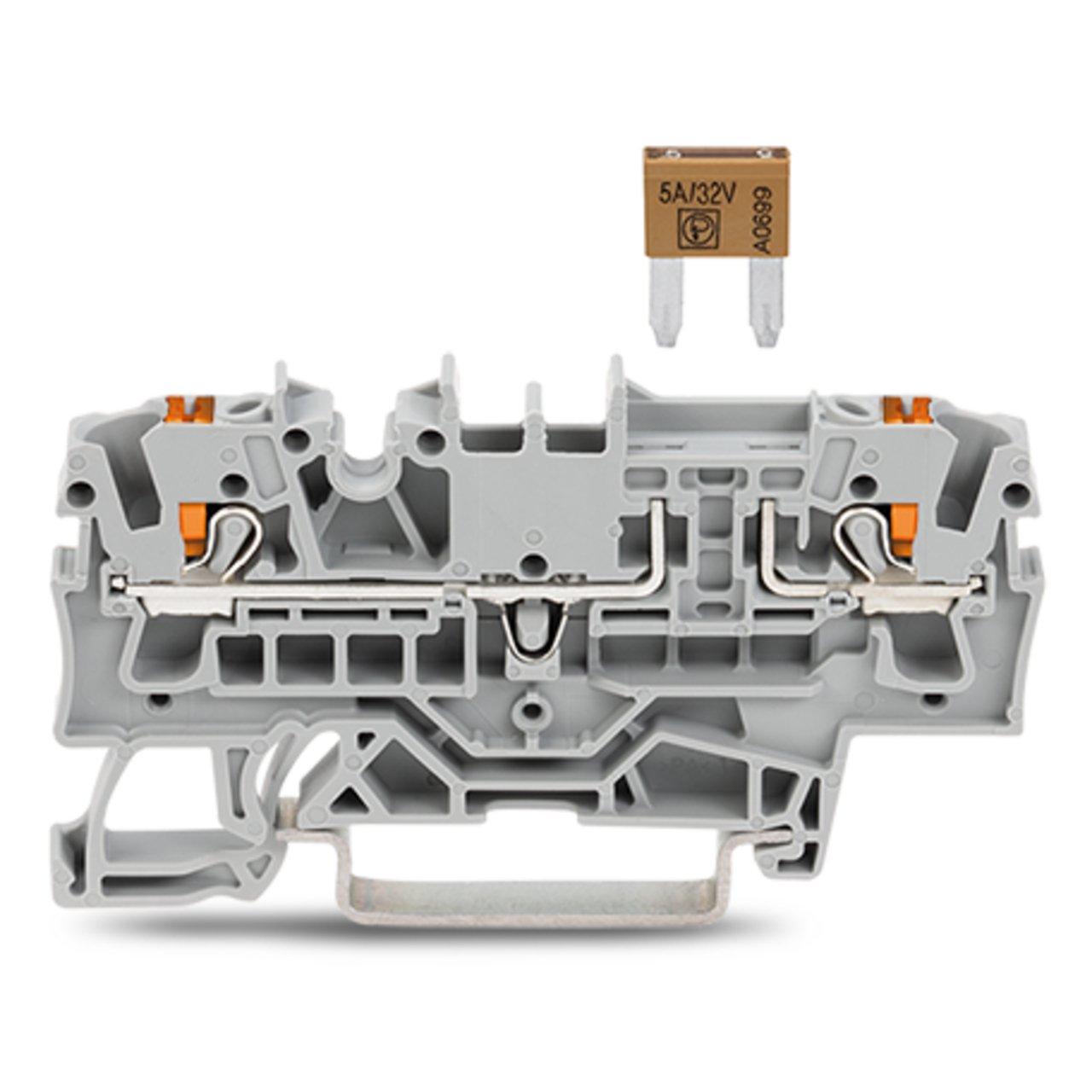

WAGO 2202-1681 2-conductor fuse terminal block
Brand: Wago
WAGO 2202-1681 2-conductor fuse terminal block
Part #:2202-1681
SKU #: 2395819
$6.77/EA
Key Features
Part #:2202-1681
SKU #: 2395819
Brand: Wago
Amperage Rating: 10 A
Dimensions: 2.602 in H x 0.205 in W x 1.295 in D
Temperature Rating (Degrees F): -60 to 105 deg C
Type: 2 Conductor
Voltage Rating: 400 V
$6.77/EA
Specifications
Brand: Wago
Amperage Rating: 10 A
Dimensions: 2.602 in H x 0.205 in W x 1.295 in D
Temperature Rating (Degrees F): -60 to 105 deg C
Type: 2 Conductor
Voltage Rating: 400 V
Wire Size: 22 to 12 AWG
Color: Gray
Connection type: Push-In
Country of origin: DE
Material: Polyamide 6.6
Mounting type: DIN Rail
Manufacturer Name: WAGO Corporation
UNSPSC: 39121410
UPC: 04055143907651
WAGO 2202-1681 2-conductor fuse terminal block
Additional Description: WAGO-2202-1681 2-CONDUCTOR FUSE TERMINAL BLOCK FOR MINI-AUTOMOTIVE BLADE-STYLE FUSES PER DIN 7258-3F, ISO 8820-3; GRAY, 50 PCS. 60411644 PER DIN 7258-3F, ISO 8820-3; GRAY, 50 PCS.
Catalog Description: 2-conductor fuse terminal block; for mini-automotive blade-style fuses; per DIN 7258-3f, ISO 8820-3; with test option; with push-button; without blown fuse indication; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
Item FeaturesRoHS Compliant|ISO 8820-3|CSA 22.2 No 158|IEC/EN 60947-7-3
