Part Number # 2202-1711
SKU # 2414819
2202-1711

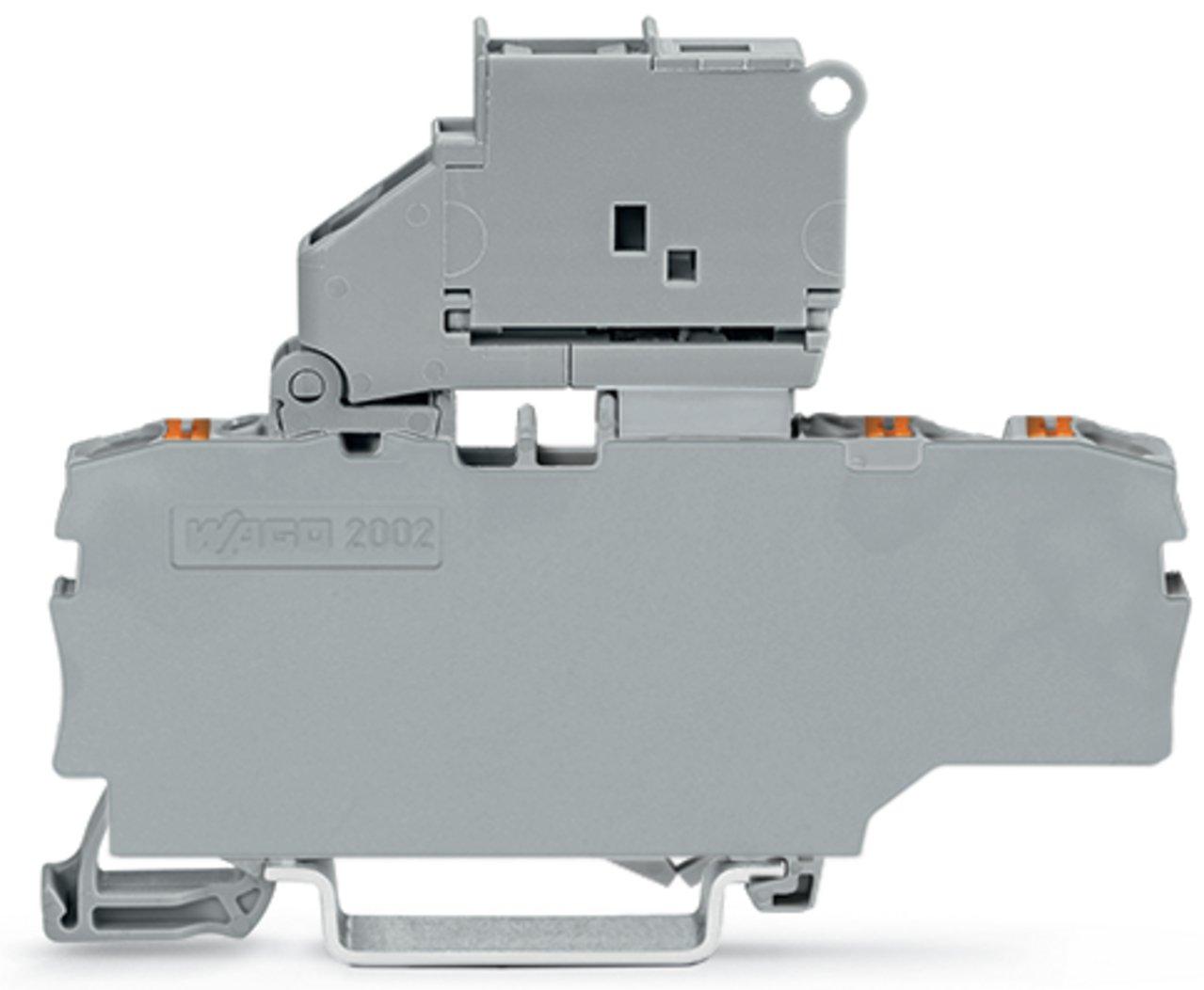

WAGO 2202-1711 2202 3-Conductor Fuse Terminal Block
Part Number # 2202-1711
SKU # 2414819
Wago 2202-1711 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2202-1711 |
| SKU #: | 2414819 |
| Amperage Rating: | 6.3 A |
| Dimensions: | 3.024 in H x 0.244 in W x 2.268 in D |
| Series: | 2202 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | 3-Conductor |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Clamp |
| Country of origin: | DE |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143955904 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2202-1711 2202 3-Conductor Fuse Terminal Block
Brand: Wago
Part Number: 2202-1711
Additional Description: WAGO-2202-1711 3-CONDUCTOR FUSE TERMINAL BLOCK; WITH PIVOTING FUSE HOLDER; AND END PLATE; FOR 5 X 20 MM MINIATURE METRIC FUSE; WITH PUSH-BUTTON; WITHOUT BLOWN FUSE INDICATION; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM; PUSH-IN CAGE CLAMP; 2,50 MM; GRAY 60423848 2.5mm 250mm GRA
Catalog Description: 3-conductor fuse terminal block; with pivoting fuse holder; and end plate; for 5 x 20 mm miniature metric fuse; with push-button; without blown fuse indication; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2202-1711 Standards
RoHS Compliant|UL94SKU #2414819Part Number #2202-1711UNSPSC39121410UPC04055143955904
Image provided may only be a representation of final product and may include optional equipment
