Part Number # 2202-1911
SKU # 2396262
2202-1911
WAGO 2202-1911 TOPJOB S fuse terminal block with Push-buttons
Part Number # 2202-1911
SKU # 2396262
Wago 2202-1911 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2202-1911 |
| SKU #: | 2396262 |
| Amperage Rating: | 6.3 A |

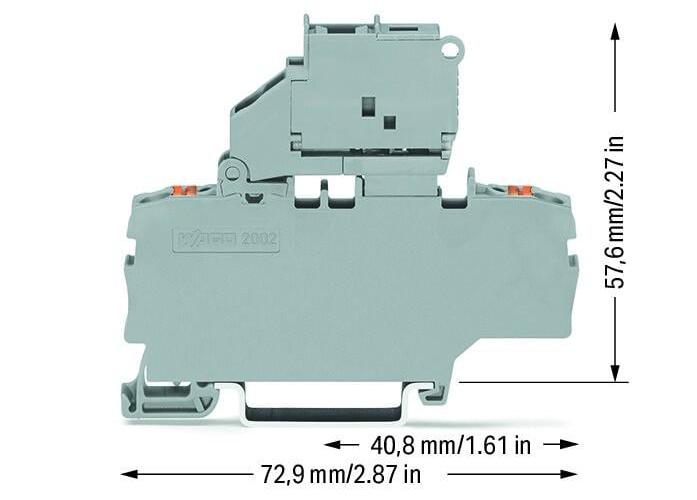

| Dimensions: | 2.87 in H x 0.244 in W x 2.268 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Push-In |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143962001 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2202-1911 TOPJOB S fuse terminal block with Push-buttons
Brand: Wago
Part Number: 2202-1911
Additional Description: WAGO-2202-1911 2-CONDUCTOR FUSE TERMINAL BLOCK; WITH PIVOTING FUSE HOLDER; WITH ADDITIONAL JUMPER POSITION; FOR 5 X 20 MM MINIATURE METRIC FUSE; WITH PUSH-BUTTON; WITHOUT BLOWN FUSE INDICATION; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM; PUSH-IN CAGE CLAMP; 2,50 MM; GRAY 60425220 dicati35x15-35x7.5 2.5mm 250mm GRA ADDITIONAL JUMPER POSITION; FOR 5 X 20 MM MINIATURE METRIC FUSE; WITH PUSH-BUTTON; WITHOUT BLOWN FUSE INDICATION; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY
Catalog Description: 2-conductor fuse terminal block; with pivoting fuse holder; with additional jumper position; for 5 x 20 mm miniature metric fuse; with push-button; without blown fuse indication; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2202-1911 Standards
CSA 22.2 No 158|ATEX: PTB 20 ATEX 1007 U / IECEx: PTB 20.0013U (Ex ec IIC Gc)|RoHS CompliantSKU #2396262Part Number #2202-1911UNSPSC39121410UPC04055143962001
Image provided may only be a representation of final product and may include optional equipment
