Part Number # 2202-1971
SKU # 2420721
2202-1971

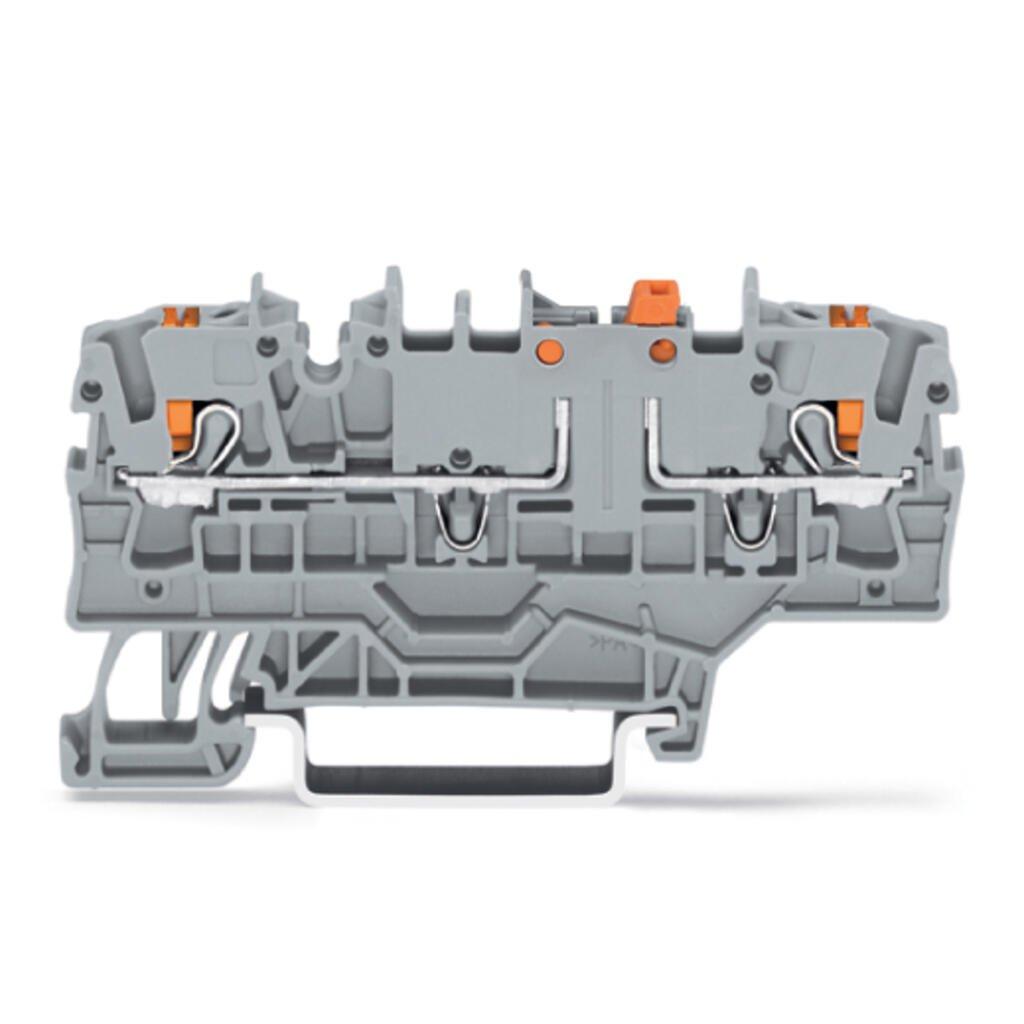

WAGO 2202-1971 Terminal Blocks
Part Number # 2202-1971
SKU # 2420721
Wago 2202-1971 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2202-1971 |
| SKU #: | 2420721 |
| Amperage Rating: | 16 A |
| Dimensions: | 2.87 in H x 0.205 in W x 1.295 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Push-In |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04066966083101 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2202-1971 Terminal Blocks
Brand: Wago
Part Number: 2202-1971
Additional Description: WAGO-2202-1971 2-CONDUCTOR DISCONNECT/TEST TERMINAL BLOCK; WITH PUSH-BUTTON; WITH ADDITIONAL JUMPER POSITION; ORANGE DISCONNECT LINK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM; PUSH-IN CAGE CLAMP; 2,50 MM; GRAY 60482319
Catalog Description: 2-conductor disconnect/test terminal block; with push-button; with additional jumper position; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2202-1971 Item Features
- Solid conductor 22 to 12 AWG, Solid conductor; push-in termination 18 to 12 AWG, Fine-stranded conductor 22 to 12 AWG, Fine-stranded conductor; with insulated ferrule 22 to 14 AWG, Fine-stranded conductor; with ferrule; push-in termination 18 to 14 AWG
2202-1971 Standards
CSA 22.2 No 158|ATEX: PTB 20 ATEX 1007 U / IECEx: PTB 20.0013U (Ex ec IIC Gc)|RoHS CompliantSKU #2420721Part Number #2202-1971UNSPSC39121410UPC04066966083101
Image provided may only be a representation of final product and may include optional equipment
