Part Number # 2202-1981/1000-434
SKU # 2395838
2202-1981/1000-434
WAGO 2202-1981/1000-434 Terminal Blocks
Part Number # 2202-1981/1000-434
SKU # 2395838
Wago 2202-1981/1000-434 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2202-1981/1000-434 |
| SKU #: | 2395838 |
| Amperage Rating: | 10 A |

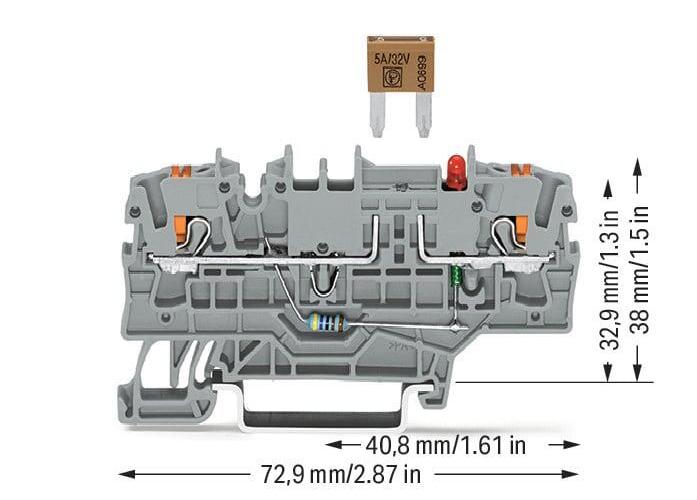

| Dimensions: | 2.87 in H x 0.205 in W x 1.295 in D |
| Number of Poles: | 2 |
| Type: | Front-Entry Wiring |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Push-In |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04066966083040 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2202-1981/1000-434 Terminal Blocks
Brand: Wago
Part Number: 2202-1981/1000-434
Additional Description: WAGO-2202-1981/1000-434 2-CONDUCTOR FUSE TERMINAL BLOCK; 60482313 FUSES; WITH TEST OPTION; WITH PUSH-BUTTON; WITH BLOWN FUSE INDICATION BY LED; 24 V; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM ; PUSH-IN CAGE CLAMP ; 2,50 MM ; GRAY
Catalog Description: 2-conductor fuse terminal block; for mini-automotive blade-style fuses; with test option; with push-button; with blown fuse indication by LED; 24 V; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2202-1981/1000-434 Standards
CSA 22.2 No 158|IEC/EN 60947-7-3|RoHS CompliantSKU #2395838Part Number #2202-1981/1000-434UNSPSC39121410UPC04066966083040
Image provided may only be a representation of final product and may include optional equipment
