WAGO 2202-2703 Terminal Blocks
Part Number # 2202-2703
SKU # 2410667
Wago 2202-2703 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2202-2703 |
| SKU #: | 2410667 |
| Amperage Rating: | 24 A |

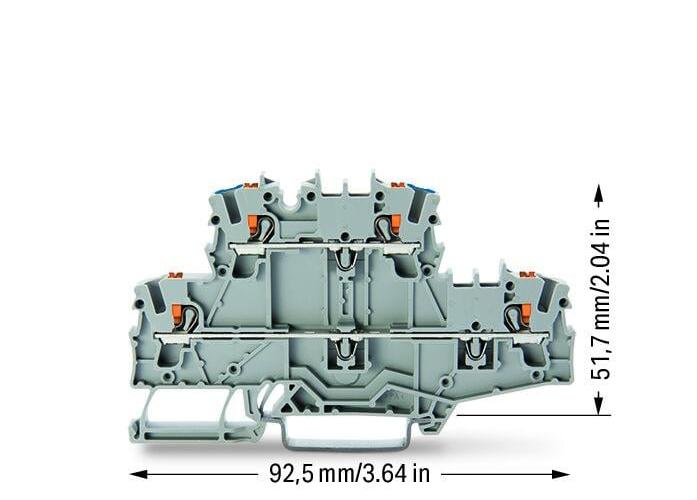

| Dimensions: | 3.642 in H x 0.205 in W x 2.035 in D |
| Number of Poles: | 2 |
| Type: | Operating Tool |
| Wire Size: | 22 to 12 AWG |
| Connection type: | Clamp |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143844475 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2202-2703 Terminal Blocks
Brand: Wago
Part Number: 2202-2703
Additional Description: WAGO-2202-2703 DOUBLE-DECK TERMINAL BLOCK; WITH PUSH-BUTTON; THROUGH/THROUGH TERMINAL BLOCK; L/N; WITHOUT MARKER CARRIER; SUITABLE FOR EX E II APPLICATIONS; BLUE CONDUCTOR ENTRY UPPER DECK; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 2.5 MM; PUSH-IN CAGE CLAMP; 2,50 MM; GRAY 60394828
Catalog Description: Double-deck terminal block; with push-button; Through/through terminal block; L/N; without marker carrier; suitable for Ex e II applications; Blue conductor entry upper deck; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
2202-2703 Application
Suitable for Ex e II applications2202-2703 Standards
CSA 22.2 No 158|ATEX: PTB 18 ATEX 1005 U / IECEx: PTB 18.0012U (Ex eb IIC Gb)|RoHS CompliantSKU #2410667Part Number #2202-2703UNSPSC39121410UPC04055143844475
