Part Number # 2204-1204
SKU # 2392050
2204-1204

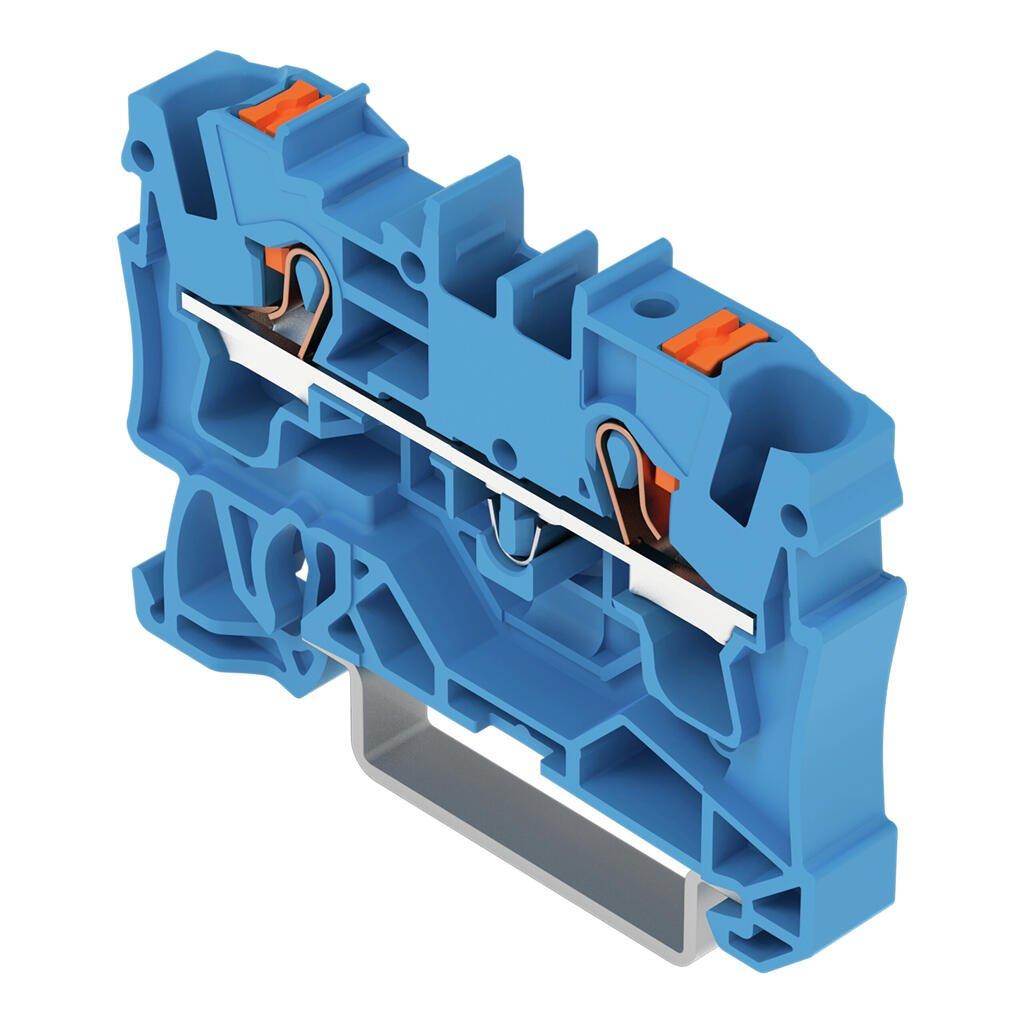

WAGO 2204-1204 TOPJOB S feedthrough terminal block with Push-buttons
Part Number # 2204-1204
SKU # 2392050
Wago 2204-1204 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2204-1204 |
| SKU #: | 2392050 |
| Dimensions: | 2.059 in H x 0.244 in W x 1.555 in D |
| Type: | Operating Tool |
| Connection type: | Clamp |
| Mounting type: | 35 mm DIN Rail |
| UNSPSC: | 39121410 |
| UPC: | 04055143711470 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2204-1204 TOPJOB S feedthrough terminal block with Push-buttons
Brand: Wago
Part Number: 2204-1204
Additional Description: WAGO-2204-1204 2-CONDUCTOR THROUGH TERMINAL BLOCK; 60361202 PORT; SUITABLE FOR EX I APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 4,00 MM ; BLUE
Catalog Description: 2-conductor through terminal block; with push-button; 4 mm²; with test port; suitable for Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; blue
2204-1204 Application
Suitable for Ex i applications2204-1204 Standards
CSA 22.2 No 158|ATEX: PTB 18 ATEX 1006 U / IECEx: PTB 18.0013U (Ex eb IIC Gb)|RoHS CompliantSKU #2392050Part Number #2204-1204UNSPSC39121410UPC04055143711470
Image provided may only be a representation of final product and may include optional equipment
