2204-1301

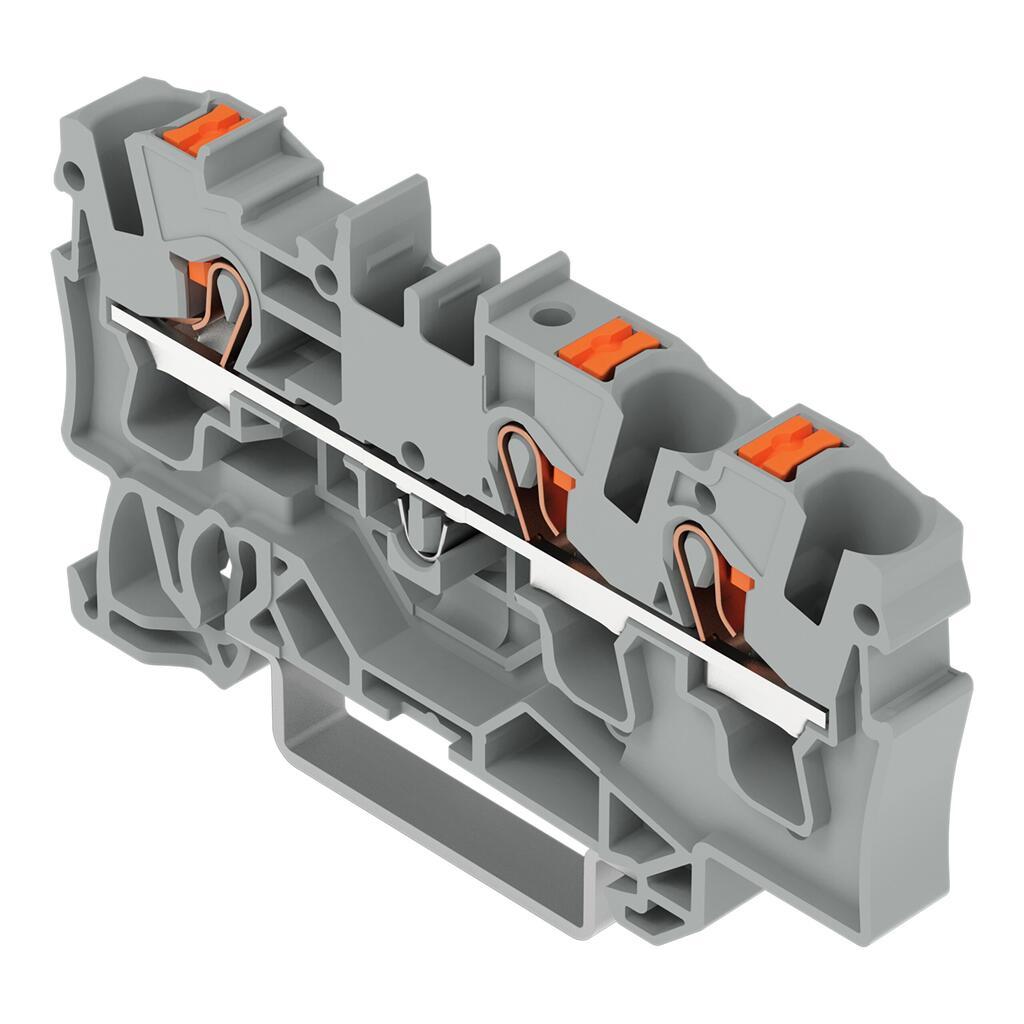

WAGO 2204-1301 TOPJOB S feedthrough terminal block with Push-buttons
Part Number # 2204-1301
SKU # 2367732
$2.74 / Each
Typical price:$2.97 / Each
Wago 2204-1301 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2204-1301 |
| SKU #: | 2367732 |
| Amperage Rating: | 32 A |
| Dimensions: | 2.579 in H x 0.244 in W x 1.555 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 20 to 10 AWG |
| Actuation type: | Push-in || Push-button || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 65.5 mm / 2.579 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 4 mm² |
| Rated current: | 32 A |
| Solid conductor: | 0.5 … 6 mm² / 20 … 10 AWG |
| Total number of connection points: | 3 |
| Weight: | 9.161 g |
| Width: | 6.2 mm / 0.244 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143711432 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.74 / Each
Typical price:$2.97 / Each
Quantity:
WAGO 2204-1301 TOPJOB S feedthrough terminal block with Push-buttons
Brand: Wago
Part Number: 2204-1301
Additional Description: WAGO-2204-1301 3-CONDUCTOR THROUGH TERMINAL BLOCK; WITH PUSH-BUTTON; 4 MM ; WITH TEST PORT; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 4,00 MM ; GRAY 60361204
Catalog Description: 3-conductor through terminal block; with push-button; 4 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; gray
2204-1301 Standards
CSA 22.2 No 158|ATEX: PTB 18 ATEX 1006 U / IECEx: PTB 18.0013U (Ex eb IIC Gb)|RoHS CompliantSKU #2367732Part Number #2204-1301UNSPSC39121410UPC04055143711432
