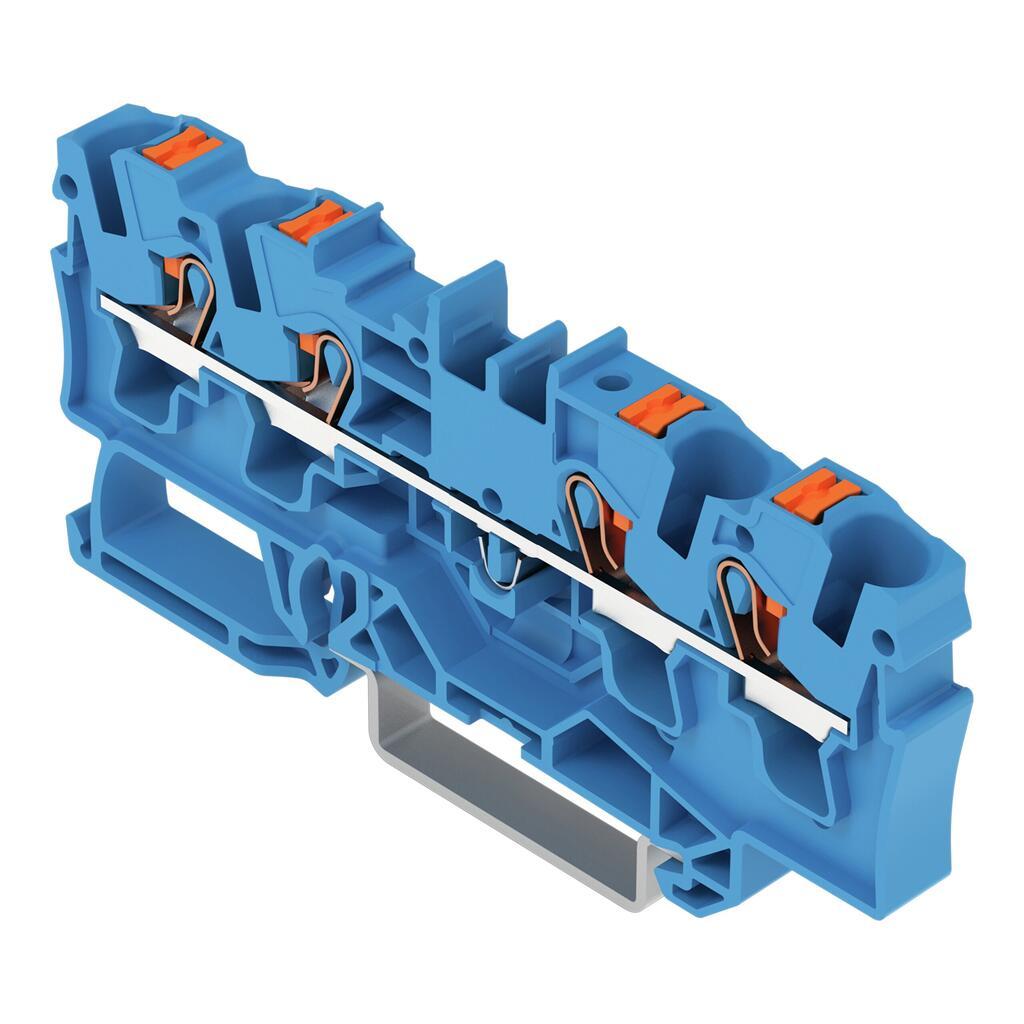

WAGO 2204-1404 TOPJOB S feedthrough terminal block with Push-buttons

2359779 MFG #: 2204-1404
$2.75 / EA
Out of Stock
  • Actuation type: Push-in || Push-button || Operating tool
  • Approvals per: UL 1059
  • Color: Blue
  • Connection technology: Push-in CAGE CLAMP®
  • Country of origin: DE
  • Depth: 78.7 mm / 3.098 inch
  • Insulation material: Polyamide (PA66)
  • Mounting type: DIN-35 rail
  • Nominal cross-section: 4 mm²
  • Rated current: 32 A
  • Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
  • Total number of connection points: 4
  • Weight: 11.294 g
  • Width: 6.2 mm / 0.244 inch
  • Wiring type: Front-entry wiring

WAGO 2204-1404 TOPJOB S feedthrough terminal block with Push-buttons

Additional Description: WAGO-2204-1404 (D) 4-CONDUCTOR THROUGH TERMINAL BLOCK; WITH PUSH-BUTTON; 4 MM ; WITH TEST PORT; SUITABLE FOR EX I APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP®; 4,00 MM ; BLUE BLK-TJS W/LEVER 22041404
