2206-1301

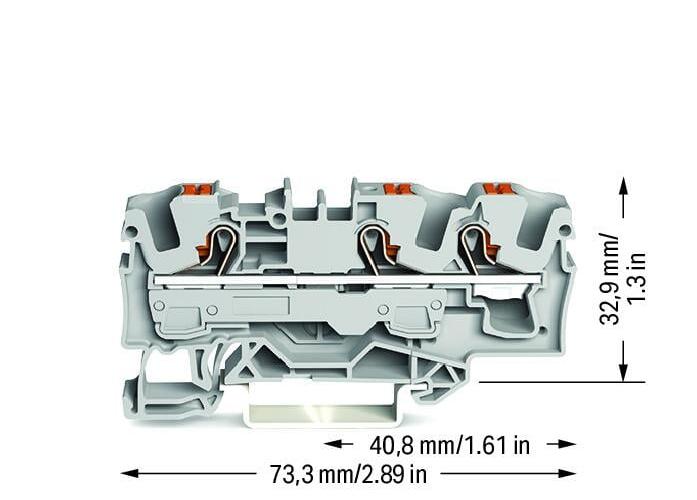

WAGO 2206-1301 TOPJOB S feedthrough terminal block with Push-buttons
Part Number # 2206-1301
SKU # 2365372
$4.73 / Each
Typical price:$5.12 / Each
Wago 2206-1301 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2206-1301 |
| SKU #: | 2365372 |
| Amperage Rating: | 41 A |
| Dimensions: | 2.886 in H x 0.295 in W x 1.555 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 20 to 8 AWG |
| Actuation type: | Push-in || Push-button || Operating tool |
| Approvals per: | UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 73.3 mm / 2.886 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 6 mm² |
| Rated current: | 41 A |
| Solid conductor: | 0.5 … 10 mm² / 20 … 8 AWG |
| Total number of connection points: | 3 |
| Weight: | 12.934 g |
| Width: | 7.5 mm / 0.295 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143712088 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.73 / Each
Typical price:$5.12 / Each
Quantity:
- WAGO, 2206-1301, Conductor Terminal Block, Operating Tool, 800 V, 41 A, 1 Pole, 20 to 8 AWG Wire, 0.51 to 0.59 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Gray, 2.886 in H x 0.295 in W x 1.555 in D Dimensions
2206-1301 Standards
CSA 22.2 No 158|ATEX: PTB 18 ATEX 1007 U / IECEx: PTB 18.0014U|RoHS CompliantSKU #2365372Part Number #2206-1301UNSPSC39121410UPC04055143712088
