Part Number # 2206-8031
SKU # 2407603
2206-8031
WAGO 2206-8031 2206 Terminal Block, 800 V, 57 A, 20 to 8 AWG Wire, DIN Rail Mounting
Part Number # 2206-8031
SKU # 2407603
Wago 2206-8031 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2206-8031 |
| SKU #: | 2407603 |
| Amperage Rating: | 57 A |
| Dimensions: | 2.905 in H x 0.354 in W x 1.295 in D |
| Series: | 2206 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Wire Size: | 20 to 8 AWG |
| Connection type: | Push-In |
| Country of origin: | DE |
| Material: | Polyamide 6.6 |
| Mounting type: | DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121105 |
| UPC: | 04066966185805 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2206-8031 2206 Terminal Block, 800 V, 57 A, 20 to 8 AWG Wire, DIN Rail Mounting
Brand: Wago
Part Number: 2206-8031
Additional Description: WAGO-2206-8031 DISTRIBUTION TERMINAL BLOCK; WITH 60492589 WITH INTEGRATED END PLATE; SUITABLE FOR EX E II APPLICATIONS; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 6,00 MM ; GRAY 60492589
Catalog Description: Distribution terminal block; with push-button; 1 x 6 mm² / 6 x 1.5 mm²; with integrated end plate; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm²; gray
2206-8031 Standards
RoHS Compliant|IEC/EN 60947-7-1SKU #2407603Part Number #2206-8031UNSPSC39121105UPC04066966185805

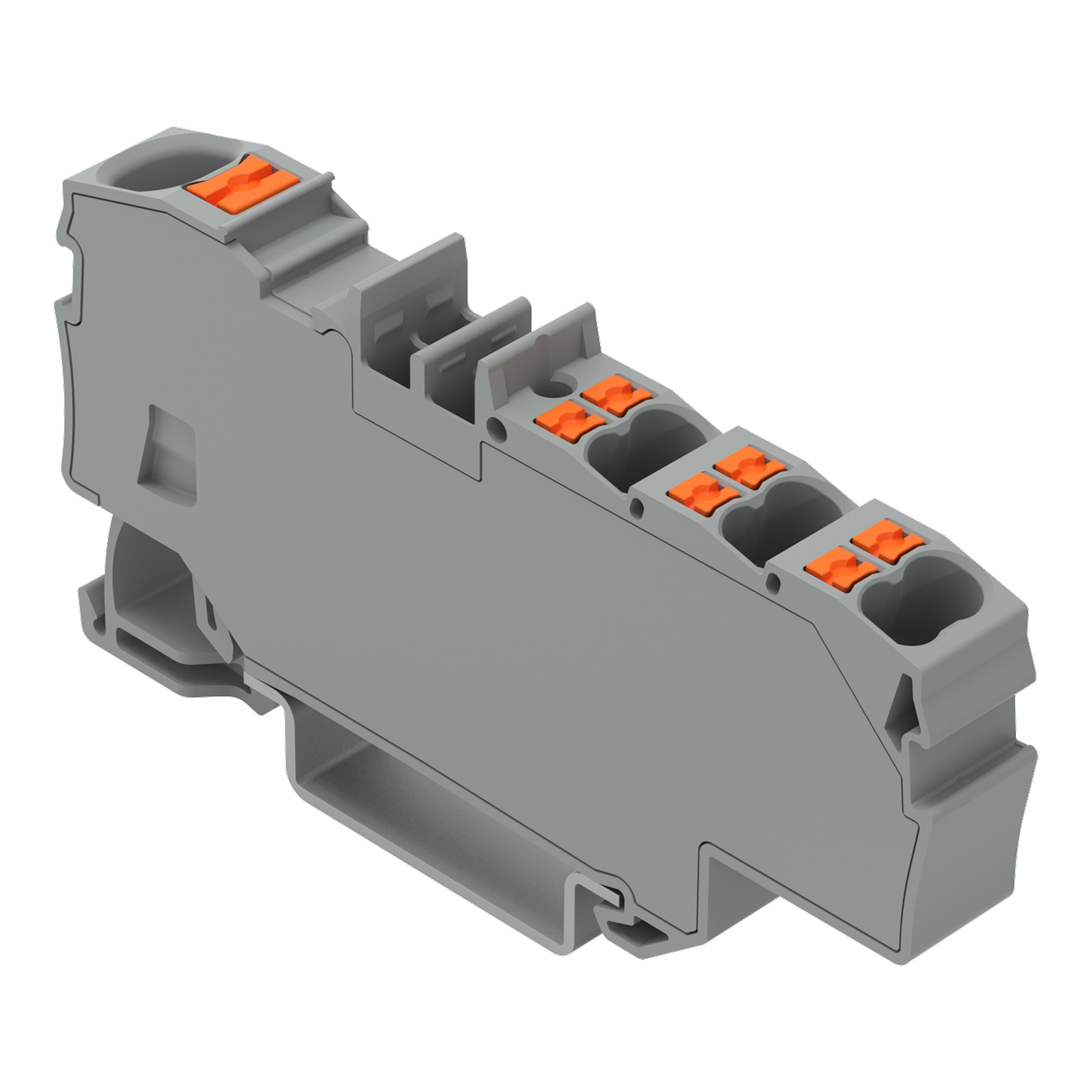

Image provided may only be a representation of final product and may include optional equipment
