2210-1201

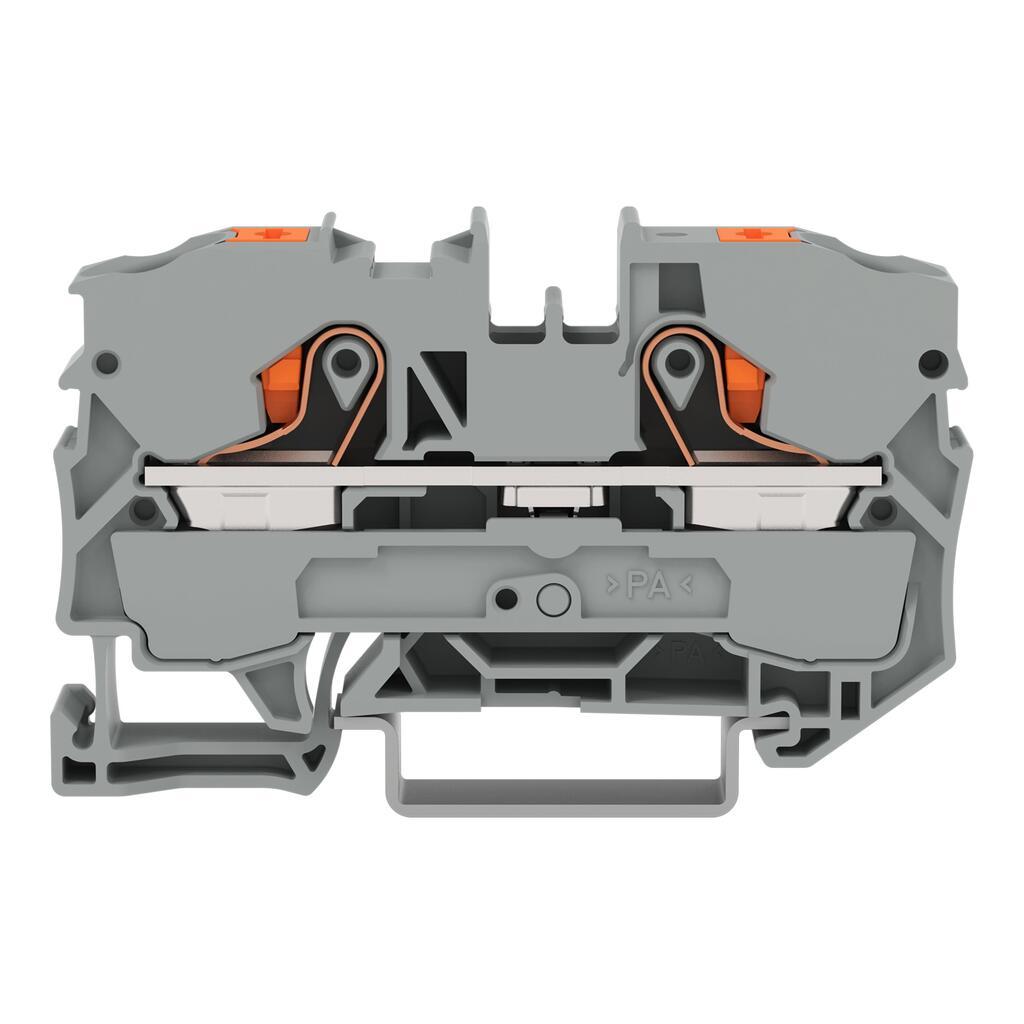

WAGO 2210-1201 TOPJOB S feedthrough terminal block with Push-buttons
Part Number # 2210-1201
SKU # 2368779
$4.32 / Each
Typical price:$4.68 / Each
Wago 2210-1201 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2210-1201 |
| SKU #: | 2368779 |
| Amperage Rating: | 57 A |
| Dimensions: | 2.661 in H x 0.394 in W x 1.713 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 20 to 6 AWG |
| Actuation type: | Push-in || Push-button || Operating tool |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 67.6 mm / 2.661 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 10 mm² |
| Rated current: | 57 A |
| Solid conductor: | 0.5 … 16 mm² / 20 … 6 AWG |
| Total number of connection points: | 2 |
| Weight: | 18.975 g |
| Width: | 10 mm / 0.394 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143735698 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.32 / Each
Typical price:$4.68 / Each
Quantity:
- WAGO, 2210-1201, Conductor Terminal Block, Operating Tool, 800 V, 57 A, 1 Pole, 20 to 6 AWG Wire, 0.67 to 0.75 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Gray, 2.661 in H x 0.394 in W x 1.713 in D Dimensions
2210-1201 Standards
CSA 22.2 No 158|ATEX: PTB 18 ATEX 1008 U / IECEx: PTB 18.0015U (Ex eb IIC Gb)|RoHS CompliantSKU #2368779Part Number #2210-1201UNSPSC39121410UPC04055143735698
