2210-1301

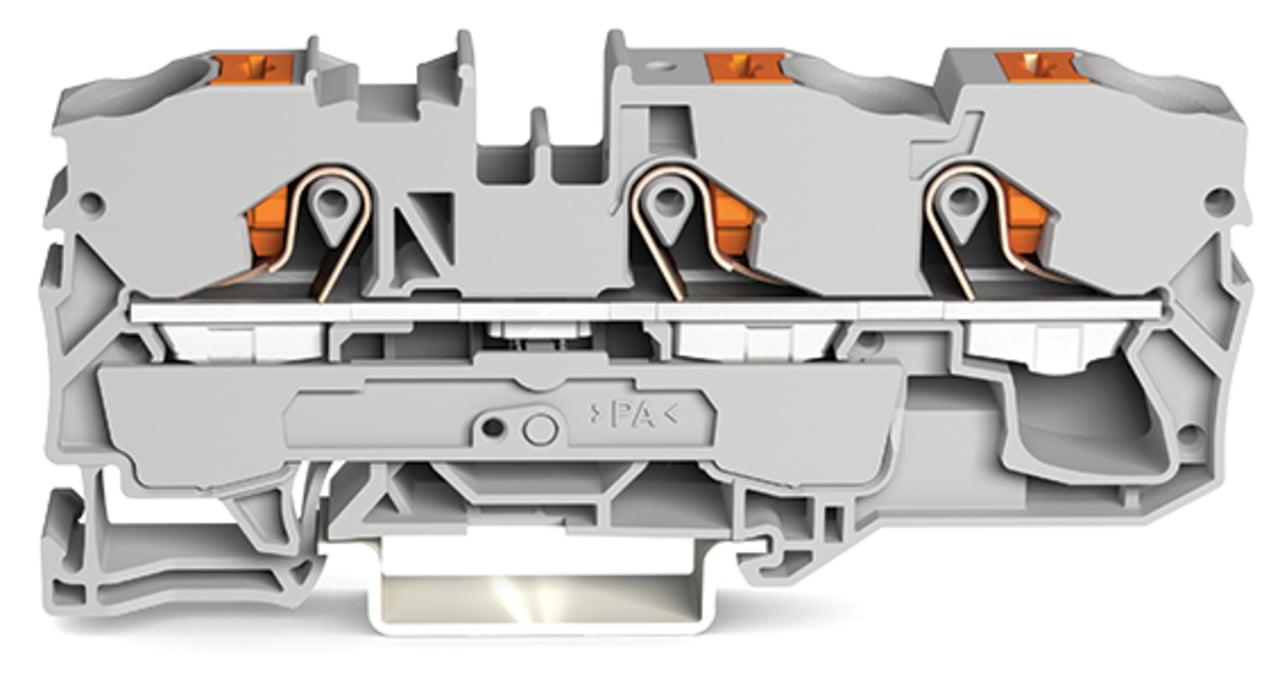

WAGO 2210-1301 TOPJOB S feedthrough terminal block with Push-buttons
Part Number # 2210-1301
SKU # 2378483
Wago 2210-1301 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2210-1301 |
| SKU #: | 2378483 |
| Amperage Rating: | 57 A |
| Dimensions: | 3.504 in H x 0.394 in W x 1.453 in D |
| Series: | 2210 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Terminal Type: | Through |
| Type: | 3-Conductor |
| Wire Size: | 20 to 6 AWG |
| Actuation type: | Push-in || Push-button || Operating tool |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Country of origin: | DE |
| Depth: | 89 mm / 3.504 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 10 mm² |
| Rated current: | 57 A |
| Solid conductor: | 0.5 … 16 mm² / 20 … 6 AWG |
| Total number of connection points: | 3 |
| Weight: | 25.537 g |
| Width: | 10 mm / 0.394 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143736114 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2210-1301 TOPJOB S feedthrough terminal block with Push-buttons
Brand: Wago
Part Number: 2210-1301
Additional Description: WAGO-2210-1301 3-CONDUCTOR THROUGH TERMINAL BLOCK; WITH PUSH-BUTTON; 10 MM; WITH TEST PORT; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 10,00 MM; GRAY 60366099 WITH PUSH-BUTTON; 10 MM ; WITH TEST DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 10,00 MM ; GRAY 60366099
Catalog Description: 3-conductor through terminal block; with push-button; 10 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 10,00 mm²; gray
2210-1301 Standards
RoHS CompliantSKU #2378483Part Number #2210-1301UNSPSC39121410UPC04055143736114
