Part Number # 2216-1301
SKU # 2358297
Image Disclaimers Message
2216-1301

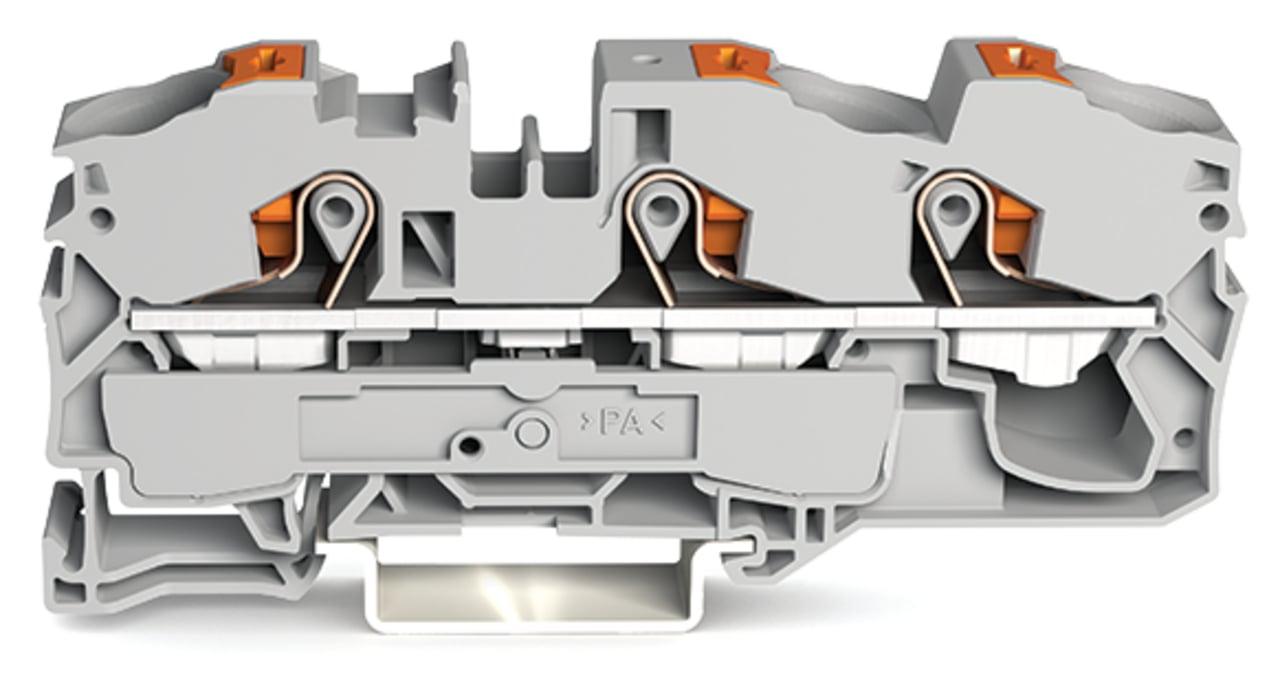

WAGO 2216-1301 TOPJOB S feedthrough terminal block with Push-buttons
Part Number # 2216-1301
SKU # 2358297
Wago 2216-1301 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2216-1301 |
| SKU #: | 2358297 |
| Series: | 2216 |
| Suitable For Use With: | Terminal Block |
| Type: | 3-Conductor |
| Actuation type: | Push-in || Push-button || Operating tool |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 91.8 mm / 3.622 inch |
| Height: | 3.62 in |
| Insulation material: | Polyamide (PA66) |
| Length: | 1.46 in |
| Material: | Polyamide |
| Mounting type: | DIN-35 rail |
| Nominal cross-section: | 16 mm² |
| Rated current: | 76 A |
| Solid conductor: | 0.5 … 16 mm² / 20 … 6 AWG |
| Total number of connection points: | 3 |
| Weight: | 32.179 g |
| Width: | 0.47 in, 12 mm / 0.472 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143732789 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 2216-1301 TOPJOB S feedthrough terminal block with Push-buttons
Brand: Wago
Part Number: 2216-1301
Additional Description: WAGO-2216-1301 3-CONDUCTOR THROUGH TERMINAL BLOCK; WITH PUSH-BUTTON; 16 MM; WITH TEST PORT; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP; 16,00 MM; GRAY 60364960 WITH PUSH-BUTTON; 16 MM ; WITH TEST DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP ; 16,00 MM ; GRAY WITH PUSH-BUTTON; 16MM^2 WITH TEST PORT; SIDE AND CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; PUSH-IN CAGE CLAMP
Catalog Description: 3-conductor through terminal block; with push-button; 16 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 16,00 mm²; gray
2216-1301 Standards
RoHS CompliantSKU #2358297Part Number #2216-1301UNSPSC39121410UPC04055143732789
