Part Number # 231-103/102-000
SKU # 2170758
231-103/102-000

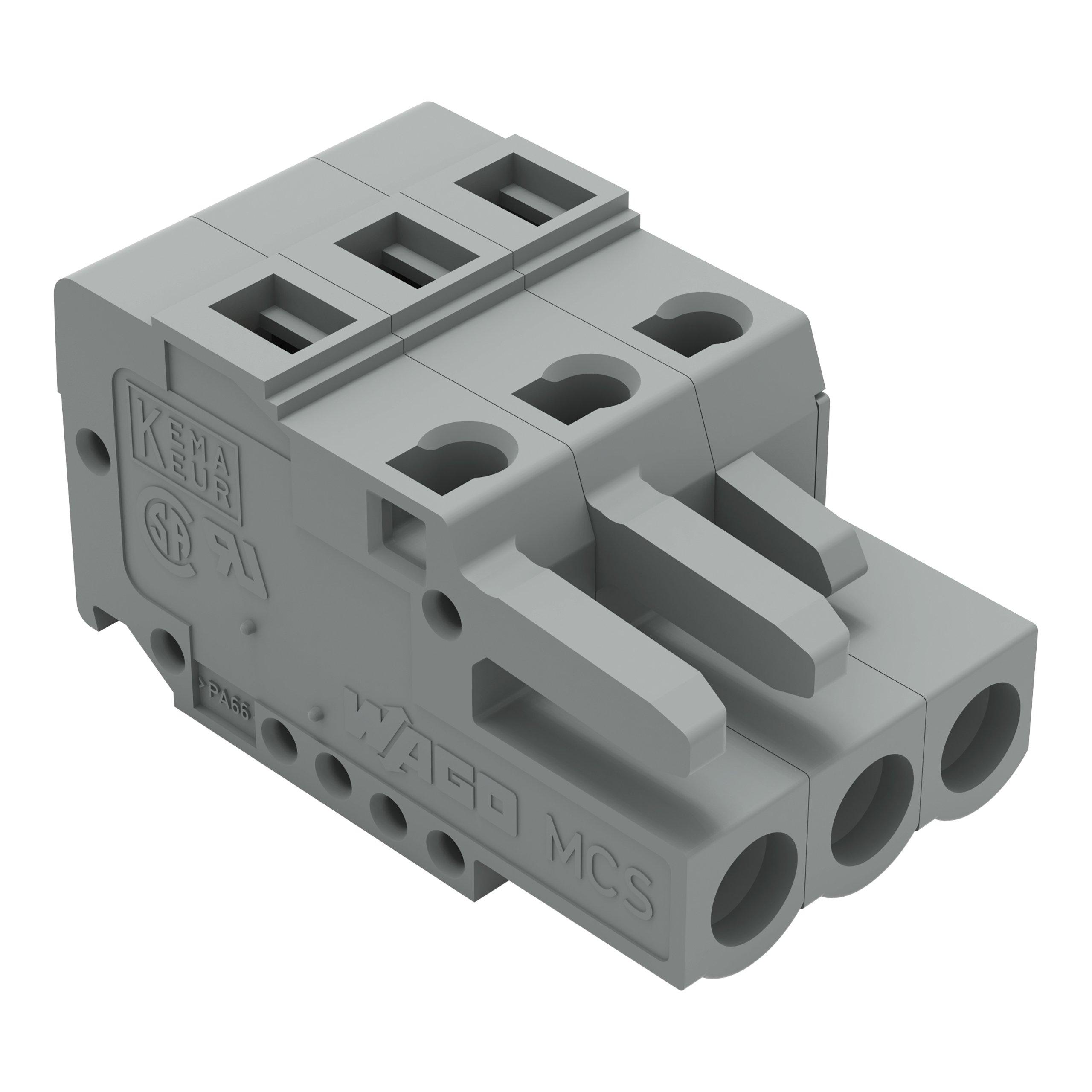

WAGO 231-103/102-000 Female plug
Part Number # 231-103/102-000
SKU # 2170758
$3.28 / Each
Typical price:$3.55 / Each
Wago 231-103/102-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-103/102-000 |
| SKU #: | 2170758 |
| Dimensions: | 0.563 in H x 0.591 in W x 1.043 in D |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Clamp |
| Contact material: | Copper alloy |
| Depth: | 26.5 mm / 1.043 inch |
| Height: | 14.3 mm / 0.563 inch |
| Rated current: | 16 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Weight: | 5.238 g |
| Width: | 15 mm / 0.591 inch |
| UNSPSC: | 39121459 |
| UPC: | 04044918338264 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.28 / Each
Typical price:$3.55 / Each
Quantity:
WAGO 231-103/102-000 Female plug
Brand: Wago
Part Number: 231-103/102-000
Additional Description: WAGO-231-103/102-000 1-CONDUCTOR FEMALE PLUG; WITH INTEGRATED END PLATE; 2.5 MM; PIN SPACING 5 MM; 3-POLE; 2,50 MM; GRAY 51116572 INTEGRATED END PLATE; 2.5 MM ; PIN SPACING 5 MM; 3-POLE; 2,50 MM ; GRAY 51116572
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 3-pole; with integrated end plate; 2,50 mm²; gray
231-103/102-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Integrated test ports
- With coding fingers
231-103/102-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2170758Part Number #231-103/102-000UNSPSC39121459UPC04044918338264
Image provided may only be a representation of final product and may include optional equipment
