Brand: Wago

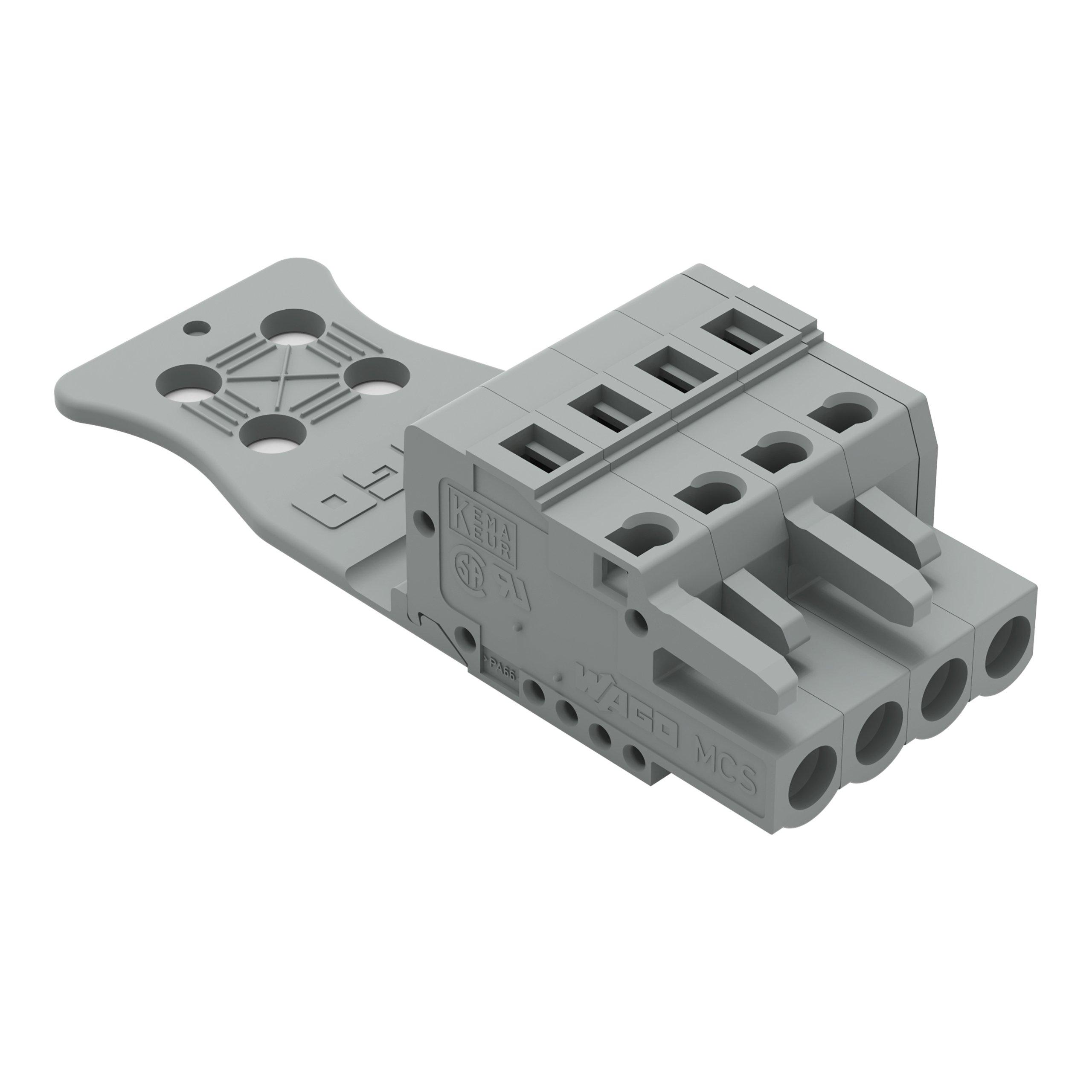

WAGO 231-104/026-000/033-000 Female plug
Image Disclaimers Message
Brand: Wago
WAGO 231-104/026-000/033-000 Female plug
Brand: Wago
WAGO 231-104/026-000/033-000 Female plug
Part #:231-104/026-000/033-000
SKU #: 2389874
$4.98/EA
Key Features
Part #:231-104/026-000/033-000
SKU #: 2389874
Brand: Wago
Amperage Rating: 15 A
Dimensions: 0.56 in H x 0.84 in W x 2.22 in D
Number of Poles: 4
Series: 231
Temperature Rating (Degrees F): -65 to 85 deg C
$4.98/EA
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP
- Integrated test ports
- Universal connection for all conductor types with coding fingers actuation
Specifications
Brand: Wago
Amperage Rating: 15 A
Dimensions: 0.56 in H x 0.84 in W x 2.22 in D
Number of Poles: 4
Series: 231
Temperature Rating (Degrees F): -65 to 85 deg C
Type: 1-Conductor
Voltage Rating: 300 V
Wire Size: 28 to 12 AWG
Color: Gray
Connection type: Push-In
Country of origin: DE
Material: Polyamide
Mounting type: Cable
Manufacturer Name: WAGO Corporation
UNSPSC: 39121421
UPC: 04044918338400
WAGO 231-104/026-000/033-000 Female plug
Additional Description: WAGO-231-104/026-000/033-000 1-CONDUCTOR FEMALE PLUG; STRAIN RELIEF PLATE; 2.5 MM; PIN SPACING 5 MM; 4-POLE; 2,50 MM; GRAY 51116586
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 4-pole; Strain relief plate; 2,50 mm²; gray
Item Features
Item FeaturesRoHS Compliant
