Part Number # 231-104/102-000
SKU # 2353946
Image Disclaimers Message
231-104/102-000

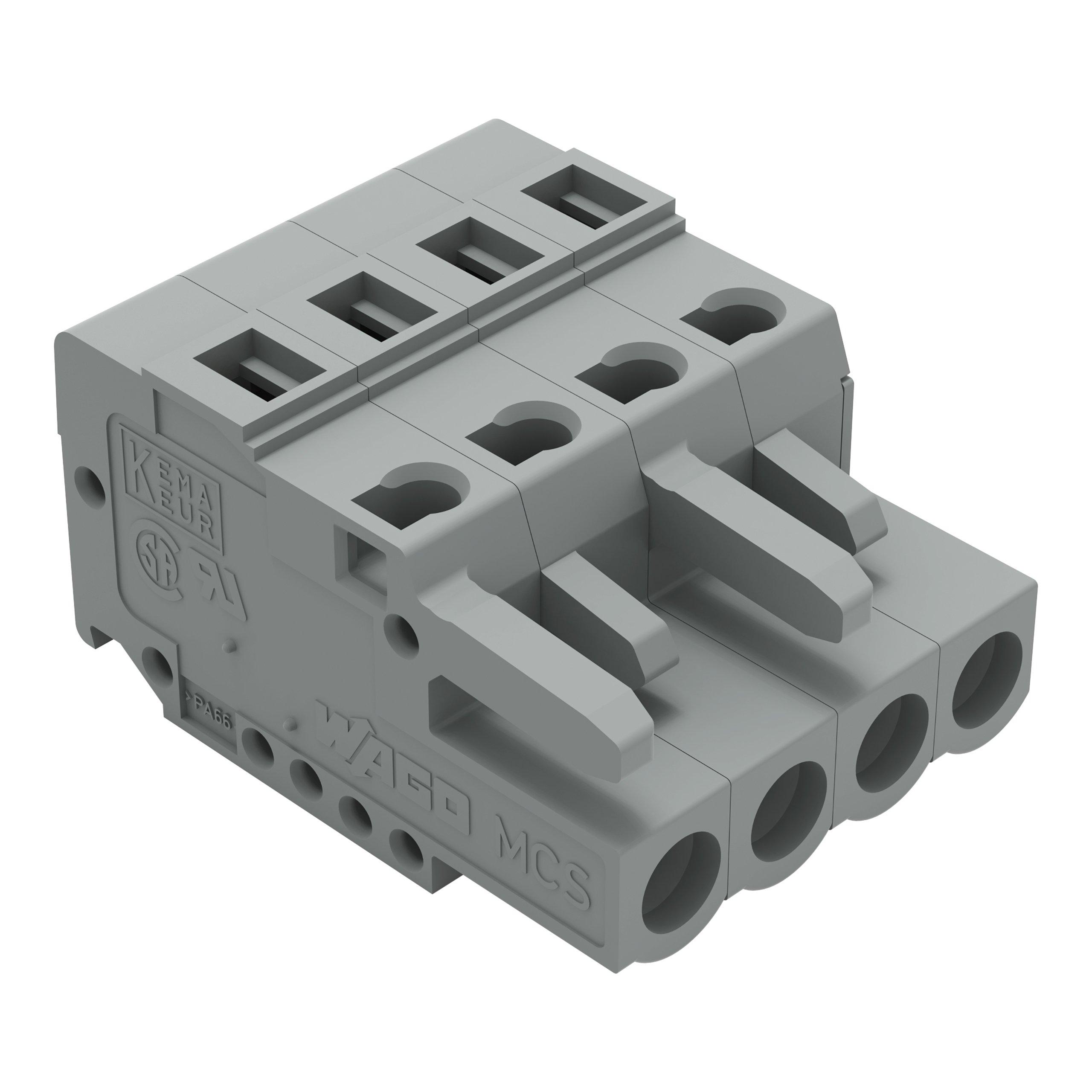

WAGO 231-104/102-000 Female plug
Part Number # 231-104/102-000
SKU # 2353946
$4.31 / Each
Typical price:$4.67 / Each
Wago 231-104/102-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-104/102-000 |
| SKU #: | 2353946 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.563 in H x 0.787 in W x 1.043 in D |
| Number of Poles: | 4 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Connector (connection type): | For conductor |
| Contact material: | Copper alloy |
| Country of origin: | DE |
| Depth: | 26.5 mm / 1.043 inch |
| Height: | 14.3 mm / 0.563 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 16 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 6.993 g |
| Width: | 20 mm / 0.787 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918338745 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.31 / Each
Typical price:$4.67 / Each
Quantity:
WAGO 231-104/102-000 Female plug
Brand: Wago
Part Number: 231-104/102-000
Additional Description: WAGO-231-104/102-000 1-CONDUCTOR FEMALE PLUG; WITH INTEGRATED END PLATE; 2.5 MM; PIN SPACING 5 MM; 4-POLE; 2,50 MM; GRAY 51116620 INTEGRATED END PLATE; 2.5 MM ; PIN SPACING 5 MM; 4-POLE; 2,50 MM ; GRAY 51116620
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 4-pole; with integrated end plate; 2,50 mm²; gray
231-104/102-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Integrated test ports
- With coding fingers
231-104/102-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2353946Part Number #231-104/102-000UNSPSC39121459UPC04044918338745
