Brand: Wago

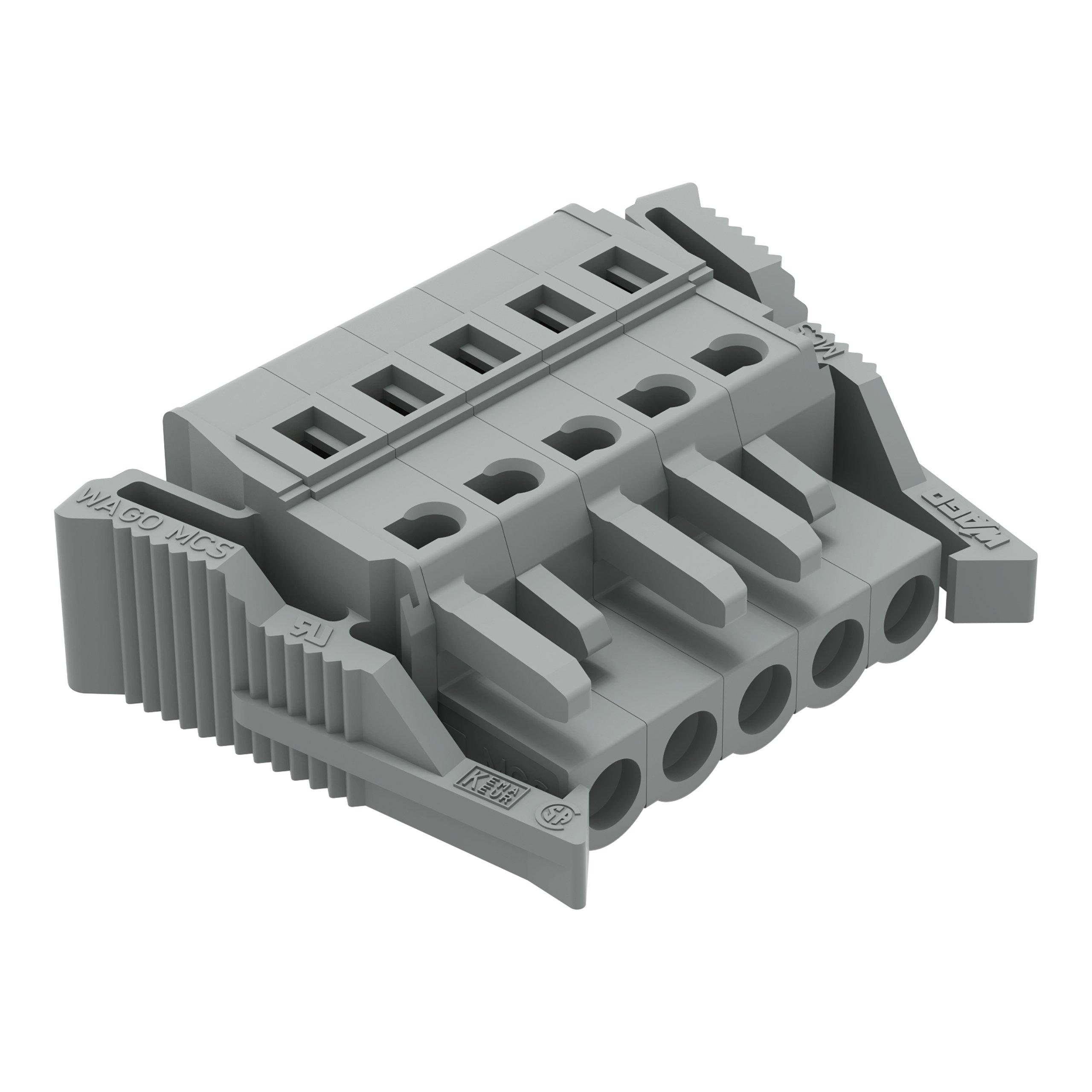

WAGO 231-105/037-000 Female plug
Image Disclaimers Message
Brand: Wago
WAGO 231-105/037-000 Female plug
Brand: Wago
WAGO 231-105/037-000 Female plug
Part #:231-105/037-000
SKU #: 1739043
$4.86/EA
Key Features
Part #:231-105/037-000
SKU #: 1739043
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
$4.86/EA
274 In Stock
Ships in 1 Business Day
Specifications
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Copper alloy
Contact type (pluggable connector): Female connector/socket
Country of origin: DE
Depth: 29.6 mm / 1.165 inch
Height: 14.3 mm / 0.563 inch
Insulation material: Polyamide (PA66)
Number of connection types: 1
Rated current: 16 A
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 5
Weight: 10.421 g
Width: 41.6 mm / 1.638 inch
UNSPSC: 39121459
UPC: 04044918339094
WAGO 231-105/037-000 Female plug
Additional Description: WAGO-231-105/037-000 1-CONDUCTOR FEMALE PLUG; LOCKING LEVER; 2.5 MM; PIN SPACING 5 MM; 5-POLE; 2,50 MM; GRAY 51116655 LEVER; 2.5 MM ; PIN SPACING 5 MM; 5-POLE; 2,50 MM ; GRAY AND LOCKING DEVICE 51116655
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 5-pole; Lateral locking levers; 2,50 mm²; gray
