Part Number # 231-106/026-000
SKU # 1739020
Image Disclaimers Message
231-106/026-000

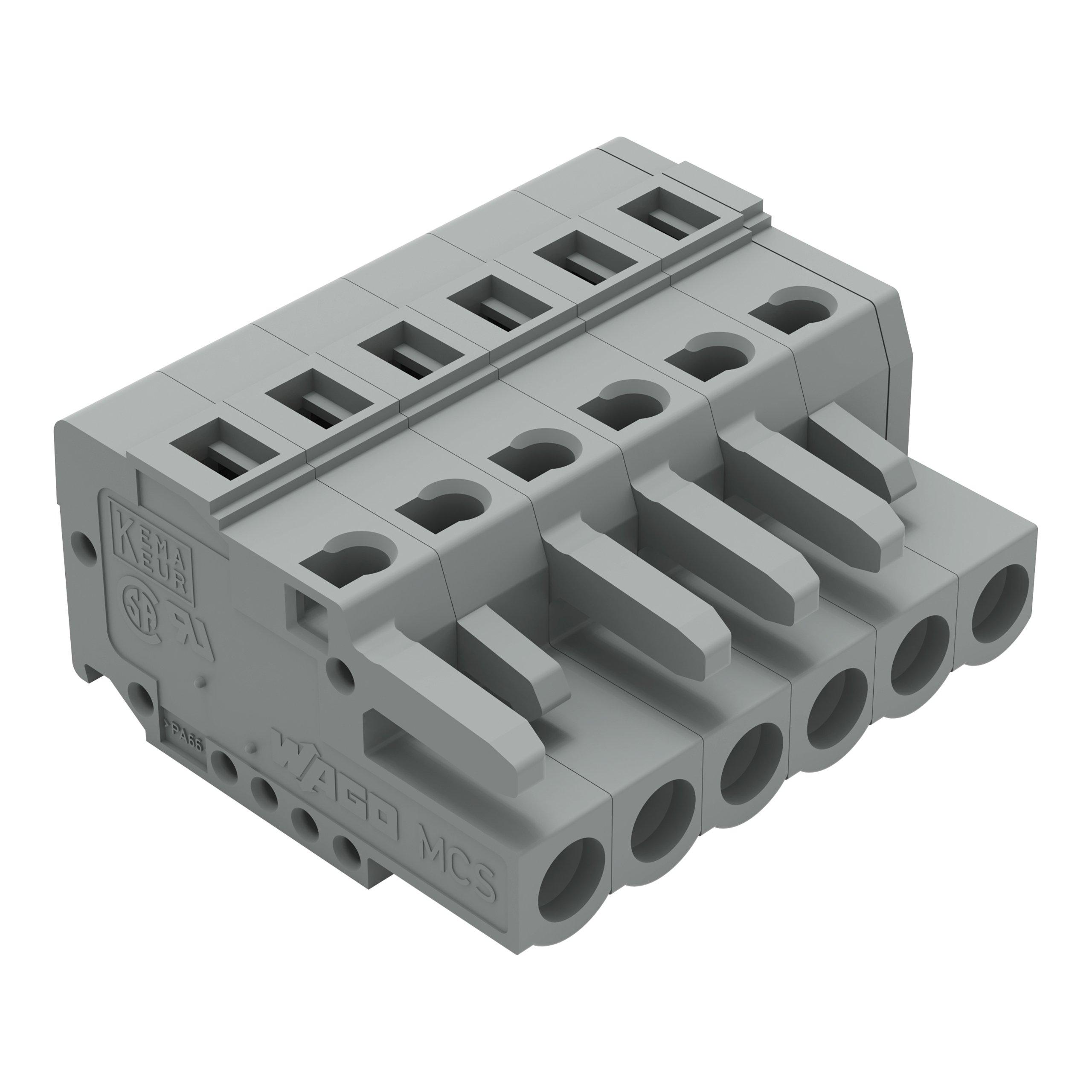

WAGO 231-106/026-000 Female plug
Part Number # 231-106/026-000
SKU # 1739020
Wago 231-106/026-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-106/026-000 |
| SKU #: | 1739020 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.563 in H x 1.24 in W x 1.041 in D, 0.563�in H x 1.24�in W x 1.041�in D |
| Number of Poles: | 6 |
| Series: | 231 |
| Spacing: | 5 mm |
| Temperature Rating (Degrees F): | -60 to +85 deg C |
| Terminal Type: | Cage |
| Type: | 1-Conductor |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Female Socket |
| Connector (connection type): | For conductor |
| Contact material: | Copper alloy |
| Country of origin: | DE |
| Depth: | 26.45 mm / 1.041 inch |
| Height: | 14.3 mm / 0.563 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide (PA66) |
| Mounting type: | DIN Rail |
| Number of connection types: | 1 |
| Rated current: | 16 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 6 |
| Weight: | 10.741 g |
| Width: | 31.5 mm / 1.24 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918339285 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 231-106/026-000 Female plug
Brand: Wago
Part Number: 231-106/026-000
WAGO, 231-106/026-000, Female Plug, 1-Conductor, Series: 231, 320 V, 16 A, 4 kV Power, 6 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, Cage Terminal, 5 | mm Spacing, DIN Rail Mounting, Female Socket Connection, -60 to +85 deg C, Polyamide (PA66), Gray, 0.563 in H x 1.24 in W x 1.041 in D Dimensions
Additional Description: WAGO-231-106/026-000 1-CONDUCTOR FEMALE PLUG; 2.5 MM; PIN SPACING 5 MM; 6-POLE; 2,50 MM; GRAY 51116674
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 6-pole; 2,50 mm²; gray
231-106/026-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Integrated test ports
- With coding fingers
231-106/026-000 Standards
RoHS CompliantSKU #1739020Part Number #231-106/026-000UNSPSC39121459UPC04044918339285
