Part Number # 231-107/031-000
SKU # 2399035
Brand: Wago
231-107/031-000

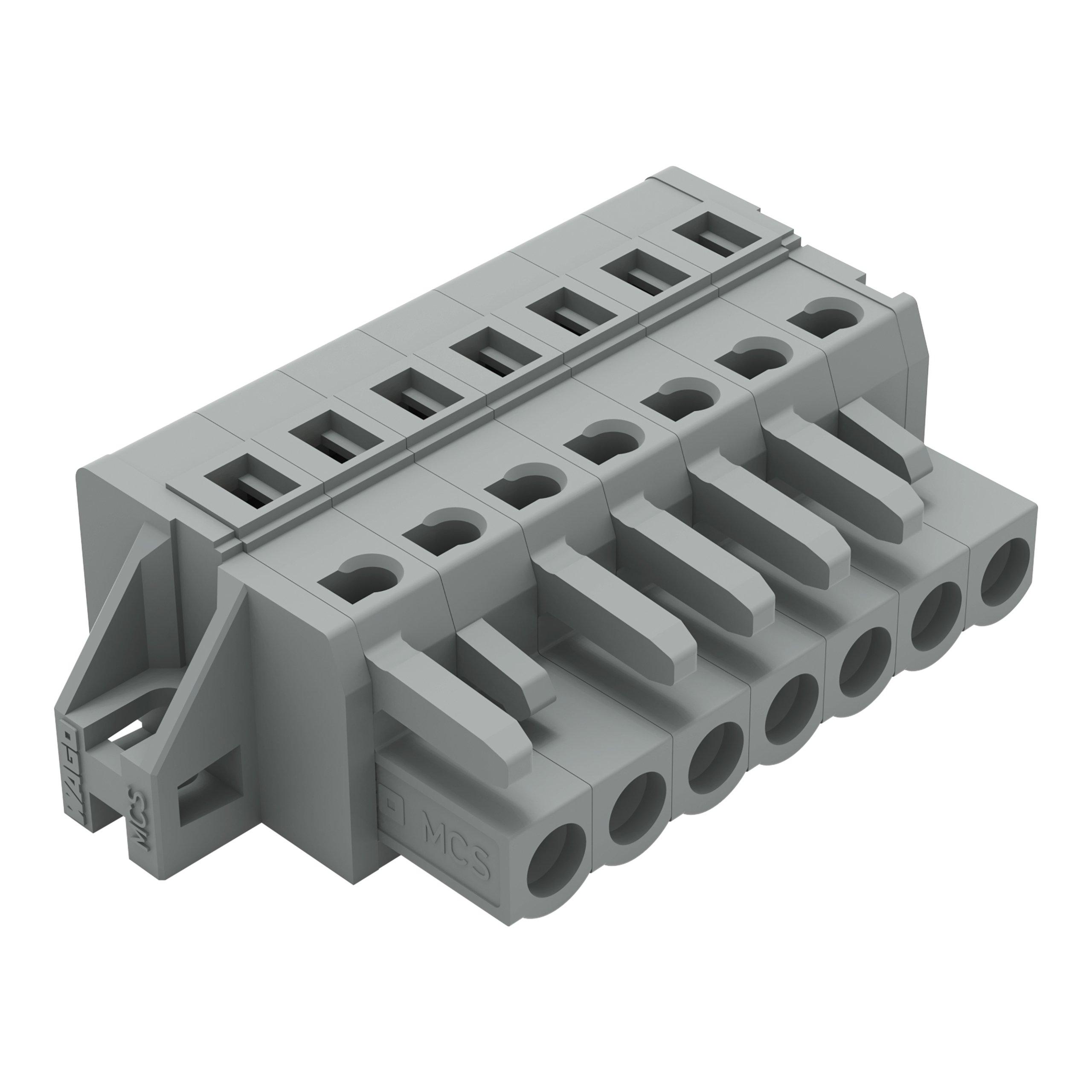

WAGO 231-107/031-000 Electrical Connector Assembly
Part Number # 231-107/031-000
SKU # 2399035
$7.72 / Each
Typical price:$8.36 / Each
Wago 231-107/031-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-107/031-000 |
| SKU #: | 2399035 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.563 in H x 1.961 in W x 1.041 in D |
| Number of Poles: | 7 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Clamp |
| Material: | Polyamide |
| Mounting type: | Panel, Panel Feed Through |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918339780 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7.72 / Each
Typical price:$8.36 / Each
Quantity:
WAGO 231-107/031-000 Electrical Connector Assembly
Brand: Wago
Part Number: 231-107/031-000
Additional Description: WAGO-231-107/031-000 1-CONDUCTOR FEMALE PLUG; CLAMPING COLLAR; 2.5 MM; PIN SPACING 5 MM; 7-POLE; 2,50 MM; GRAY 51116724 7-POLE; 2,50 MM ; GRAY
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 7-pole; clamping collar; 2,50 mm²; gray
231-107/031-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Integrated test ports
- With coding fingers
231-107/031-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2399035Part Number #231-107/031-000UNSPSC39121421UPC04044918339780
Image provided may only be a representation of final product and may include optional equipment
