Part Number # 231-108/026-000
SKU # 970086
Image Disclaimers Message
231-108/026-000

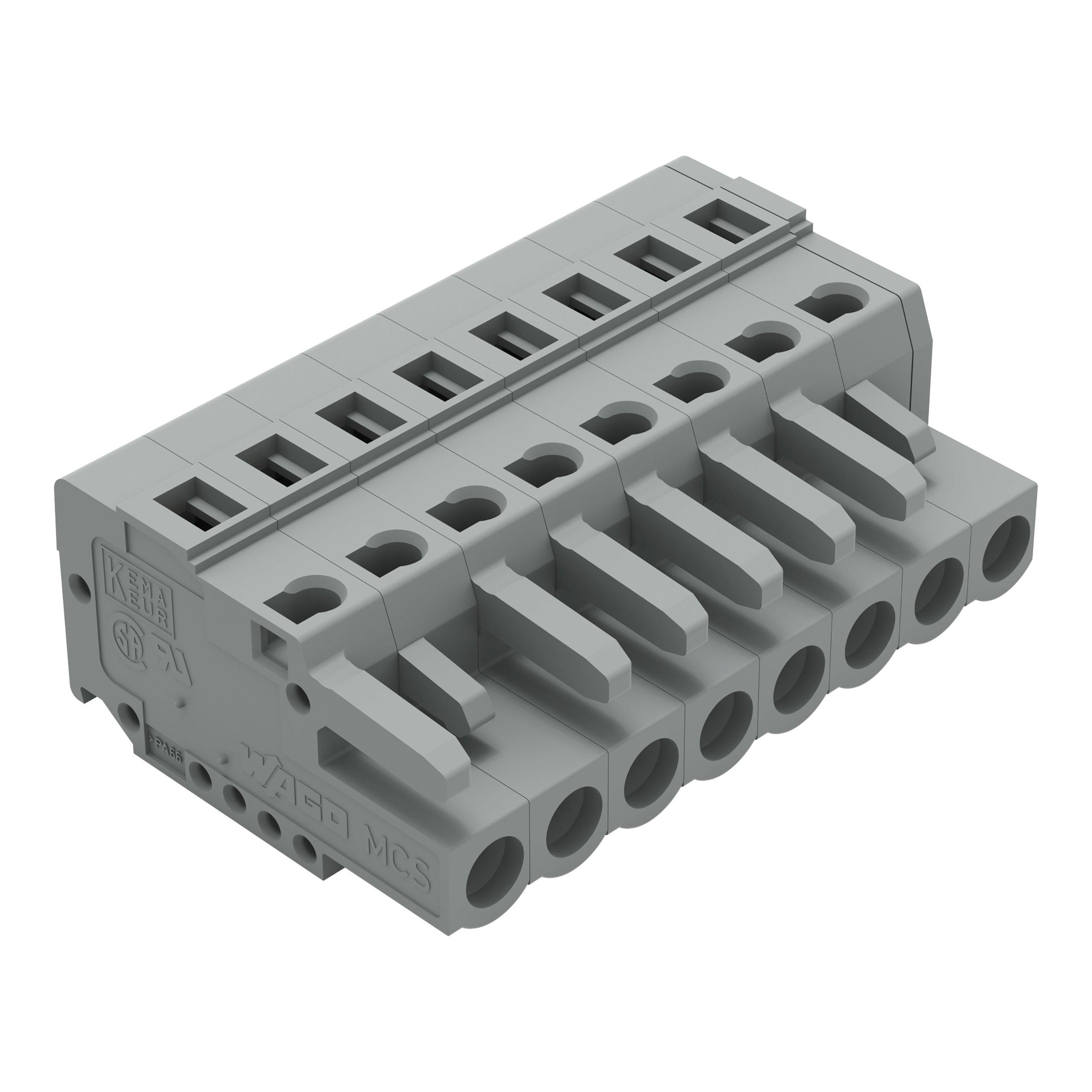

WAGO 231-108/026-000 Female plug
Part Number # 231-108/026-000
SKU # 970086
Wago 231-108/026-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-108/026-000 |
| SKU #: | 970086 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.563 in H x 1.634 in W x 1.041 in D |
| Number of Poles: | 8 |
| Series: | 231 |
| Spacing: | 5 mm |
| Type: | 1-Conductor |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Connector (connection type): | For conductor |
| Contact material: | Copper alloy |
| Country of origin: | DE |
| Depth: | 26.45 mm / 1.041 inch |
| Height: | 14.3 mm / 0.563 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 16 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 8 |
| Weight: | 14.480 g |
| Width: | 41.5 mm / 1.634 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918339919 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 231-108/026-000 Female plug
Brand: Wago
Part Number: 231-108/026-000
Wago 231-108/026-000 Female Connector, 231 Series, 1.634 IN Width X 1.041 IN Depth X 0.563 IN Height, Cage Clamp Connection, Wire Size: 28 - 12 AWG, 8 Conductor, 8 Pole, Gray, 630 V, 16 AMP, Pollution degree: 2, Solid Wire, Strip Length: 8 - 9 MM, 0.197 IN Pin Spacing, RoHS Compliant, ABS 04-HG469925/1-PDA, BV 11915/A0, CCA 5764, CSA 154112-1466354, GL 17296-00HH, KEMA 2083746.02, KR HMB05880-EL003, LR 96/20035, RMR 11130002, UL E45171 And E45172 Listed
Additional Description: WAGO-231-108/026-000 1-CONDUCTOR FEMALE PLUG; 2.5 MM ; PIN SPACING 5 MM; 8-POLE; 2,50 MM ; GRAY 51116737
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 8-pole; 2,50 mm²; gray
231-108/026-000 Includes
Connectors231-108/026-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal Cage clamp actuation
- Integrated test ports
- With coding fingers
231-108/026-000 Standards
RoHS Compliant|UL94|IEC/EN 60664-1|DIN EN 61984|UL 1059|CSA CertifiedSKU #970086Part Number #231-108/026-000UNSPSC39121459UPC04044918339919
