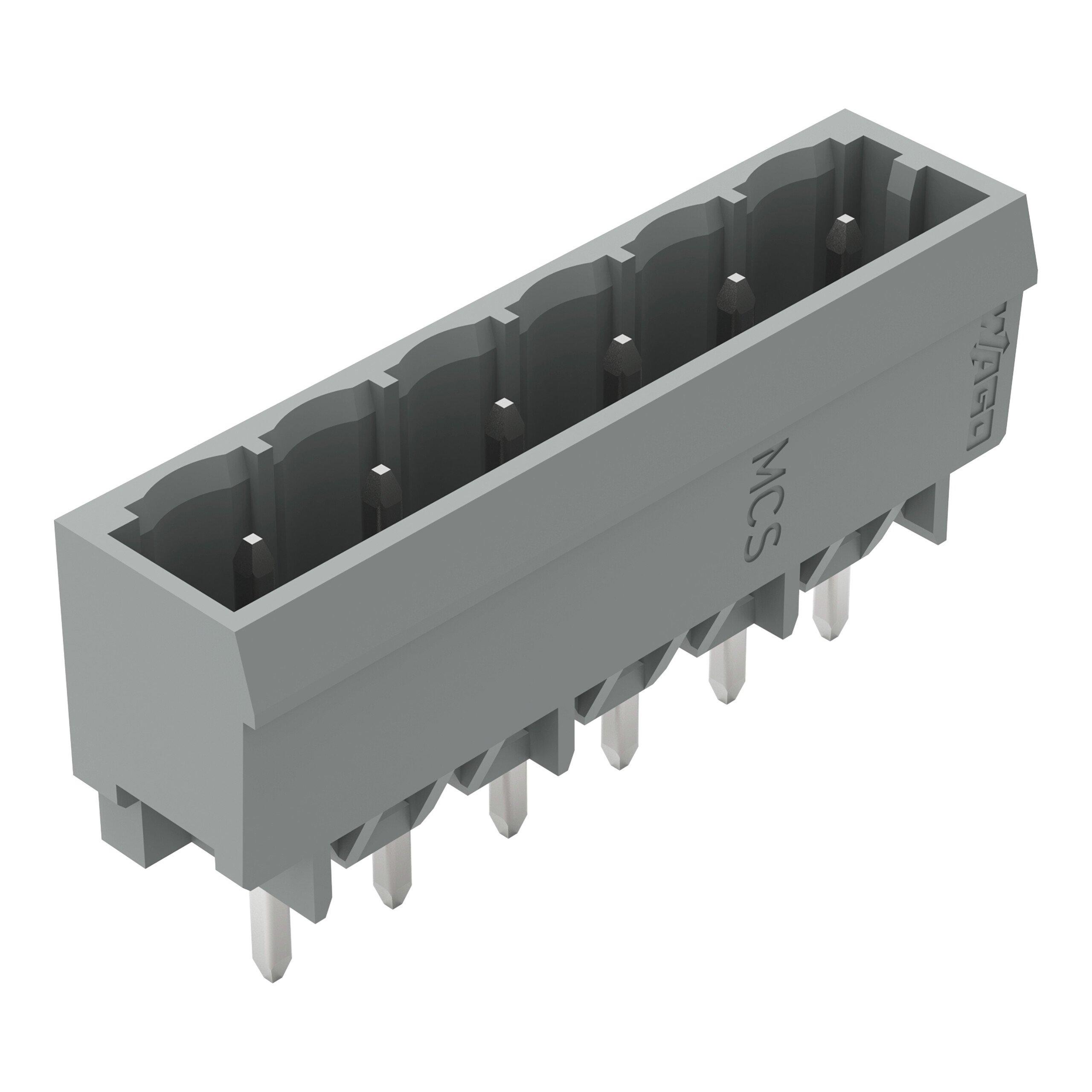

WAGO 231-136/001-000 Male header

2377905 MFG #: 231-136/001-000
$1.75 / EA
Usually Ships within 5-8 Days
  • Approvals per: CSA, UL 1059
  • Color: Gray
  • Connector (connection type): For PCB
  • Contact material: Electrolytic copper (ECu)
  • Contact type (pluggable connector): Male connector/plug
  • Country of origin: PL
  • Depth: 8.4 mm / 0.331 inch
  • Height: 17 mm / 0.669 inch
  • Insulation material: Polyamide (PA66)
  • Number of connection types: 1
  • Rated current: 0
  • Weight: 1.968 g
  • Width: 33.2 mm / 1.307 inch

WAGO 231-136/001-000 Male header

Additional Description: WAGO-231-136/001-000 THT MALE HEADER; 1.0 X 1.0 MM SOLDER PIN; STRAIGHT; PIN SPACING 5 MM; 6-POLE; GRAY 60345289
