Brand: Wago
WAGO 231-144/001-000 Male header
Image Disclaimers Message
Brand: Wago
WAGO 231-144/001-000 Male header
Brand: Wago
WAGO 231-144/001-000 Male header
Part #:231-144/001-000
SKU #: 2377909
$4.44/EA
Key Features
Part #:231-144/001-000
SKU #: 2377909
Brand: Wago
Approvals per: CSA, UL 1059
Color: Gray
Connector (connection type): For PCB
Contact material: Electrolytic copper (ECu)
Contact type (pluggable connector): Male connector/plug
$4.44/EA
Specifications
Brand: Wago
Approvals per: CSA, UL 1059
Color: Gray
Connector (connection type): For PCB
Contact material: Electrolytic copper (ECu)
Contact type (pluggable connector): Male connector/plug
Country of origin: PL
Depth: 8.4 mm / 0.331 inch
Height: 17 mm / 0.669 inch
Insulation material: Polyamide (PA66)
Number of connection types: 1
Rated current: 0
Weight: 4.492 g
Width: 73.2 mm / 2.882 inch
UNSPSC: 39121459
UPC: 04044918863704
WAGO 231-144/001-000 Male header
Additional Description: WAGO-231-144/001-000 THT MALE HEADER; 1.0 X 1.0 MM SOLDER PIN; STRAIGHT; PIN SPACING 5 MM; 14-POLE; GRAY 51148975 MM; 14-POLE; GRAY 60345172

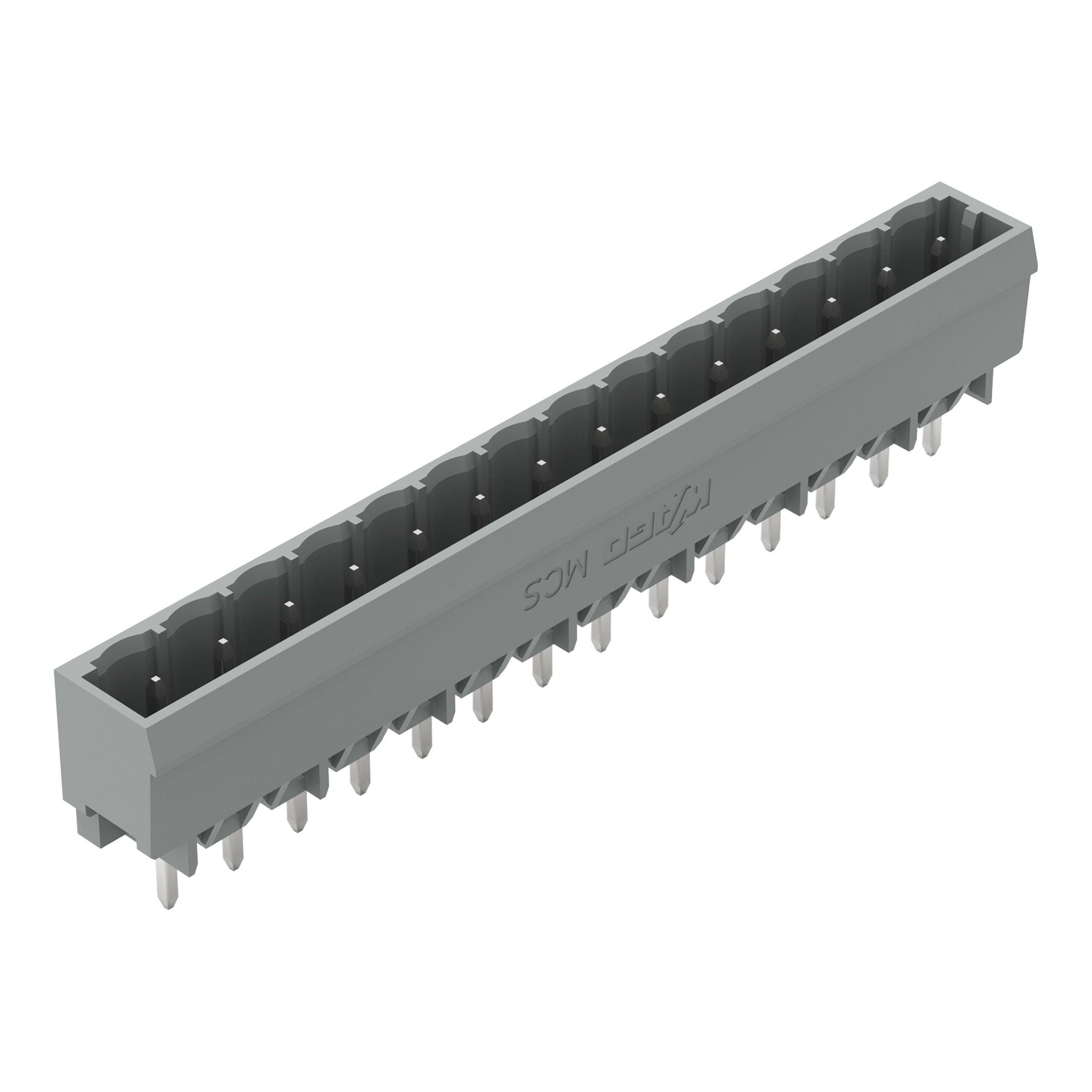

Catalog Description: THT male header; 1.0 x 1.0 mm solder pin; straight; Pin spacing 5 mm; 14-pole; gray
