Part Number # 231-170/003-000
SKU # 2261975
Image Disclaimers Message
231-170/003-000

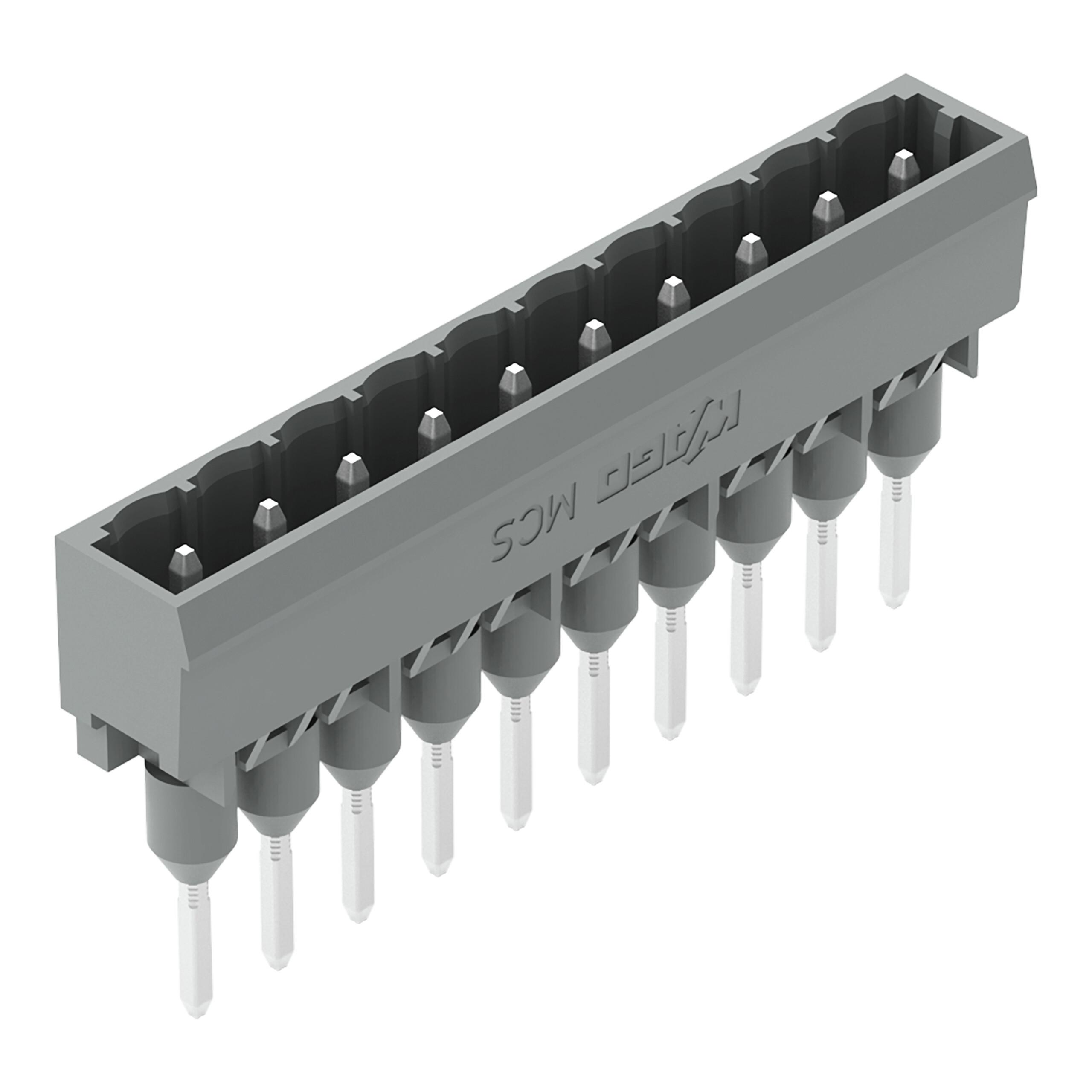

WAGO 231-170/003-000 Male header
Part Number # 231-170/003-000
SKU # 2261975
$5.58 / Each
Typical price:$6.05 / Each
Wago 231-170/003-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-170/003-000 |
| SKU #: | 2261975 |
| Amperage Rating: | 16 A |
| Dimensions: | 1.02 in H x 2.094 in W x 0.331 in D |
| Number of Positions: | 10 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Straight |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Connector (connection type): | For front-entry rail-mount terminal block |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | PL |
| Depth: | 8.4 mm / 0.331 inch |
| Height: | 25.9 mm / 1.02 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 16 A |
| Weight: | 5.720 g |
| Width: | 53.2 mm / 2.094 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918905312 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.58 / Each
Typical price:$6.05 / Each
Quantity:
WAGO 231-170/003-000 Male header
Brand: Wago
Part Number: 231-170/003-000
Additional Description: WAGO-231-170/003-000 MALE CONNECTOR FOR RAIL-MOUNT TERMINAL BLOCKS; 1.2 X 1.2 MM PINS; STRAIGHT; PIN SPACING 5 MM; 10-POLE; GRAY 51151021 TERMINAL BLOCKS; 1.2 X 1.2 MM PINS; 10-POLE; GRAY 51151021
Catalog Description: Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 10-pole; gray
231-170/003-000 Item Features
- Pluggable connectors for rail-mount terminal blocks equipped with CAGE CLAMP connection
- Male connectors with long contact pins connect to the termination ports of 280 Series Rail-Mount Terminal Blocks
- Pins can be touched when the connector is unplugged, so power supply should be performed via terminal block (observe rated voltage)
- With coding fingers
231-170/003-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2261975Part Number #231-170/003-000UNSPSC39121459UPC04044918905312
