Part Number # 231-2209/037-000
SKU # 2236871
Image Disclaimers Message
231-2209/037-000

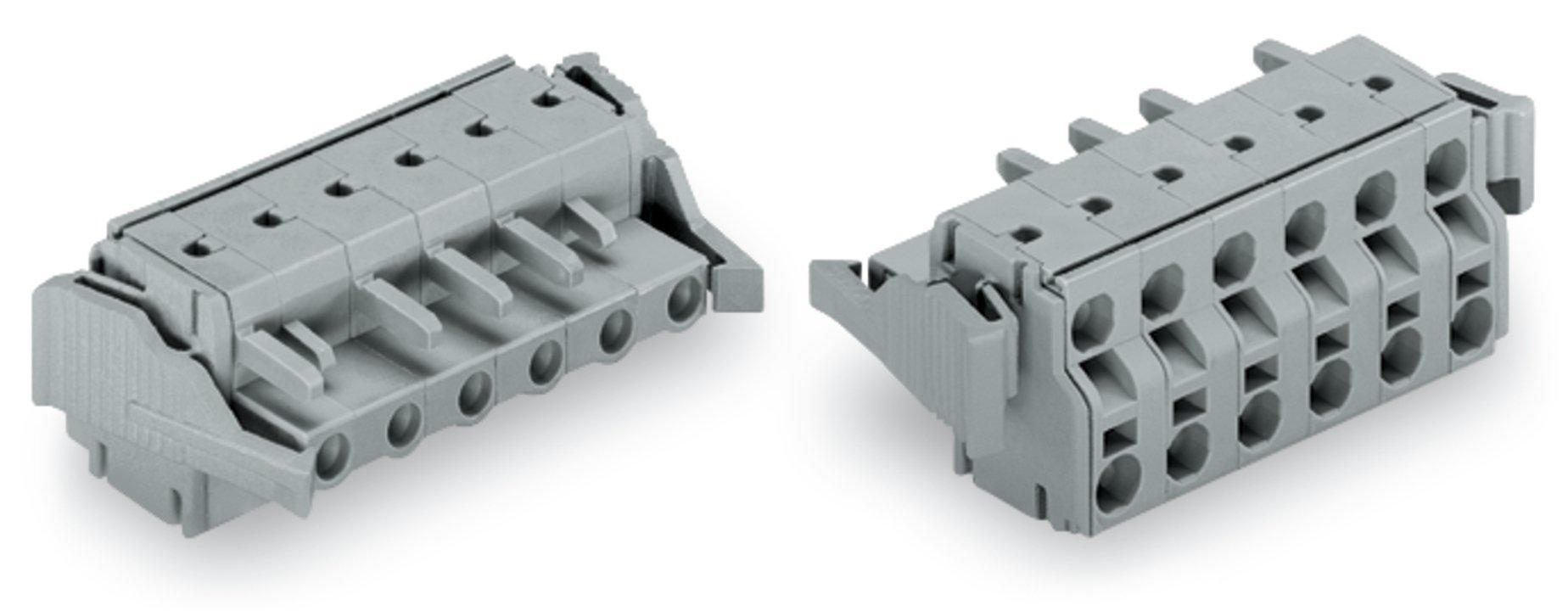

WAGO 231-2209/037-000 2-conductor female connector
Part Number # 231-2209/037-000
SKU # 2236871
$15.47 / Each
Typical price:$16.76 / Each
Wago 231-2209/037-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-2209/037-000 |
| SKU #: | 2236871 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.819 in H x 3.211 in W x 1.173 in D |
| Number of Poles: | 9 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 24 to 12 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Connector (connection type): | For conductor |
| Contact material: | Copper alloy |
| Country of origin: | PL |
| Depth: | 29.8 mm / 1.173 inch |
| Height: | 20.8 mm / 0.819 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 16 A |
| Solid conductor: | 0.2 … 2.5 mm² / 24 … 12 AWG |
| Total number of connection points: | 18 |
| Weight: | 26.476 g |
| Width: | 81.55 mm / 3.211 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918563888 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$15.47 / Each
Typical price:$16.76 / Each
Quantity:
- WAGO, 231-2209/037-000, 2-Conductor Female Connector, Operating Tool, 1 kV, 16 A, 9 Pole, 24 to 12 AWG Wire, 0.35 to 0.39 in Wire Strip Length, Push-In Connection, -35 to 60 deg C, Polyamide, Gray, 0.819 in H x 3.211 in W x 1.173 in D Dimensions
231-2209/037-000 Item Features
- Universal connection for all conductor types
- Two conductor entries per pole
- Bus connection is retained, even when unmated
- Push-in termination of solid and ferruled conductors
- With coding fingers
231-2209/037-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2236871Part Number #231-2209/037-000UNSPSC39121459UPC04044918563888
