Part Number # 231-2305/037-000
SKU # 2317750
Image Disclaimers Message
231-2305/037-000

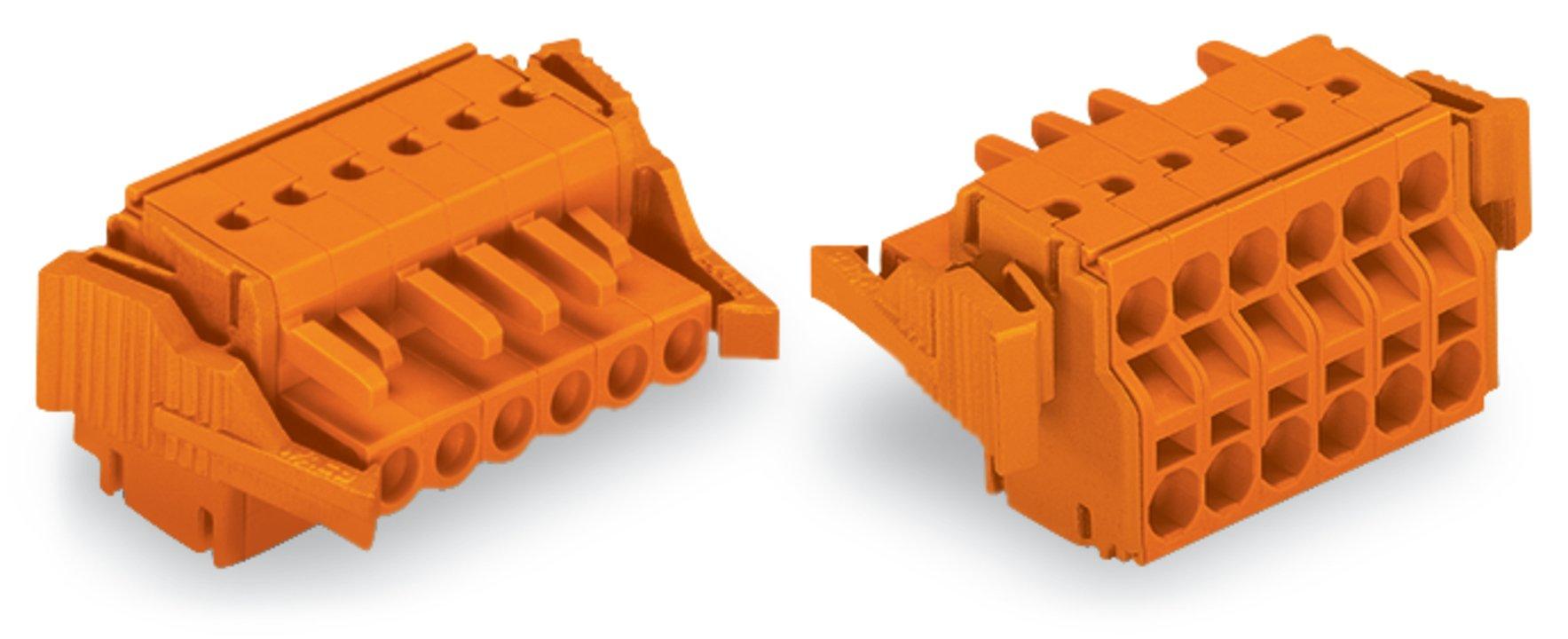

WAGO 231-2305/037-000 2-conductor female connector
Part Number # 231-2305/037-000
SKU # 2317750
$8.50 / Each
Typical price:$9.21 / Each
Wago 231-2305/037-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-2305/037-000 |
| SKU #: | 2317750 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.819 in H x 1.645 in W x 1.173 in D |
| Number of Poles: | 5 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 24 to 12 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Orange |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Connector (connection type): | For conductor |
| Contact material: | Copper alloy |
| Country of origin: | PL |
| Depth: | 29.8 mm / 1.173 inch |
| Height: | 20.8 mm / 0.819 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 16 A |
| Solid conductor: | 0.2 … 2.5 mm² / 24 … 12 AWG |
| Total number of connection points: | 10 |
| Weight: | 12.780 g |
| Width: | 41.79 mm / 1.645 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918564472 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.50 / Each
Typical price:$9.21 / Each
Quantity:
WAGO 231-2305/037-000 2-conductor female connector
Brand: Wago
Part Number: 231-2305/037-000
Additional Description: WAGO-231-2305/037-000 2-CONDUCTOR FEMALE CONNECTOR; LOCKING LEVER; 2.5 MM ; PIN SPACING 5.08 MM; 5-POLE; 2,50 MM ; ORANGE 51134285
Catalog Description: 2-conductor female connector; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 5-pole; Lateral locking levers; 2,50 mm²; orange
231-2305/037-000 Item Features
- Universal connection for all conductor types
- Two conductor entries per pole
- Bus connection is retained, even when unmated
- Push-in termination of solid and ferruled conductors
- With coding fingers
231-2305/037-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2317750Part Number #231-2305/037-000UNSPSC39121459UPC04044918564472
