Brand: Wago
231-2305/107-000

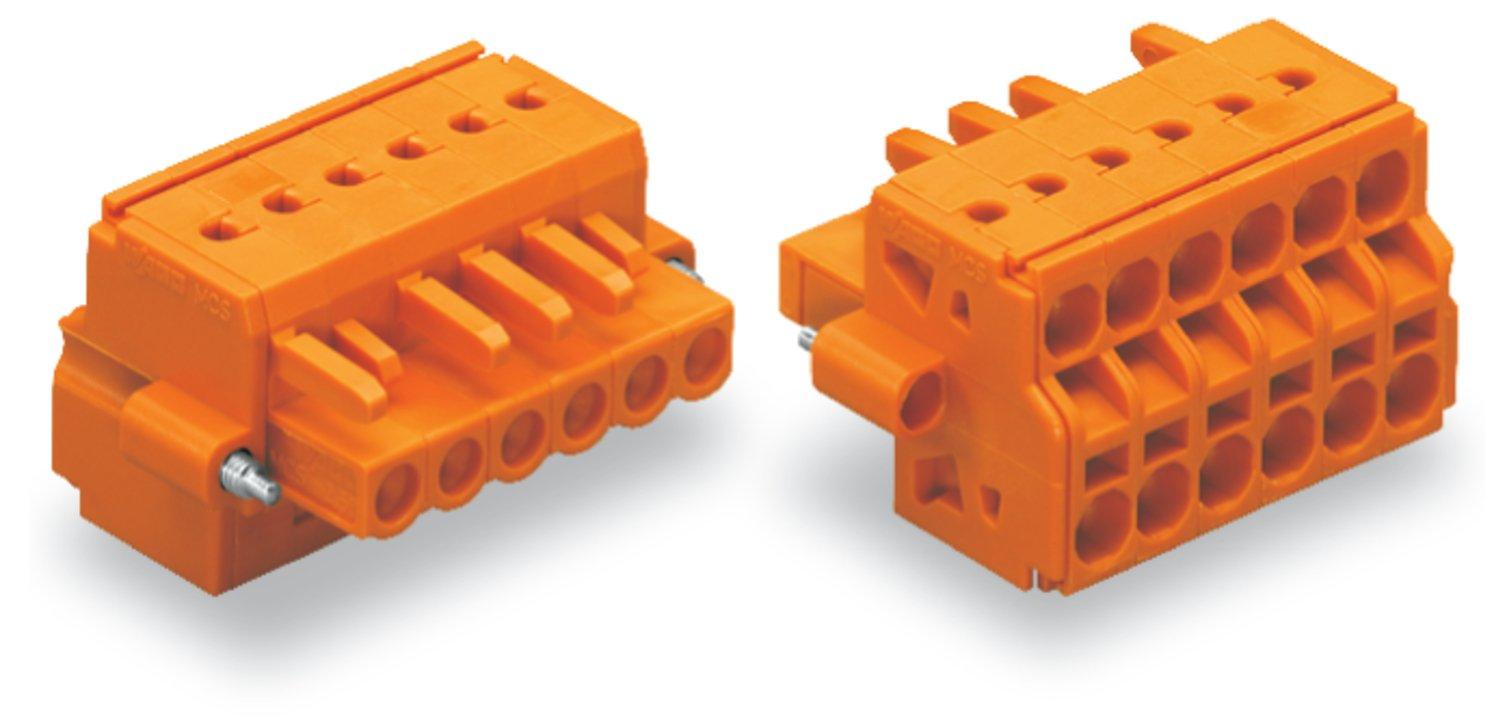

WAGO 231-2305/107-000 2-conductor female connector
Part Number # 231-2305/107-000
SKU # 2387412
$9.18 / Each
Typical price:$9.94 / Each
Wago 231-2305/107-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-2305/107-000 |
| SKU #: | 2387412 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.819 in H x 1.387 in W x 1.041 in D |
| Number of Poles: | 5 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 24 to 12 AWG |
| Connection type: | Push-In |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04045454356521 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$9.18 / Each
Typical price:$9.94 / Each
Quantity:
WAGO 231-2305/107-000 2-conductor female connector
Brand: Wago
Part Number: 231-2305/107-000
Additional Description: WAGO-231-2305/107-000 2-CONDUCTOR FEMALE CONNECTOR; SCREW FLANGE; 2.5 MM; PIN SPACING 5.08 MM; 5-POLE; 2,50 MM; ORANGE 51178808 MM; 5-POLE; 2,50 MM; ORANGE
Catalog Description: 2-conductor female connector; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 5-pole; Screw flange; 2,50 mm²; orange
231-2305/107-000 Item Features
- Universal connection for all conductor types
- Two conductor entries per pole
- Bus connection is retained, even when unmated
- Push-in termination of solid and ferruled conductors
- With coding fingers
231-2305/107-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2387412Part Number #231-2305/107-000UNSPSC39121421UPC04045454356521
