Part Number # 231-304/107-000
SKU # 2415992
231-304/107-000

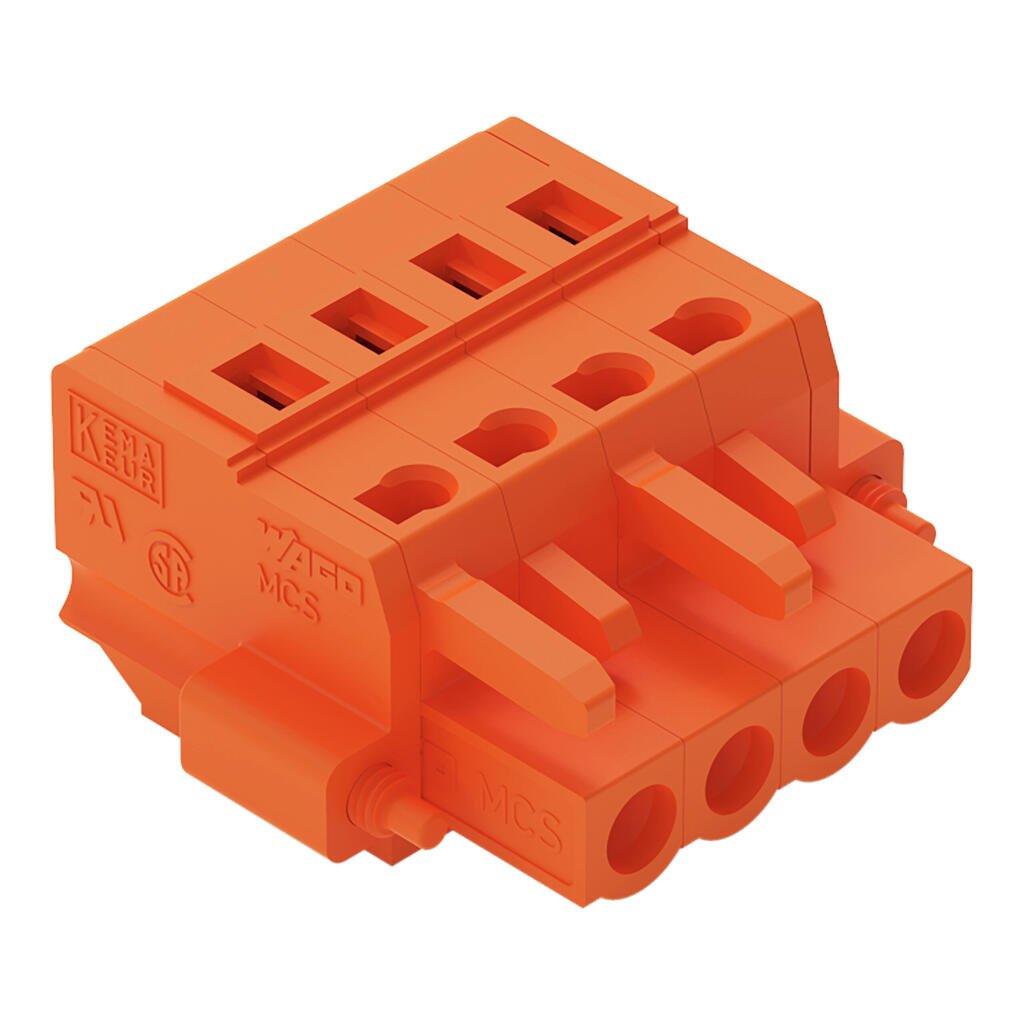

WAGO 231-304/107-000 Electrical Connector Assembly
Part Number # 231-304/107-000
SKU # 2415992
$5.39 / Each
Typical price:$5.84 / Each
Wago 231-304/107-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-304/107-000 |
| SKU #: | 2415992 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.563 in H x 1.19 in W x 1.041 in D |
| Number of Poles: | 4 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Clamp |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918370271 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.39 / Each
Typical price:$5.84 / Each
Quantity:
WAGO 231-304/107-000 Electrical Connector Assembly
Brand: Wago
Part Number: 231-304/107-000
Additional Description: WAGO-231-304/107-000 1-CONDUCTOR FEMALE PLUG; SCREW 51119345 MM; 4-POLE; 2,50 MM; ORANGE
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 4-pole; Screw flange; 2,50 mm²; orange
231-304/107-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Integrated test ports
- With coding fingers
231-304/107-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2415992Part Number #231-304/107-000UNSPSC39121421UPC04044918370271
Image provided may only be a representation of final product and may include optional equipment
