Brand: Wago
231-306/107-000

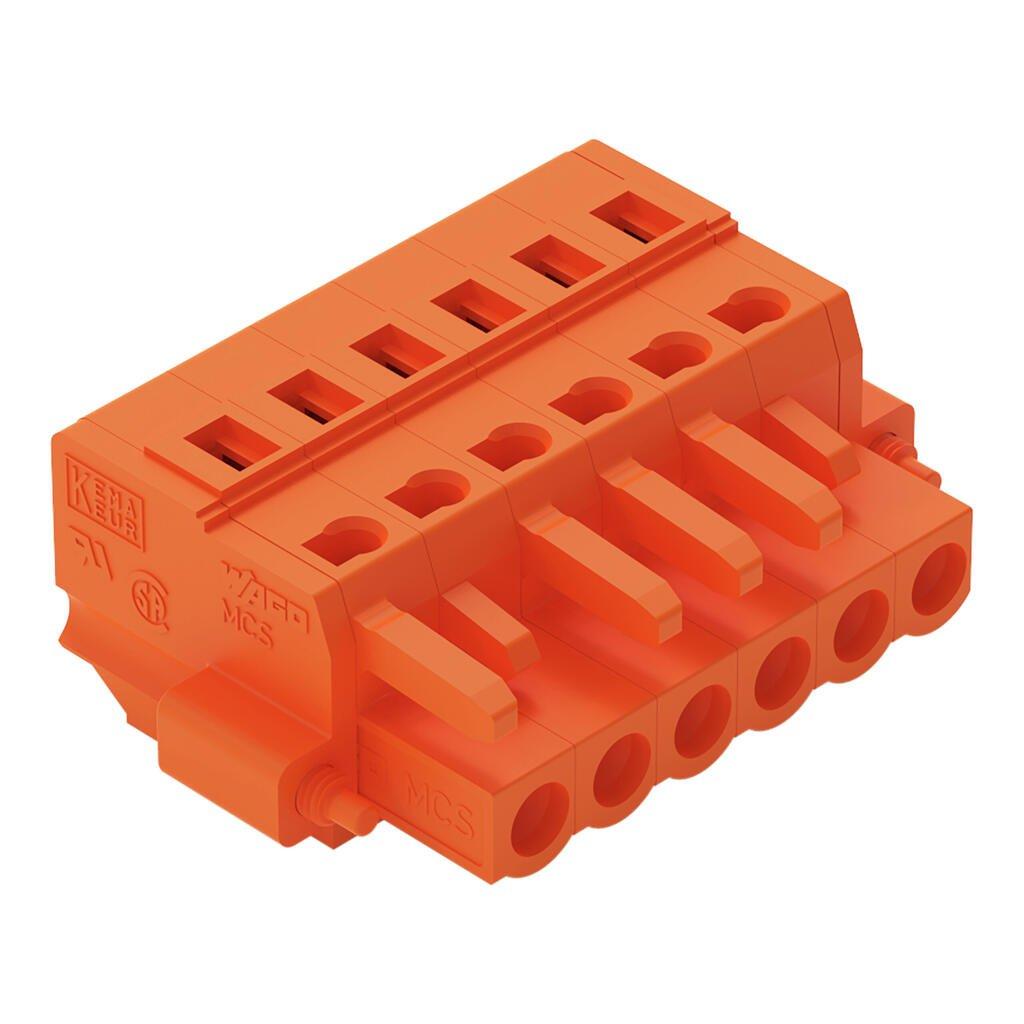

WAGO 231-306/107-000 Female plug
Part Number # 231-306/107-000
SKU # 2387410
$7.24 / Each
Typical price:$7.84 / Each
Wago 231-306/107-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-306/107-000 |
| SKU #: | 2387410 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.563 in H x 1.59 in W x 1.041 in D |
| Number of Poles: | 6 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Color: | Orange |
| Connection type: | Clamp |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918370585 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7.24 / Each
Typical price:$7.84 / Each
Quantity:
WAGO 231-306/107-000 Female plug
Brand: Wago
Part Number: 231-306/107-000
Additional Description: WAGO-231-306/107-000 1-CONDUCTOR FEMALE PLUG; SCREW FLANGE; 2.5 MM; PIN SPACING 5.08 MM; 6-POLE; 2,50 MM; ORANGE 51119376 MM; 6-POLE; 2,50 MM; ORANGE
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 6-pole; Screw flange; 2,50 mm²; orange
231-306/107-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Integrated test ports
- With coding fingers
231-306/107-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2387410Part Number #231-306/107-000UNSPSC39121421UPC04044918370585
