Brand: Wago

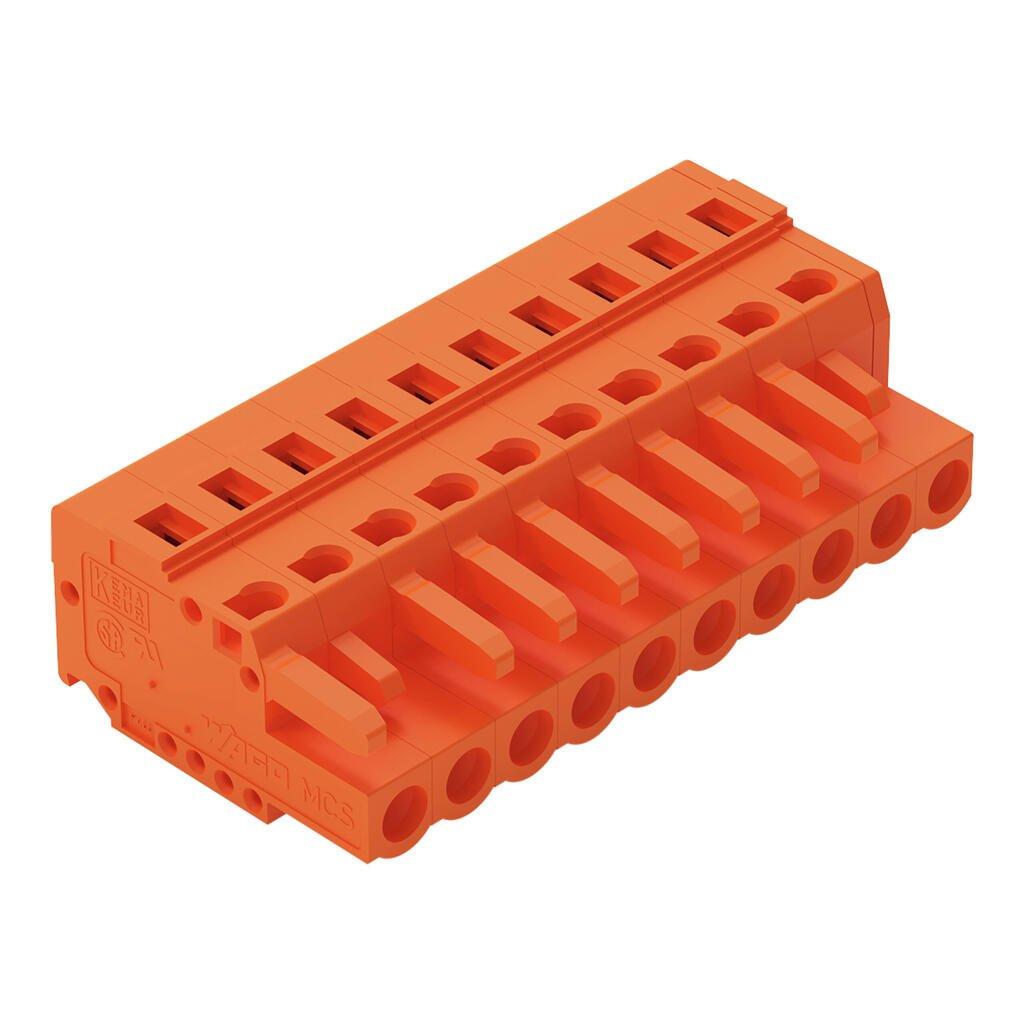

WAGO 231-310/026-000 1-conductor female plug
Image Disclaimers Message
Brand: Wago
WAGO 231-310/026-000 1-conductor female plug
Brand: Wago
WAGO 231-310/026-000 1-conductor female plug
Part #:231-310/026-000
SKU #: 2377931
$8.80/EA
Key Features
Part #:231-310/026-000
SKU #: 2377931
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Orange
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
$8.80/EA
Specifications
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Orange
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Copper alloy
Contact type (pluggable connector): Female connector/socket
Country of origin: DE
Depth: 26.45 mm / 1.041 inch
Height: 14.3 mm / 0.563 inch
Insulation material: Polyamide (PA66)
Number of connection types: 1
Rated current: 16 A
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 10
Weight: 18.253 g
Width: 47.22 mm / 1.859 inch
UNSPSC: 39121459
UPC: 04044918347891
WAGO 231-310/026-000 1-conductor female plug
Additional Description: WAGO-231-310/026-000 1-CONDUCTOR FEMALE PLUG; 2.5 MM; PIN SPACING 5.08 MM; 10-POLE; 2,50 MM; ORANGE 51117535 MM ; ORANGE 51117535
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 10-pole; 2,50 mm²; orange
