Brand: Wago

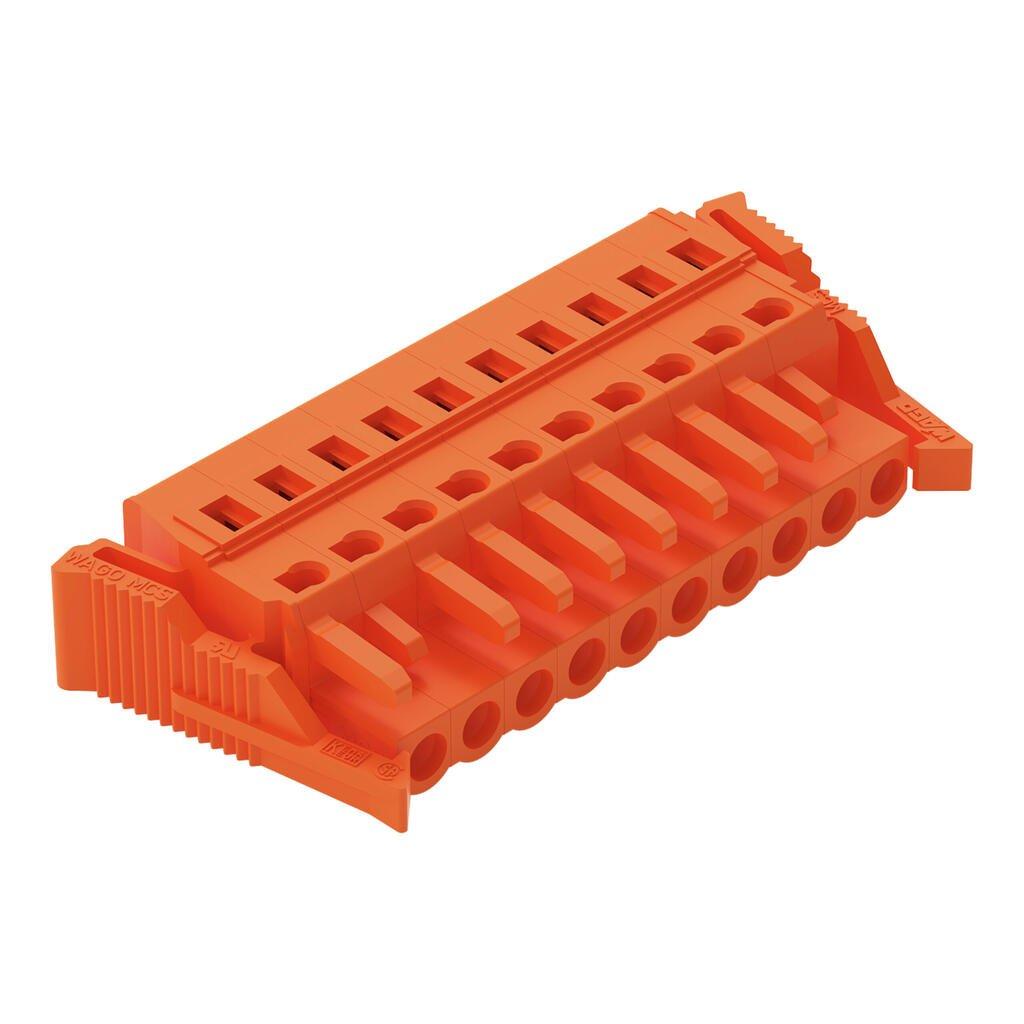

WAGO 231-310/037-000 1-conductor female plug
Image Disclaimers Message
Brand: Wago
WAGO 231-310/037-000 1-conductor female plug
Brand: Wago
WAGO 231-310/037-000 1-conductor female plug
Part #:231-310/037-000
SKU #: 2243993
$9.23/EA
Key Features
Part #:231-310/037-000
SKU #: 2243993
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Orange
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
$9.23/EA
Specifications
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Orange
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Copper alloy
Contact type (pluggable connector): Female connector/socket
Country of origin: DE
Depth: 29.6 mm / 1.165 inch
Height: 14.3 mm / 0.563 inch
Insulation material: Polyamide (PA66)
Number of connection types: 1
Rated current: 16 A
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 10
Weight: 19.700 g
Width: 67.4 mm / 2.654 inch
UNSPSC: 39121459
UPC: 04044918348188
WAGO 231-310/037-000 1-conductor female plug
Additional Description: WAGO-231-310/037-000 1-CONDUCTOR FEMALE PLUG; LOCKING LEVER; 2.5 MM ; PIN SPACING 5.08 MM; 10-POLE; 2,50 MM ; ORANGE 51117564
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 10-pole; Lateral locking levers; 2,50 mm²; orange
