231-315/026-000
WAGO 231-315/026-000 1-conductor female plug
Part Number # 231-315/026-000
SKU # 2223519
Wago 231-315/026-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-315/026-000 |
| SKU #: | 2223519 |
| Dimensions: | 0.563 in H x 3.059 in W x 1.041 in D |
| Type: | Operating Tool |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918349048 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 231-315/026-000 1-conductor female plug
Brand: Wago
Part Number: 231-315/026-000
WAGO, 231-315/026-000, 1-Conductor Female Connector, Operating Tool, 630 V, 16 A, 15 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, Clamp Connection, -35 to 60 deg C, Polyamide, Orange, 0.563 in H x 3.059 in W x 1.041 in D Dimensions
Additional Description: WAGO-231-315/026-000 1-CONDUCTOR FEMALE PLUG; 2.5 MM; PIN SPACING 5.08 MM; 15-POLE; 2,50 MM; ORANGE 51117650 MM ; ORANGE 51117650
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 15-pole; orange
231-315/026-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Integrated test ports
- With coding fingers
231-315/026-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2223519Part Number #231-315/026-000UNSPSC39121459UPC04044918349048

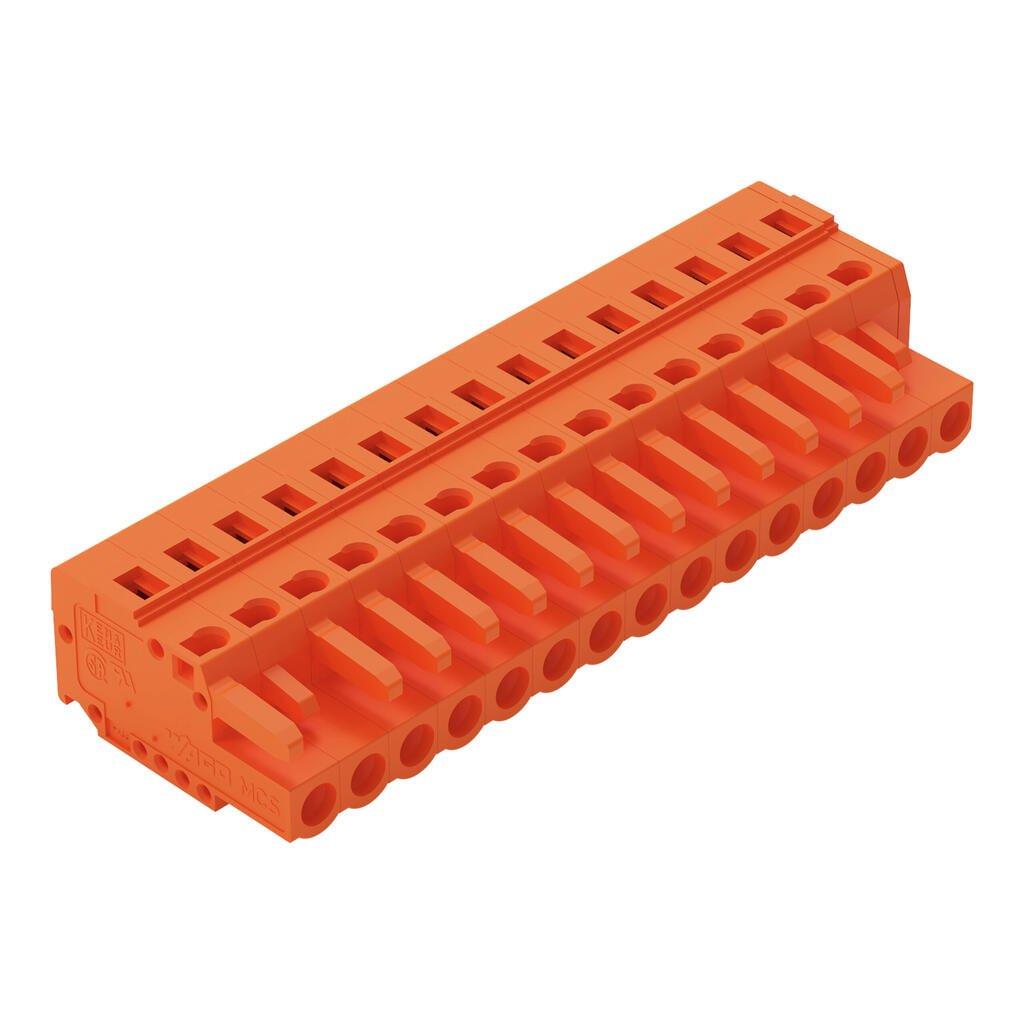

Image provided may only be a representation of final product and may include optional equipment
