231-543/001-000

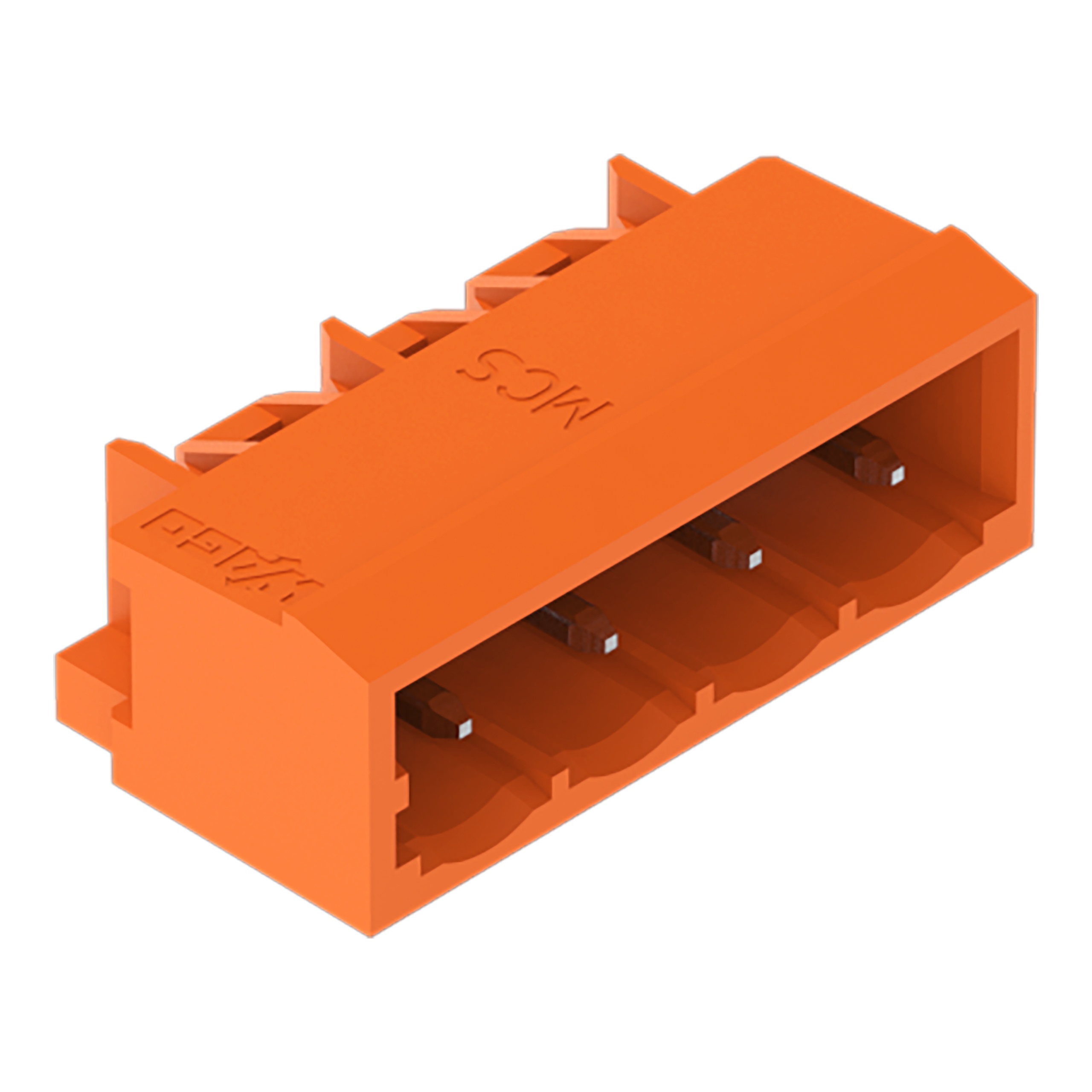

WAGO 231-543/001-000 Electrical Connector Assembly
Part Number # 231-543/001-000
SKU # 2355564
$4.79 / Each
Typical price:$5.19 / Each
Wago 231-543/001-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-543/001-000 |
| SKU #: | 2355564 |
| Amperage Rating: | 12 A |
| Dimensions: | 0.48 in H x 2.723 in W x 0.472 in D |
| Number of Positions: | 13 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Angled |
| Approvals per: | CSA, UL 1059 |
| Color: | Orange |
| Connector (connection type): | For PCB |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | PL |
| Depth: | 12 mm / 0.472 inch |
| Height: | 12.2 mm / 0.48 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 0 |
| Weight: | 4.164 g |
| Width: | 69.16 mm / 2.723 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918867313 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.79 / Each
Typical price:$5.19 / Each
Quantity:
- WAGO, 231-543/001-000, THT Male Header, Angled, 630 V, 12 A, 13 Positions, 0.2 in Pitch/Row Spacing, -35 to 60 deg C, Polyamide, Orange, 0.48 in H x 2.723 in W x 0.472 in D Dimensions
231-543/001-000 Item Features
- Horizontal or vertical PCB mounting via straight or angled solder pins
- With coding fingers
231-543/001-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2355564Part Number #231-543/001-000UNSPSC39121421UPC04044918867313
