231-602/114-000

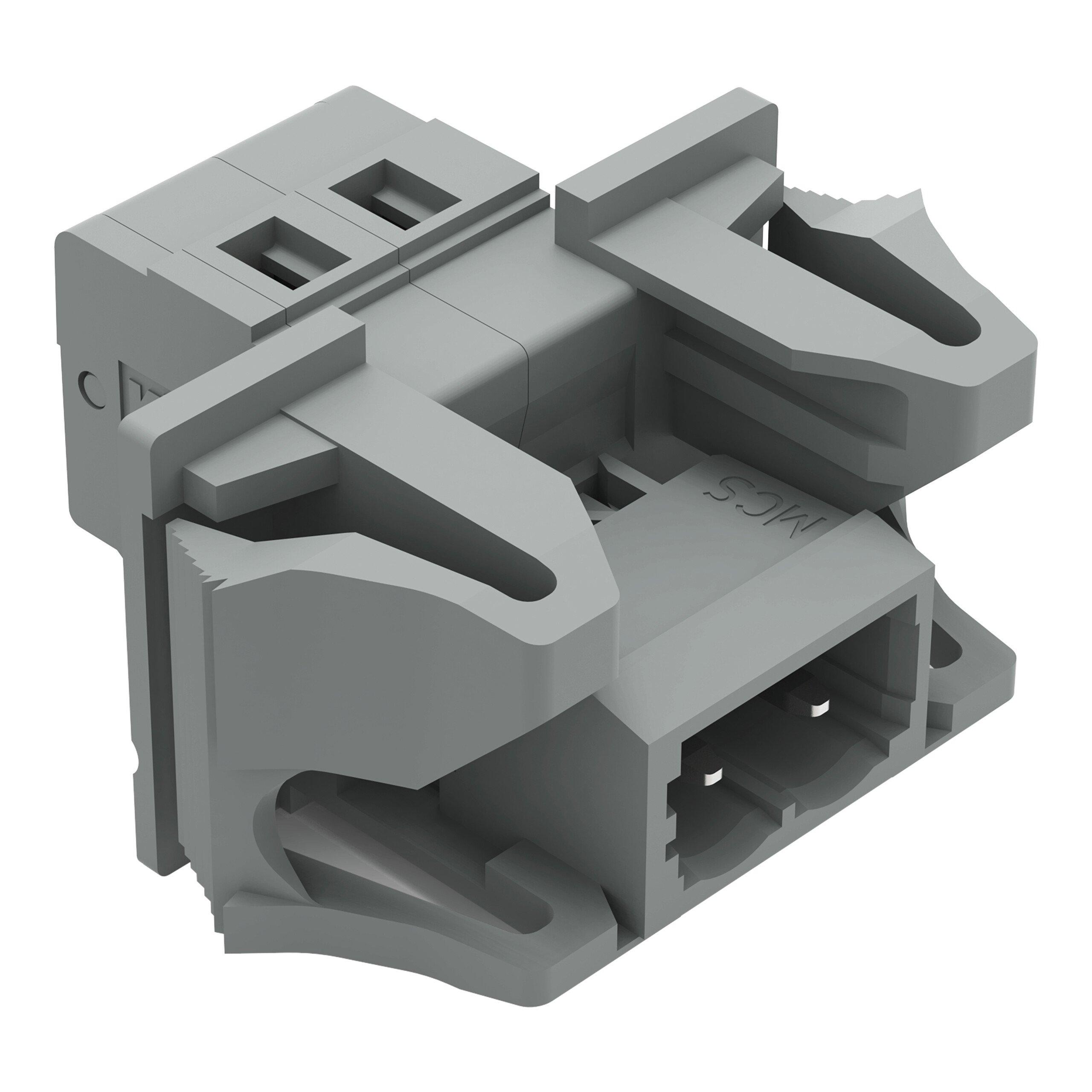

WAGO 231-602/114-000 1-conductor male connector
Part Number # 231-602/114-000
SKU # 2333806
$4.02 / Each
Typical price:$4.36 / Each
Wago 231-602/114-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-602/114-000 |
| SKU #: | 2333806 |
| Amperage Rating: | 12 A |
| Dimensions: | 0.689 in H x 1.22 in W x 1.083 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Connector (connection type): | For conductor |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 27.5 mm / 1.083 inch |
| Height: | 17.5 mm / 0.689 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | Feed Through, Snap-in || Feed-through mounting |
| Number of connection types: | 1 |
| Rated current: | 0 |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 5.740 g |
| Width: | 31 mm / 1.22 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04050821216001 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.02 / Each
Typical price:$4.36 / Each
Quantity:
WAGO 231-602/114-000 1-conductor male connector
Brand: Wago
Part Number: 231-602/114-000
Additional Description: WAGO-231-602/114-000 1-CONDUCTOR MALE CONNECTOR; GRAY 51239173
Catalog Description: 1-conductor male connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 2-pole; Snap-in flange; 2,50 mm²; gray
231-602/114-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Versions available with snap-in mounting feet or flanges for panel or through-panel mounting
- With coding fingers
231-602/114-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2333806Part Number #231-602/114-000UNSPSC39121459UPC04050821216001
