Brand: Wago
WAGO 231-605/114-000 1-conductor male connector
Image Disclaimers Message
Brand: Wago

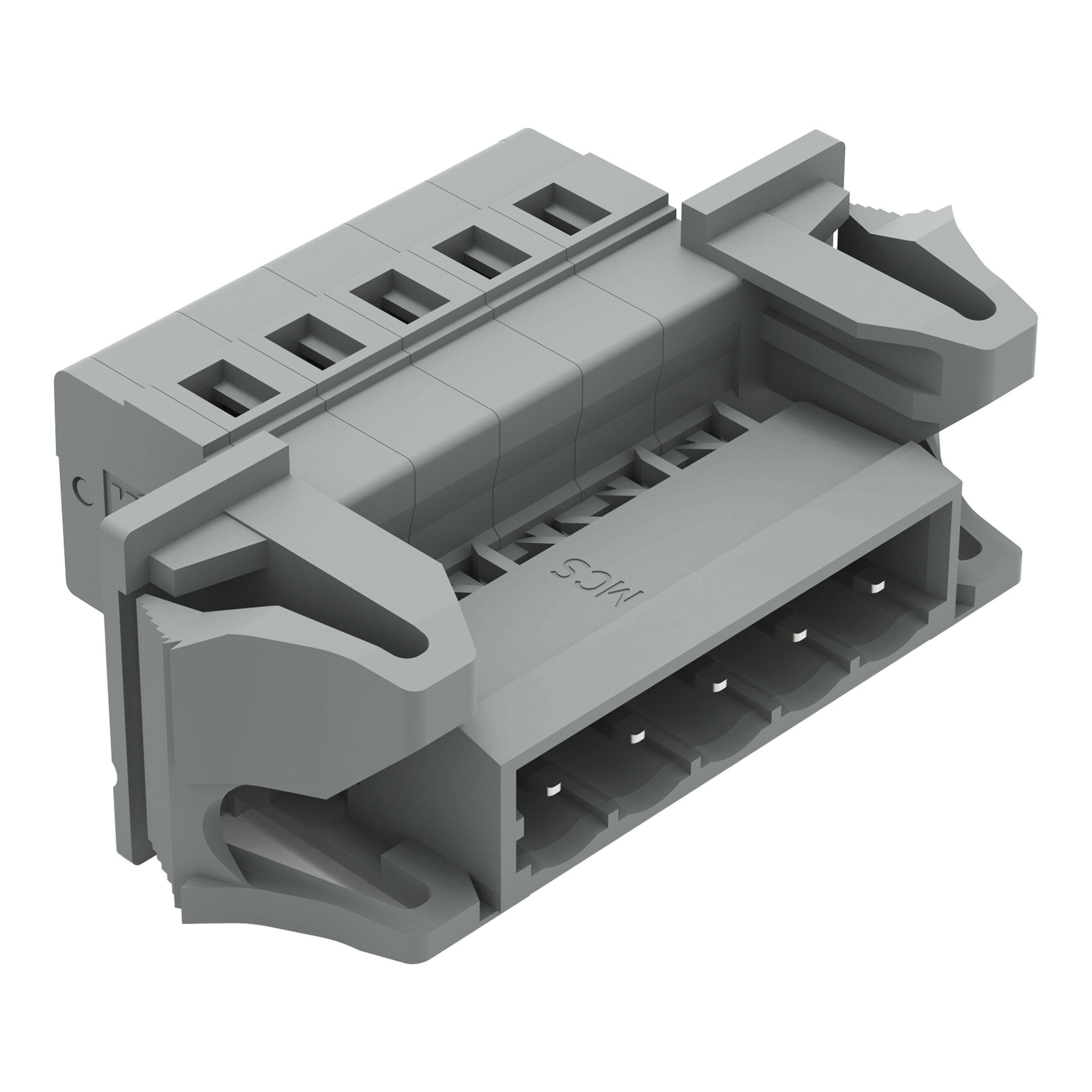

WAGO 231-605/114-000 1-conductor male connector
Brand: Wago
WAGO 231-605/114-000 1-conductor male connector
Part #:231-605/114-000
SKU #: 2365788
$5.61/EA
Key Features
Part #:231-605/114-000
SKU #: 2365788
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
$5.61/EA
Specifications
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Electrolytic copper (ECu)
Contact type (pluggable connector): Male connector/plug
Country of origin: DE
Depth: 27.5 mm / 1.083 inch
Height: 17.5 mm / 0.689 inch
Insulation material: Polyamide (PA66)
Mounting type: Snap-in || Feed-through mounting
Number of connection types: 1
Rated current: 0
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 5
Weight: 9.860 g
Width: 46 mm / 1.811 inch
UNSPSC: 39121459
UPC: 04050821216032
WAGO 231-605/114-000 1-conductor male connector
Additional Description: WAGO-231-605/114-000 1-CONDUCTOR MALE CONNECTOR; GRAY 51239176
Catalog Description: 1-conductor male connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 5-pole; Snap-in flange; 2,50 mm²; gray
