231-612

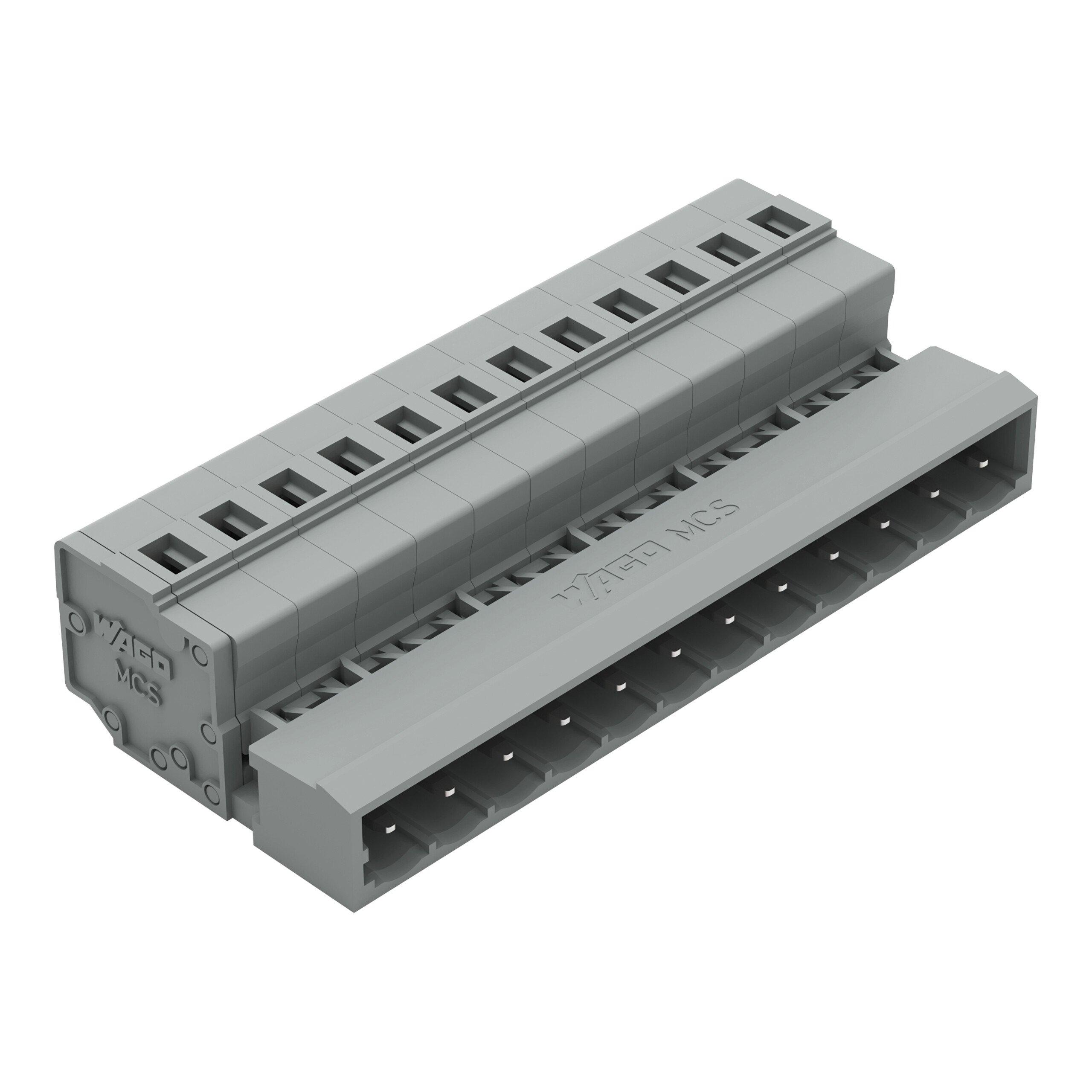

WAGO 231-612 1-conductor male connector
Part Number # 231-612
SKU # 2316723
Wago 231-612 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-612 |
| SKU #: | 2316723 |
| Amperage Rating: | 12 A |
| Dimensions: | 0.563 in H x 2.488 in W x 1.083 in D, 0.563�in H x 2.488�in W x 1.083�in D |
| Number of Poles: | 12 |
| Series: | 231 |
| Spacing: | 5 mm |
| Temperature Rating (Degrees F): | -60 to +100 deg C |
| Terminal Type: | Cage |
| Type: | Pin Spacing |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Male Connector |
| Connector (connection type): | For conductor |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 27.5 mm / 1.083 inch |
| Height: | 14.3 mm / 0.563 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide (PA66) |
| Mounting type: | DIN Rail |
| Number of connection types: | 1 |
| Rated current: | 0 |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 12 |
| Weight: | 18.040 g |
| Width: | 63.2 mm / 2.488 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918258302 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 231-612 1-conductor male connector
Brand: Wago
Part Number: 231-612
WAGO, 231-612, Male Connector, Pin Spacing, Series: 231, 320 V, 12 A, 4 kV Power, 12 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, Cage Terminal, 5 | mm Spacing, DIN Rail Mounting, Male Connector Connection, -60 to +100 deg C, Polyamide (PA66), Gray, 0.563 in H x 2.488 in W x 1.083 in D Dimensions
Additional Description: WAGO-231-612 (D) 1-CONDUCTOR MALE CONNECTOR; 2.5 MM ; PIN SPACING 5 MM; 12-POLE; 2,50 MM ; GRAY 51110824
Catalog Description: 1-conductor male connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 12-pole; 2,50 mm²; gray
231-612 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- For wire-to-wire and board-to-wire connections
- Versions available with snap-in mounting feet or flanges for panel or through-panel mounting
- With coding fingers
231-612 Standards
RoHS CompliantSKU #2316723Part Number #231-612UNSPSC39121459UPC04044918258302
