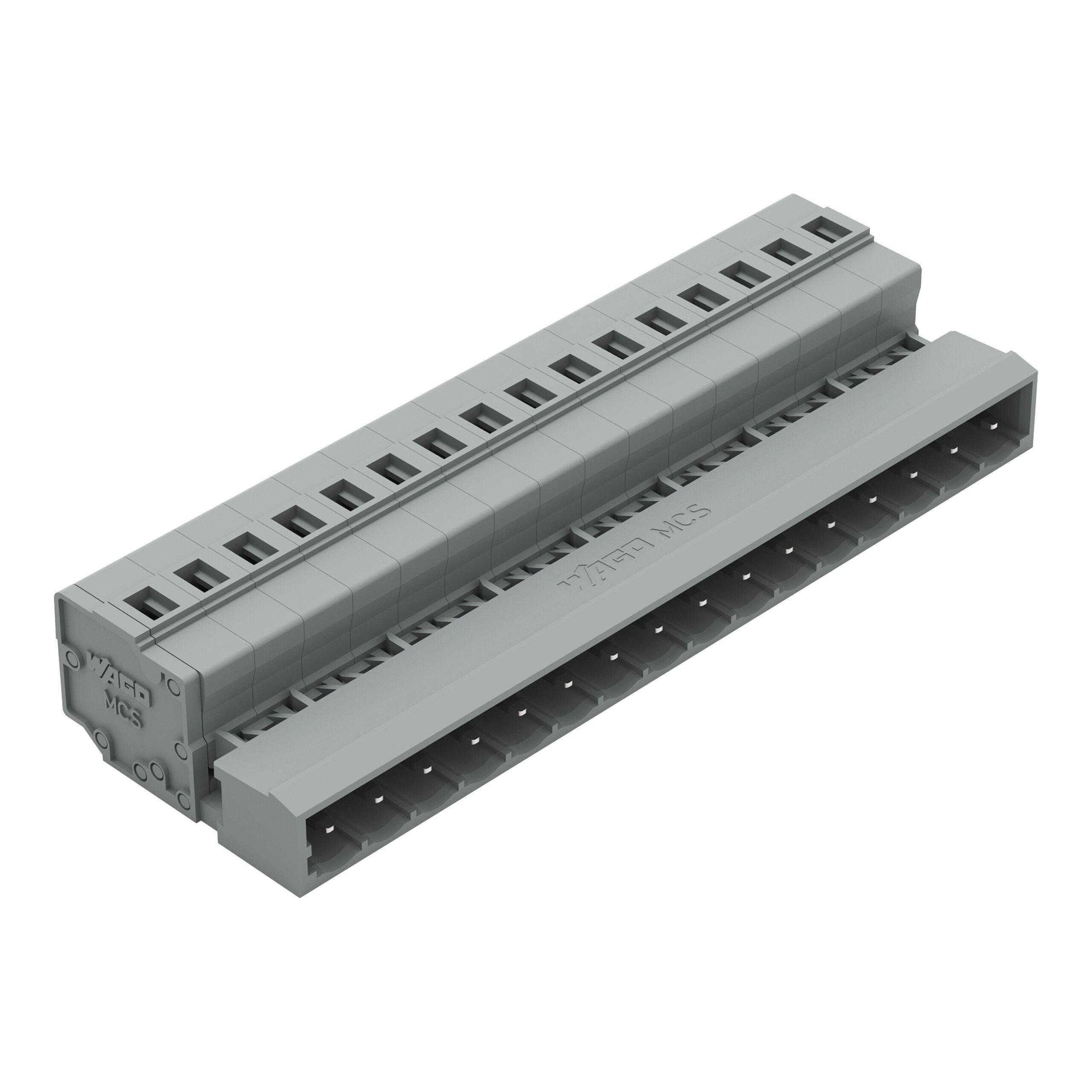

WAGO 231-616 1-conductor male connector

2201411 MFG #: 231-616
$11.62 / EA
Usually Ships within 5-8 Days
  • Actuation type: Operating tool
  • Approvals per: CSA, UL 1059
  • Color: Gray
  • Conductor entry direction to mating direction: 0 °
  • Connection technology: CAGE CLAMP®
  • Connector (connection type): For conductor
  • Contact material: Electrolytic copper (ECu)
  • Contact type (pluggable connector): Male connector/plug
  • Country of origin: DE
  • Depth: 27.5 mm / 1.083 inch
  • Height: 14.3 mm / 0.563 inch
  • Insulation material: Polyamide (PA66)
  • Number of connection types: 1
  • Rated current: 0
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Total number of connection points: 16
  • Weight: 23.940 g
  • Width: 83.2 mm / 3.276 inch

WAGO 231-616 1-conductor male connector

Additional Description: WAGO-231-616 1-CONDUCTOR MALE CONNECTOR; 2.5 MM ; PIN SPACING 5 MM; 16-POLE; 2,50 MM ; GRAY 51110871
