Brand: Wago

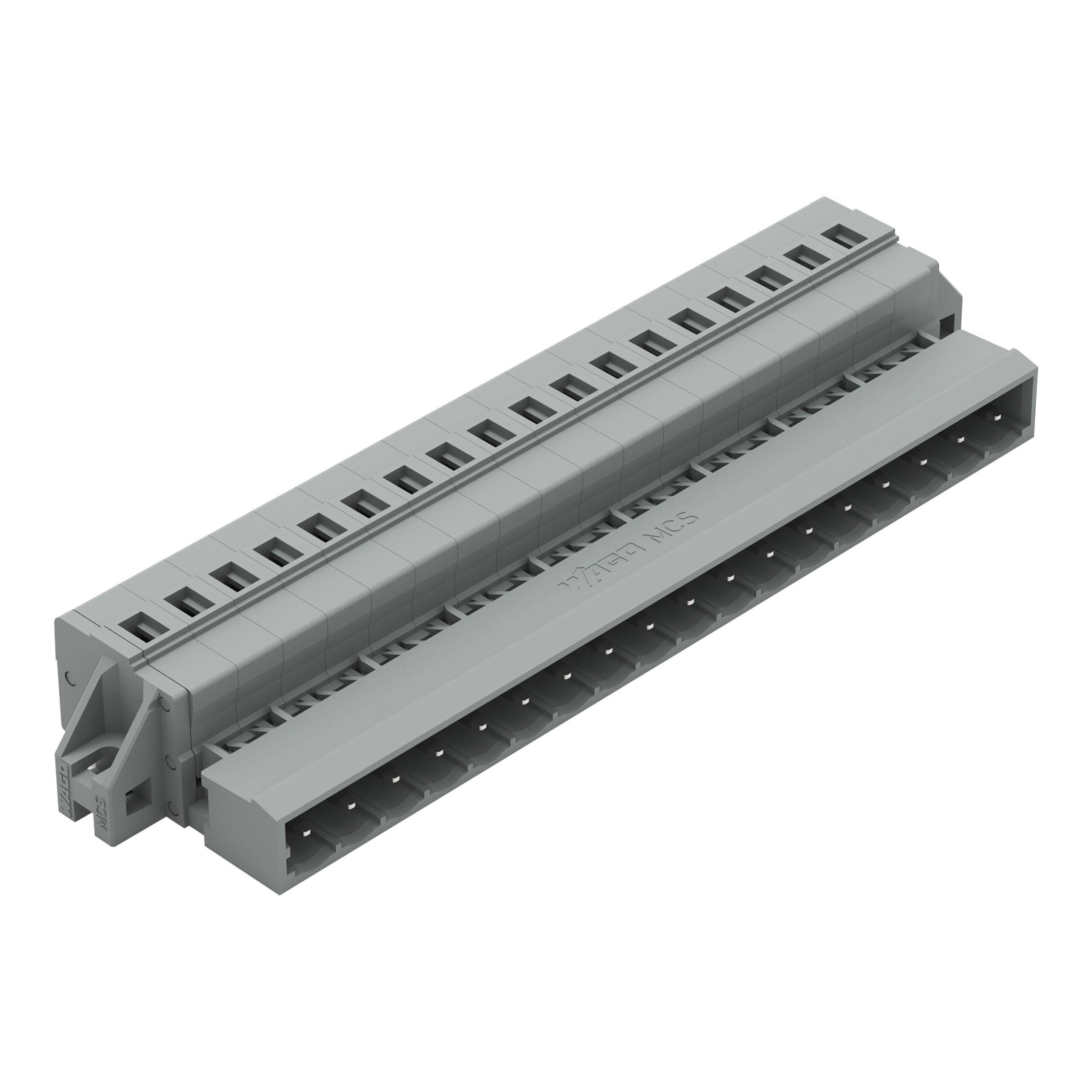

WAGO 231-618/019-000 1-conductor male connector
Image Disclaimers Message
Brand: Wago
WAGO 231-618/019-000 1-conductor male connector
Brand: Wago
WAGO 231-618/019-000 1-conductor male connector
Part #:231-618/019-000
SKU #: 2359186
$14.58/EA
Key Features
Part #:231-618/019-000
SKU #: 2359186
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
$14.58/EA
Specifications
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Electrolytic copper (ECu)
Contact type (pluggable connector): Male connector/plug
Country of origin: DE
Depth: 27.5 mm / 1.083 inch
Height: 14.3 mm / 0.563 inch
Insulation material: Polyamide (PA66)
Mounting type: Mounting flange || Feed-through mounting || Panel mounting
Number of connection types: 1
Rated current: 0
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 18
Weight: 28.440 g
Width: 104.8 mm / 4.126 inch
UNSPSC: 39121459
UPC: 04044918259040
WAGO 231-618/019-000 1-conductor male connector
Additional Description: WAGO-231-618/019-000 1-CONDUCTOR MALE CONNECTOR; CLAMPING COLLAR; 2.5 MM ; PIN SPACING 5 MM; 18-POLE; 2,50 MM ; GRAY 51110898
Catalog Description: 1-conductor male connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 18-pole; clamping collar; 2,50 mm²; gray
